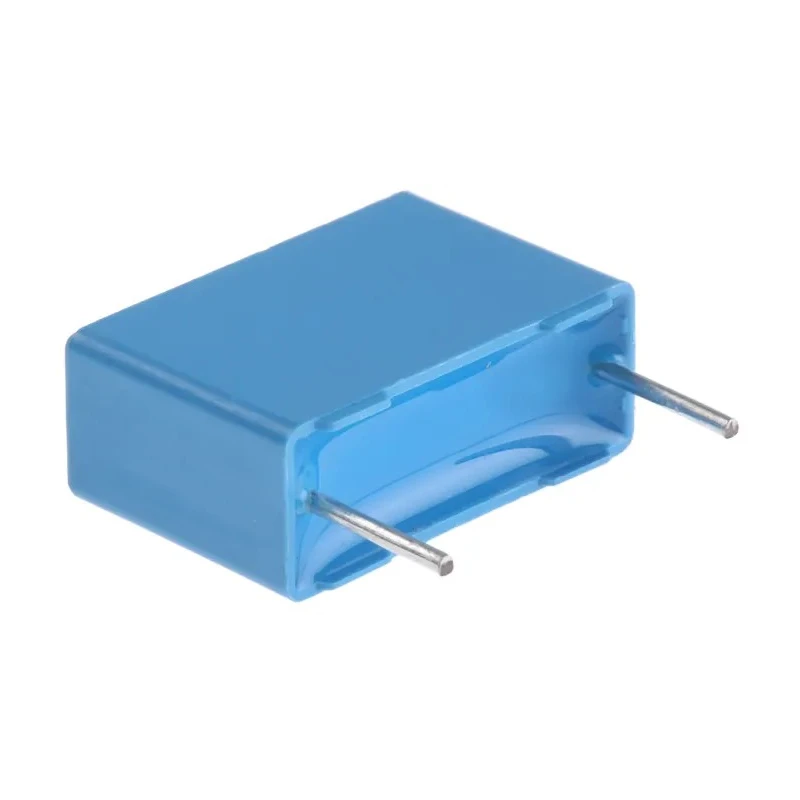

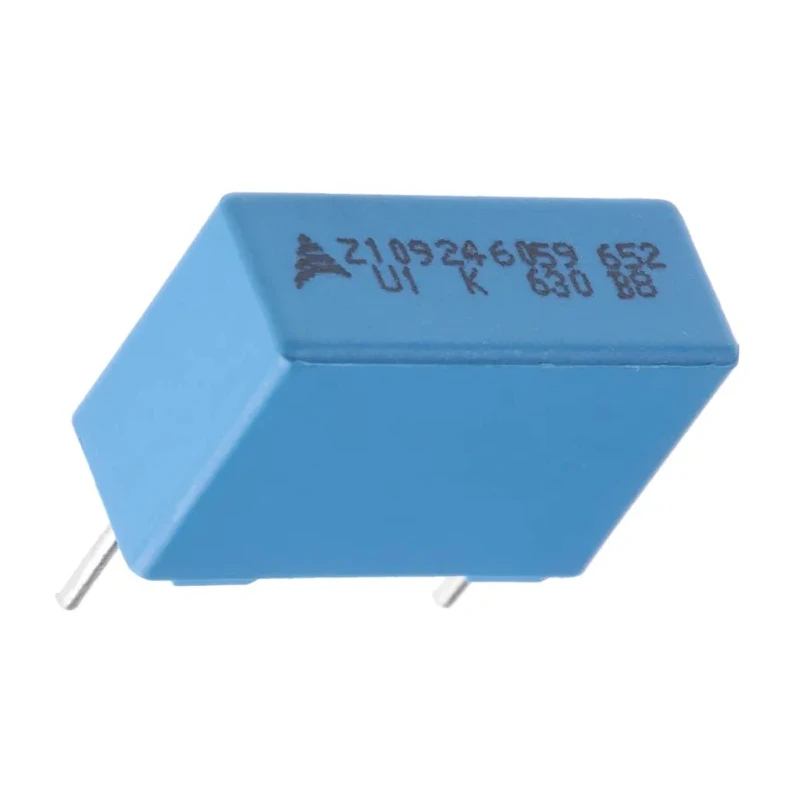

TDK Film Capacitor 100nF 250V AC 630V DC Through Hole B32652A6104K000

TDK B32652A6104K000 is a high-quality film capacitor engineered for demanding electronic circuits, offering a capacitance of 100nF and rated for both 250V AC and 630V DC. Designed with an internal series connection and wound capacitor technology, it delivers reliable performance in high pulse applications.

This capacitor features a through hole configuration with a lead pitch of 15mm, making it convenient for PCB insertion and ensuring robust mechanical and electrical connections. Its plastic case complies with UL 94 V-0 standards for flame retardancy and is sealed with epoxy resin for enhanced environmental protection and electrical insulation.

The B32652 series is well suited for use in TV S-correction, flyback circuits, electronic ballast circuits, and other applications requiring stable capacitance and high pulse reliability. Its compact form factor (18mm length, 7mm width, 12.5mm height) makes it ideal for space-constrained layouts and advanced electronics design.

With a pin count of two, lead diameter of 0.8mm, and capability to operate at temperatures up to 100°C, the component supports a wide range of industrial, automotive (AEC-Q200 Rev D compliant), and commercial electrical requirements. UL and RoHS certifications assure compliance with global safety and environmental standards.

Encapsulation in a flame-retardant plastic case and epoxy resin sealing adds further safety and durability, guarding against moisture, dust, and mechanical stress.

Film capacitors like this model are essential in applications such as power supplies, signal filtering, energy storage, and timing circuits in manufacturing, laboratory, automation, and consumer electronics sectors.

Provides 100nF capacitance rated for 250V AC and 630V DC operation. Through hole design enables secure PCB mounting and reliable electrical contact. Internal series connection and wound capacitor technology enhances pulse strength and performance.

Encapsulated in flame retardant plastic case with epoxy resin sealing for environmental protection. Suitable for TV S-correction, flyback circuits, and electronic ballasts. High contact reliability and small form factor with lead pitch of 15mm.

Meets AEC-Q200 Rev D automotive standard and UL/RoHS approvals for safety and compliance. Maximum operating temperature up to 100°C supports industrial and automotive use cases. Explore more TDK Film Capacitors and passive components in the EnvMart electronics catalog.
