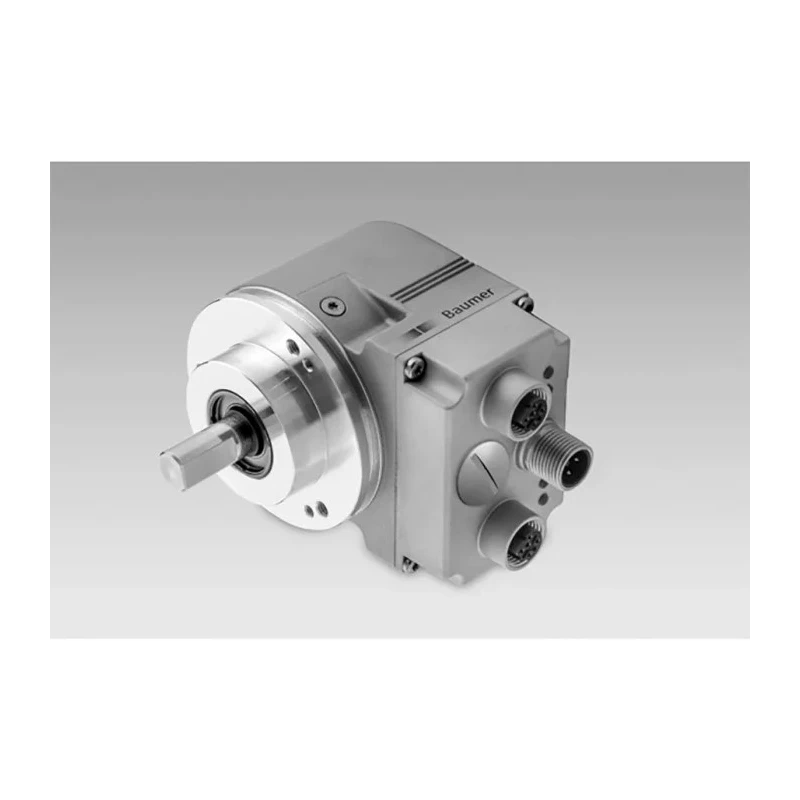

Baumer Optical Absolute Encoder 30V DC Analogue Signal Solid Shaft 10 mm Clamping Flange Mount EAL580

Baumer EAL580 is an optical absolute encoder designed for high precision motion control applications. It operates on a 30V DC supply and delivers analogue output signals. The solid shaft encoder with a 10 mm diameter shaft is engineered for robust industrial use, mounted via a clamping flange for ease of installation.

This absolute encoder operates reliably across a wide temperature range from -40°C to 85°C and meets IP65 ingress protection requirements, enabling it to function effectively in demanding environments commonly found in automation, manufacturing, and process control industries.

The encoder supports a maximum speed of 6000 revolutions per minute, lending itself well to applications requiring fast and accurate rotational feedback. It features an M12 flange connector and integrates EtherCAT interface technology for seamless connectivity and high-speed data transfer in industrial networks.

The Baumer EAL580 offers exceptional resolution with 18 bit single turn and 16 bit multi-turn capabilities, allowing precise measurement in complex machinery. The device complies with UL standards, emphasizing robust safety and certification standards, with the product manufactured in Germany to deliver premium quality.

Overall dimensions of 90.9 mm height, 58 mm width, and 59 mm depth make this encoder compact and suitable for installations with space constraints. Utilizes advanced Optical Encoder technology for precise position sensing.

Supports maximum rotational speed of 6000 rpm ensuring fast response. This clamping flange mount encoder features an M12 flange connector for reliable interface. Equivalent protection with IP65 rating makes it suitable for harsh environments.

Operating temperature range from -40°C to 85°C allows wide industrial use. High resolution with single turn 18 bit and multi-turn 16 bit accuracy. Equipped with EtherCAT interface for real-time communication and integration.

Compact dimensions with 90.9 mm height, 58 mm width and 59 mm depth for easy installation. Constructed and certified to UL standards assuring quality and safety. Manufactured in Germany ensuring premium quality standards.

This encoder is ideal for applications in industrial automation, robotics, manufacturing systems, and motion control where precision, reliability, and durability are critical factors. Browse more Baumer encoders and motion control sensors on EnvMart for compatible accessories and solutions.
