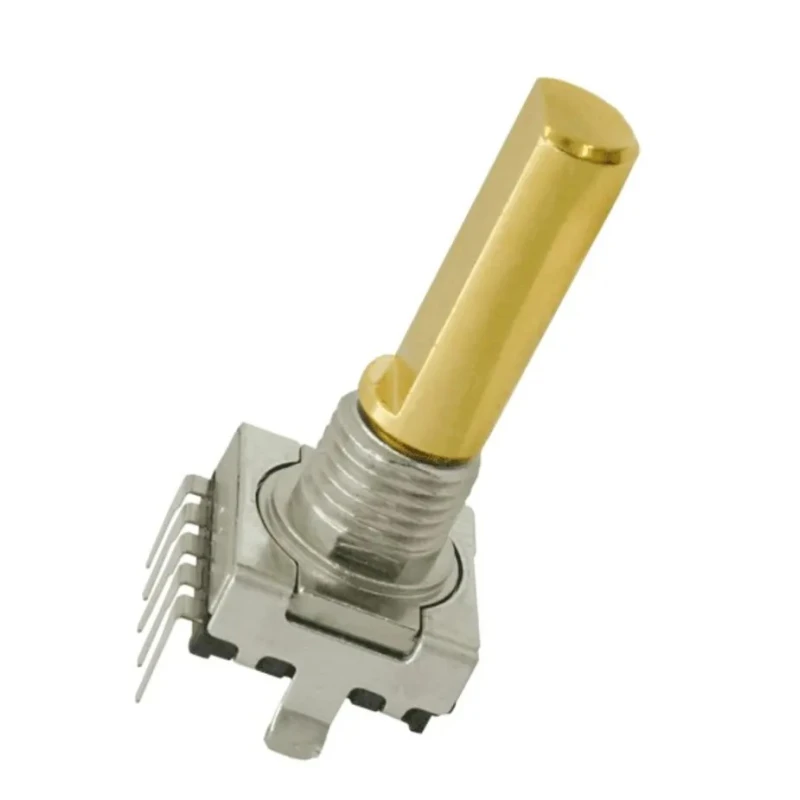

Elma 16 ppr Pulse 2 Bit Quadrature Mechanical Rotary Encoder with 6 mm Slotted Shaft E33-VT652-M01T

The Elma E33-VT652-M01T is a mechanical rotary encoder designed for precise angular position sensing in industrial, automation, and sensor applications. It features a resolution of 16 pulses per revolution (ppr) and outputs a 2 bit quadrature digital square wave signal for accurate directional decoding.

The encoder's 6 mm slotted shaft allows for secure mechanical interfacing and efficient torque transmission. It has a maximum operating speed of 60 rpm and is rated for up to 1,000,000 revolutions, ensuring long service life in demanding environments.

This model includes a pushbutton mechanism triggered with a 6N push force, ideal for user input or control functions. Its sturdy metal housing combined with gold plated contacts enhances electrical reliability and mechanical robustness.

Environmental protection meets IP68 standards both on the shaft and front panel, providing excellent resistance to dust and water ingress, suitable for harsh industrial conditions. The device operates reliably across temperatures ranging from -40 to +85 degrees Celsius.

Termination is via pin connectors enabling easy integration into electronic circuits. The product is compliant with RoHS directives, making it environmentally friendly. This encoder is widely used in industrial automation, robotics, laboratory instruments, manufacturing equipment, and HVAC systems requiring precise rotary position feedback.

This encoder produces a 2 bit quadrature digital square wave signal. The 6 mm slotted shaft facilitates easy mechanical coupling. Operating speed is rated up to 60 rpm ensuring reliable performance. The encoder includes a pushbutton function activated with 6N push force.

It features robust metal housing and gold plated contacts for durability. Environmental sealing to IP68 protects both shaft and front panel from dust and water ingress. Suitable for industrial applications requiring up to 1,000,000 rotational life cycles.

Operating temperature range spans from -40 to +85°C for versatile use. Pin termination style facilitates straightforward installation in electronic systems. Complies with RoHS standards ensuring environmental compliance.
