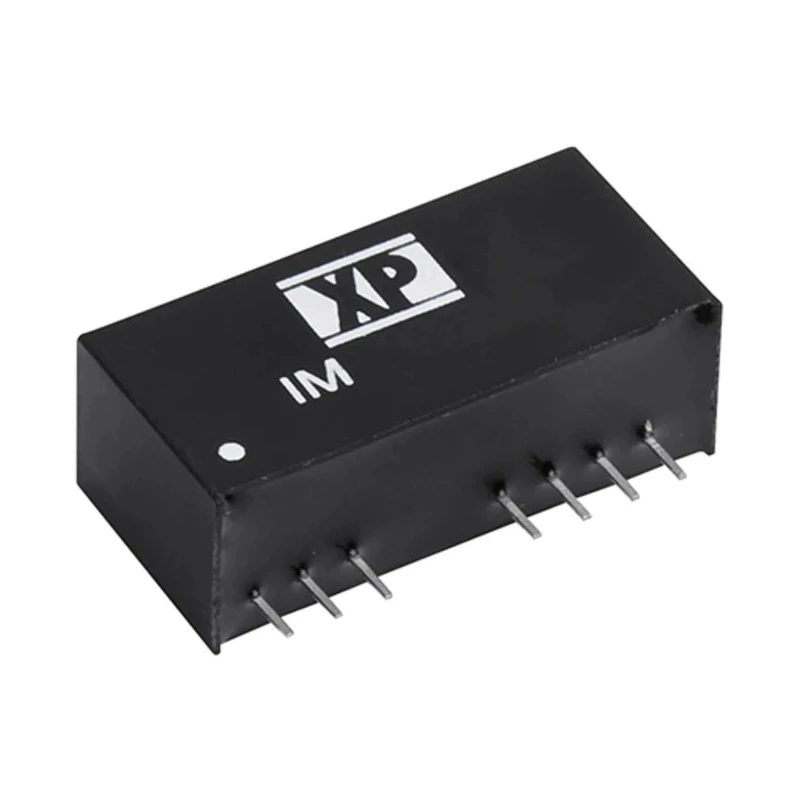

XP Power Isolated DC-DC Converter Dual Output 15V dc/ -15V dc 65mA 75V dc Input 18V Input 2W SIP Through Hole IM4815S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IM DC/DC Converter, 15V dc/ 65 mA, 75V dc |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 26mm |
| Model | IM4815S |
| Depth | 12.5mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | IM |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 65mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- This DC-DC converter features high efficiency of 84% for effective power transfer.
- The device operates reliably in a temperature range of -40°C to 100°C.
- Provides 1500V dc isolation for safety and noise reduction in sensitive circuits.
- Designed for industrial and electronic power supply applications with continuous short circuit protection.
- The component has a compact form factor with dimensions 26mm length, 12.5mm depth, and 9.2mm width.
- Ideal for laboratory, industrial, and manufacturing electronic power conversion uses.
- Features remote on/off control to manage power consumption efficiently.
Product Description
XP Power's IM4815S is a highly reliable isolated DC-DC converter designed to deliver dual regulated outputs of 15V dc and -15V dc at 65mA current with a total maximum power output of 2 watts. The device supports a wide input voltage range from 18V minimum to 75V maximum DC input voltage, providing flexibility for various electronic applications. The IM4815S features a robust SIP through-hole package measuring 26mm in length, 12.5mm in depth, and 9.2mm in width, making it compact and suitable for space-constrained power supply designs.
Operating efficiently at 84%, this converter incorporates a 4:1 input ratio and provides 1500 V DC isolation voltage to ensure electrical safety and reduce interference in industrial and laboratory environments. It is rated to perform continuously over a temperature range from -40°C to 100°C, allowing usage in demanding environmental conditions.
The IM4815S supports remote on/off functionality, enabling intelligent power management and energy saving in complex electronic systems. It also offers continuous short circuit protection, enhancing system reliability and longevity.
This DC-DC converter is ideally used in industrial automation, manufacturing equipment, power conditioning, and specialized laboratory instrumentation where stable and isolated power supplies are critical.
High efficiency of 84% enables effective power conversion and minimal losses. Wide thermal operating range from -40°C to +100°C suits harsh environments. Isolated dual outputs prevent cross-circuit interference for sensitive electronics.
Compact SIP package ensures easy PCB mounting and integration. Continuous short circuit protection enhances durability and safety. Remote on/off control optimizes power consumption in system designs.
Choose XP Power's IM series for dependable, industry-standard DC-DC converters meeting demanding electrical specifications. Explore more in our Electronics & Electricals category for high-quality power management components.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2 watts.
It supports a wide input voltage range from 18V minimum to 75V maximum DC input voltage.
The dimensions are 26mm in length, 12.5mm in depth, and 9.2mm in width.
The efficiency rating of this converter is 84%.
This model provides two outputs: 15V dc and -15V dc.
The isolation voltage is 1500V dc, ensuring safety and reducing interference.
It operates reliably within a temperature range of -40°C to 100°C.
The IM4815S uses a through-hole SIP mounting type.
Yes, it includes continuous short circuit protection to enhance system reliability.
The input ratio for this model is 4:1.
It is suitable for industrial automation, manufacturing equipment, power conditioning, and specialized laboratory instrumentation.
The MTBF for the IM4815S is rated at 1,200,000 hours.
