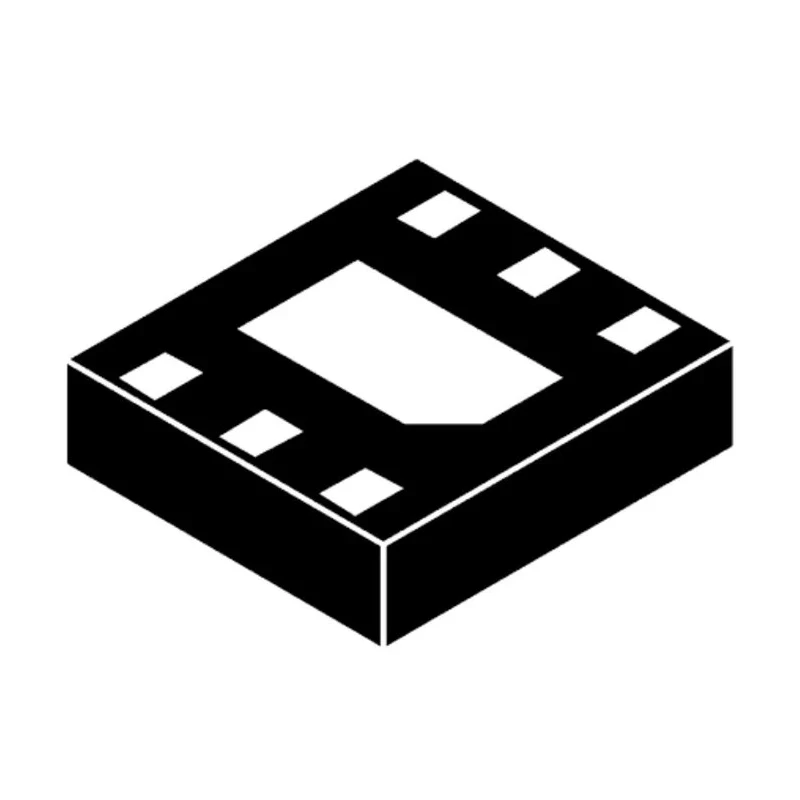

STMicroelectronics 5 Outputs Buck Converter 6V Output Voltage 1.5 A Output Current Surface Mount DFN Package ST1S06PUR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 5 Outputs Buck Converter 6V Output Voltage 1.5 A Output Current Surface Mount DFN Package ST1S06PUR

Name: STMicroelectronics 5 Outputs Buck Converter 6V Output Voltage 1.5 A Output Current Surface Mount DFN Package ST1S06PUR
Brand: STMicroelectronics
SKU: 135319
Price: 1.47 USD
Availability: InStock



Category DC-DC Converter Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Efficiency	90%
Length	3.1mm
Model	ST1S06PUR
Depth	1mm
Width	3.1mm
Mount Type	Surface
Series	ST1S06
Output Current	1.5A
Maximum Operating Temperature	150°C
Package Type	DFN
Load Regulation	0.3 %
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	6V
Line Regulation	0.3 %
Standards/Approvals	RoHS
Minimum Input Voltage	2.7V
Number of Pins	6
Output Voltage 1	6V

Key Features

This buck converter provides five output channels for versatile applications.
Features a surface mount DFN package with 6 pins, suitable for compact PCB layouts.
Operates efficiently with 90% efficiency, reducing power loss during conversion.
Supports input voltage range of 2.7 V to 6 V for flexible power sourcing.
Operates reliably in temperature range from -40°C to 150°C.
Line and load regulation both maintained at 0.3% for stable output voltage.
Compact dimensions of 3.1mm length, 3.1mm width, and 1mm depth enable space-saving installation.
Complies with RoHS standards ensuring environmentally safe materials and processes.

Product Description

STMicroelectronics ST1S06PUR is a high-performance 5 outputs buck converter designed as a surface mount device in a DFN package. It provides a steady 6V output voltage with an output current capability of 1.5 A. This switching regulator supports efficient DC-DC step-down conversion, making it ideal for use in electronic components, power supplies, and transformers.

The device operates over a wide input voltage range from 2.7 V up to a maximum of 6 V. With a maximum operating temperature of 150°C and a minimum of -40°C, it delivers reliable performance in diverse environmental conditions. The converter features high efficiency of 90%, minimizing heat generation and power loss during operation.

Its compact dimensions (3.1 mm length, 3.1 mm width, and 1 mm depth) and 6-pin DFN package allow for space-efficient PCB integration, suitable for modern electronic designs. Line and load regulation are tightly controlled at 0.3%, ensuring stable voltage outputs under varying load and supply conditions.

The ST1S06PUR complies with RoHS directives, underlining its environmentally responsible manufacturing. It is ideally suited for applications in industrial electronics, communication equipment, embedded systems, and other commercial electronics requiring multiple stable output voltages in a small form factor.

This buck converter offers five individual outputs with a 6V voltage output each. Supports input voltage range from 2.7V to 6V for flexible power design. Compact DFN surface mount package with six pins optimizes PCB space.

Achieves high efficiency of up to 90%, enhancing power savings. Operational temperature range from -40°C to 150°C ensures industrial reliability. Excellent line regulation (0.3%) maintains voltage consistency. Reliable load regulation (0.3%) provides stable output amid load changes.

RoHS compliant, meeting environmental standards for electronic devices. Explore more STMicroelectronics products and DC/DC converters at EnvMart for advanced power conversion solutions tailored to industrial and commercial applications.
