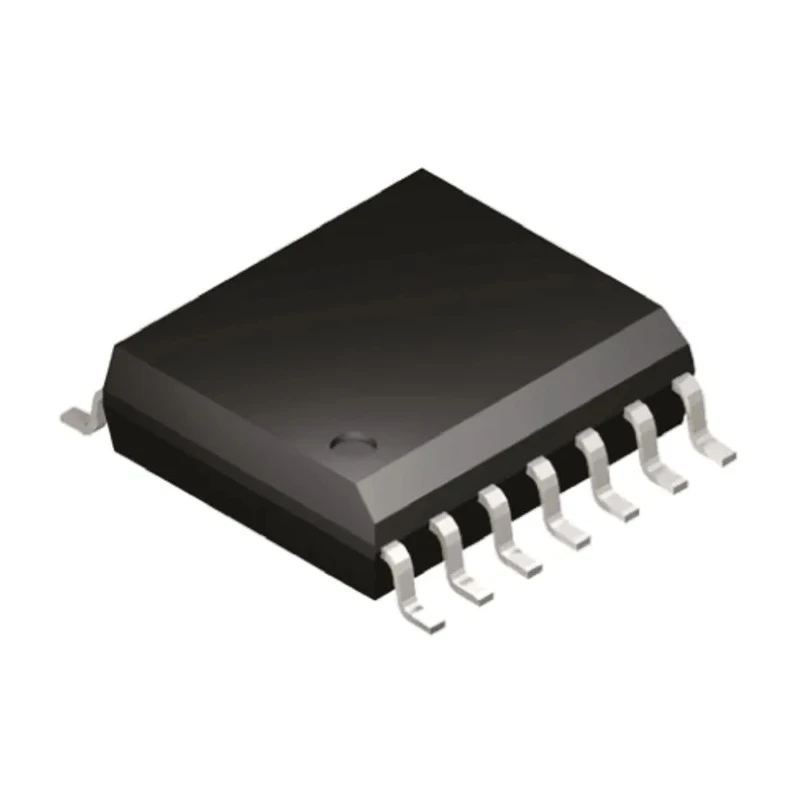

Texas Instruments Buck Converter, Surface Mount, 57V Output Voltage, 500mA Output Current LM2574HVM-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 57V |
| Brand | Texas Instruments |
| Efficiency | 72% |
| Length | 8.99mm |
| Model | LM2574HVM-ADJ/NOPB |
| Depth | 2.64mm |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | LM2574xx |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 150mV |
| Maximum Input Voltage | 60V |
| Standards/Approvals | JEDEC, RoHS |
| Minimum Input Voltage | 4V |
| Number of Pins | 14 |
| Output Voltage 1 | 57V |
| Output Voltage 2 | 5.27V |
Key Features
- Supports a wide input voltage range from 4V to 60V for versatile designs.
- Achieves 72% efficiency ensuring low power loss during operation.
- Contains 14 pins in a SOIC W package measuring 8.99mm by 7.5mm by 2.64mm.
- Designed to operate reliably between -40°C and 125°C for harsh environments.
- Features low ripple and noise output with 150mV typical noise voltage.
- Complies with JEDEC and RoHS standards for quality and environmental compliance.
- Includes one output channel suitable for single output power supply needs.
- Part of the LM2574xx series known for SIMPLE SWITCHER® step-down regulators.
Product Description
Texas Instruments LM2574HVM-ADJ/NOPB is a high-performance buck converter designed for surface mount applications. It provides stable 57V output voltage with 500mA maximum output current, suitable for efficient step-down power regulation in electronic devices.
This IC supports a broad input voltage range of 4V to 60V, making it flexible for various DC power supply designs. Operating efficiency reaches up to 72%, helping reduce thermal dissipation and improving energy savings.
The device features 14 pins housed in a compact SOIC W package with dimensions of 8.99mm length, 7.5mm width, and 2.64mm depth. It withstands harsh temperature environments from -40°C to 125°C, enabling reliable use in industrial and embedded systems.
Low ripple and noise levels of about 150mV ensure clean output power vital for sensitive electronics. The converter complies with JEDEC and RoHS standards, reflecting its quality and environmental friendliness.
Key applications include industrial automation, communication equipment, and embedded control systems requiring regulated DC supply. The SIMPLE SWITCHER® technology simplifies design efforts with integrated features tailored for DC/DC conversion efficiency and reliability.
Wide input voltage range from 4V to 60V. High conversion efficiency of 72%. Single output channel with 500mA current capacity. Compact SOIC W 14-pin package. Operating temperature range from -40°C to 125°C. Low ripple and noise output around 150mV.
JEDEC and RoHS compliant for quality assurance. Designed for surface mount assembly. Part of LM2574 series SIMPLE SWITCHER® regulators. Ideal for industrial and embedded power applications.
The product is packaged for easy insertion into electronic assembly lines, enhancing production efficiency. Explore more power solutions and DC/DC converters within EnvMart's Electronics & Electricals category for comprehensive industrial power management components.
