Digilent Data Acquisition 4-Channel 16 bit 100ksps USB MCC USB-234 6069-410-013

Free Delivery in India | Lowest Global Shipping Charges

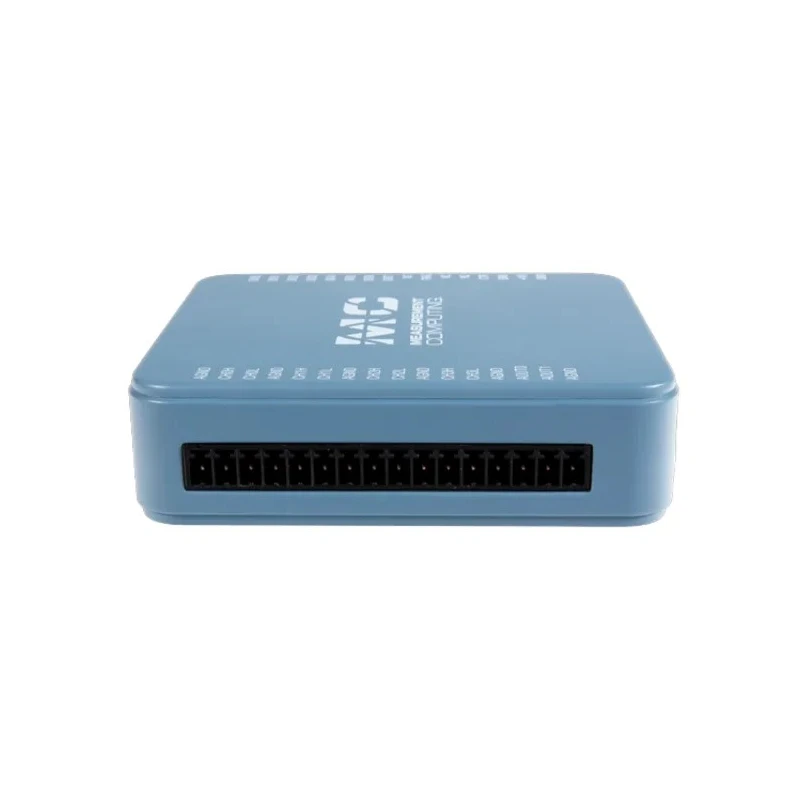

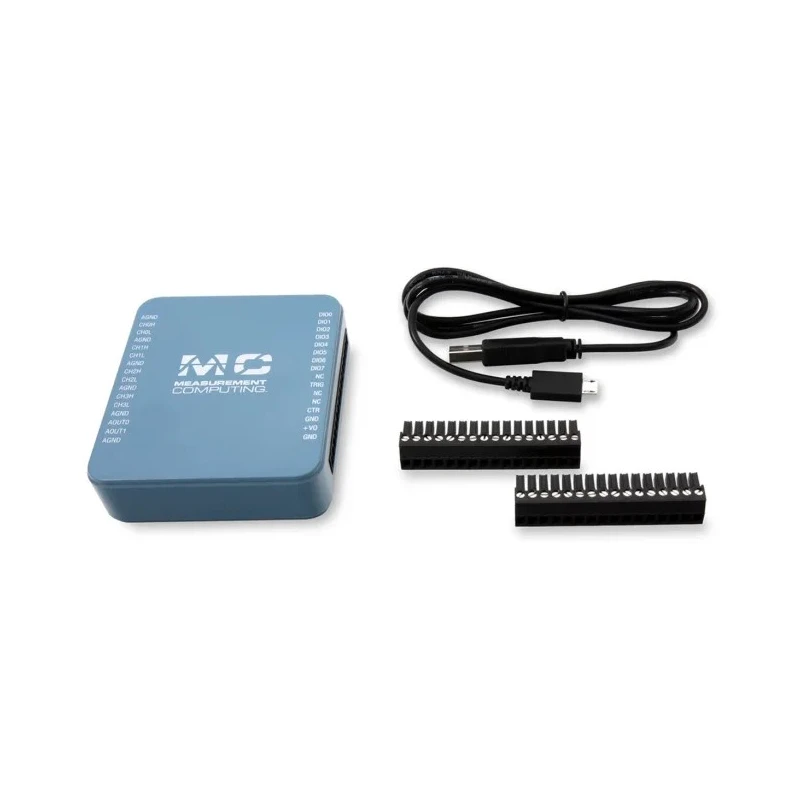

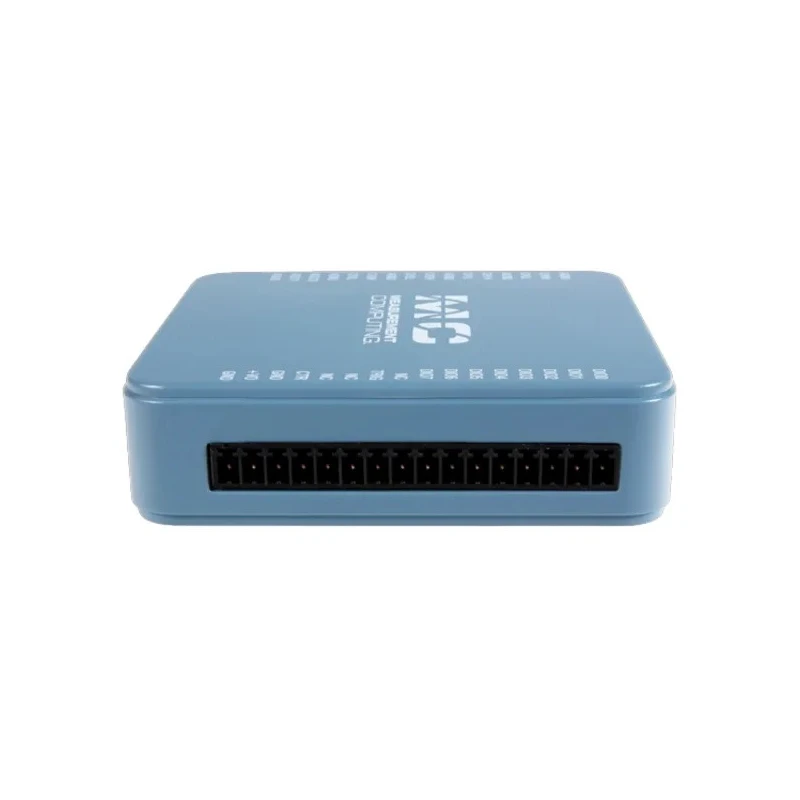

Digilent Data Acquisition 4-Channel 16 bit 100ksps USB MCC USB-234 6069-410-013

Name: Digilent Data Acquisition 4-Channel 16 bit 100ksps USB MCC USB-234 6069-410-013
Brand: Digilent
SKU: 177994
Price: 748.68 USD
Availability: InStock



Category Data Acquisition Brand Digilent Condition New

Specifications

Country of Origin	India
Resolution	16 bit
Brand	Digilent
Height	23.6mm
Length	93.2mm
Connectivity	USB
Gross Weight	105g
Width	86.2mm
Sampling rate	100ksps
Maximum Operating Temperature	45°C
Minimum Operating Temperature	0°C
Interfaces	USB-231 has a 50 kS/s sample rate
Number Of Channels	4

Key Features

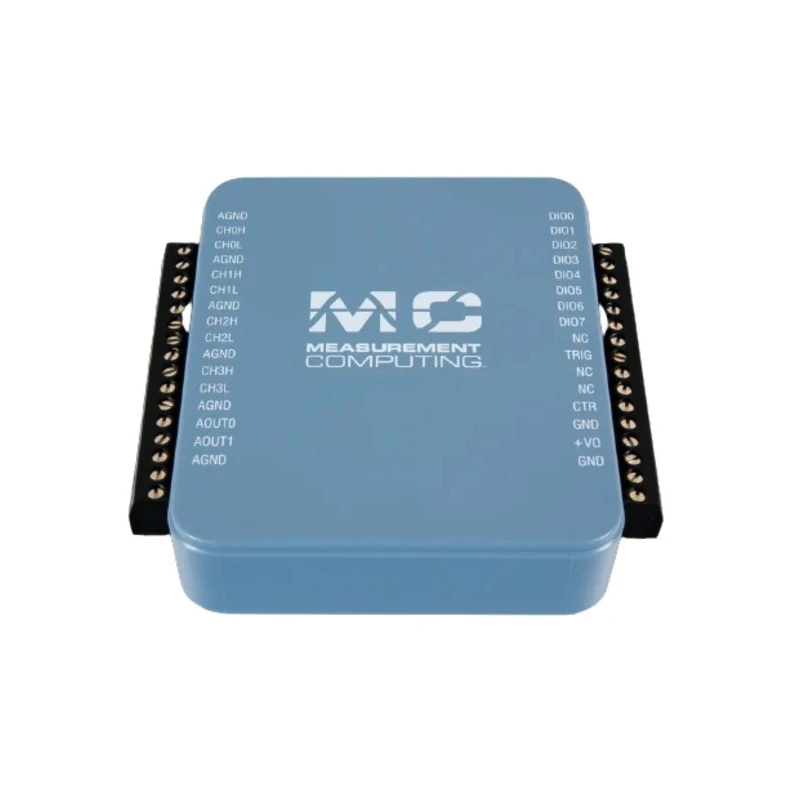

The device features 8 single-ended and 4 differential analog inputs.
It provides two 16-bit analog outputs for precise control.
Includes eight digital input/output lines for versatile interfacing.
Equipped with one 32-bit counter input for advanced measurements.

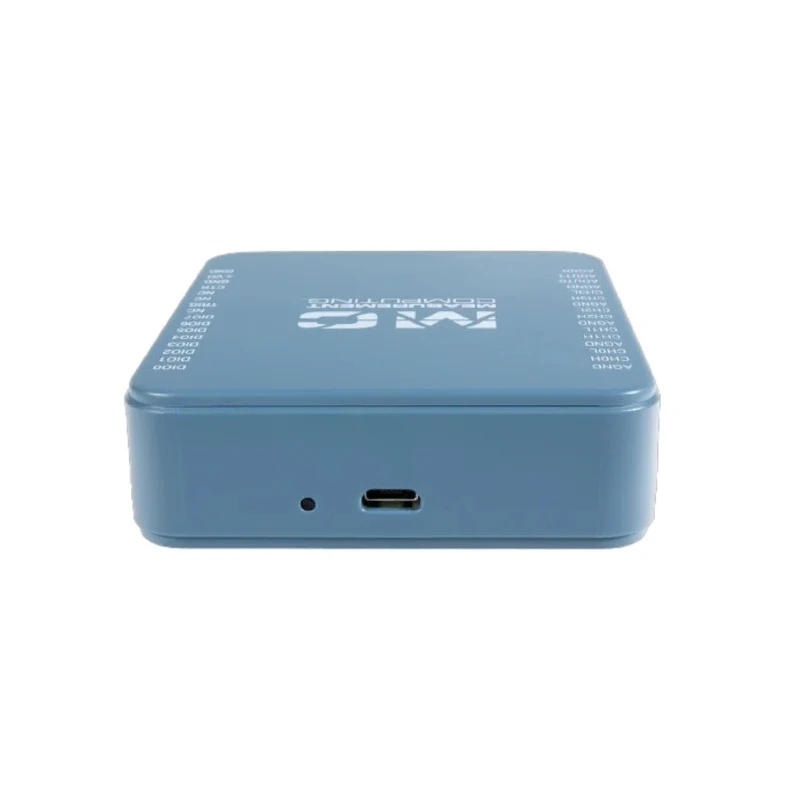

Powered via USB without requiring external power supply.
Operating temperature ranges from 0°C to 45°C for reliable performance.
Compact design with dimensions 93.2mm length, 86.2mm width, and 23.6mm height.
Weighs approximately 105 grams, making it suitable for portable applications.

Product Description

Digilent 6069-410-013 MCC USB-234 is a high precision data acquisition system that operates via USB interface, designed for industrial, laboratory, and test & measurement applications. It supports a sampling rate of 100 kilo samples per second (ksps) and a 16-bit resolution, enabling accurate analog signal capture across four channels.

This model features 8 single-ended and 4 differential analog inputs, along with two 16-bit analog outputs ensuring versatile signal processing capabilities. The unit includes eight digital input/output ports and a 32-bit counter input, making it adaptable for complex experimental setups.

The device is compact in size with overall dimensions 93.2 mm (L) x 86.2 mm (W) x 23.6 mm (H), and its lightweight 105 g construction allows for ease of transport and integration into various systems. It is USB powered, eliminating the need for an external power source, which enhances its convenience and portability in field or lab environments. Operational temperature range is from 0°C to 45°C, suitable for controlled indoor environments.

The device supports high-resolution 16-bit data acquisition for precise measurements. Four configurable analog input channels to capture multiple signals simultaneously. Two 16-bit analog outputs provide accurate analog signal generation.

Eight digital I/O ports enhance connectivity and control options. A 32-bit counter input expands functionality for timing and counting applications. Compact and lightweight design facilitates easy deployment. USB bus-powered operation simplifies setup with no external power needed.

This Digilent MCC USB-234 device is ideal for use in industrial instrumentation, research laboratories, data logging, and educational setups requiring precision data acquisition and control. Its broad interface options and high-speed operation make it suitable for complex instrumentation systems and automated test equipment configurations.

Explore this and other Data Acquisition systems in the Industrial Machines & Instruments section at EnvMart.
