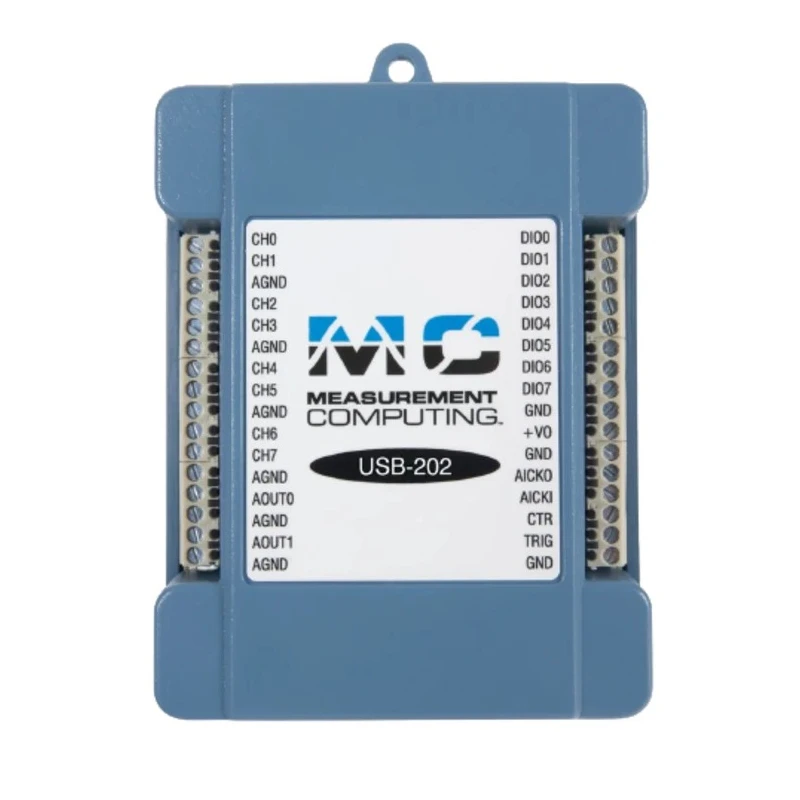

Digilent MCC USB-202 Data Acquisition 8-Channel USB 100 ksps 12 bit 6069-410-008
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Digilent |
| Height | 28.96mm |
| Length | 117.86mm |
| Connectivity | USB |
| Width | 82.8mm |
| Sampling rate | 100ksps |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB-202: has a 100 kS/s sample rate |
| Number Of Channels | 8 |
| USB-202 | has a 100 kS/s sample rate |
Key Features
- Features 8 analog input channels for versatile data acquisition.
- Operates over a temperature range of 0°C to 55°C.
- Compact dimensions of 117.86mm length, 82.8mm width, and 28.96mm height.
- Supports multiple programming interfaces including Visual C++, LabVIEW, MATLAB, and Python.
- Includes DAQami software for real-time data logging, visualization, and signal generation.
- USB powered with no external power supply required.
- Two analog outputs and eight digital I/O lines are also present.
- Equipped with one 32-bit event counter input with external pacer input/output capability.
Product Description
Digilent 6069-410-008 MCC USB-202 is an advanced data acquisition device designed for industrial, laboratory, and test & measurement applications. It features 8 analog input channels delivering 12-bit resolution and a 100 kilo-samples per second (ksps) sampling rate, ideal for capturing dynamic signals with precision.
The device connects via USB, drawing power directly from the USB port, eliminating the need for external power sources. Its compact form factor measuring 117.86mm in length, 82.8mm in width, and 28.96mm in height allows for easy integration into existing systems.
Included with the MCC USB-202 is the DAQami software, an out-of-the-box application for data logging, interactive visualization, and signal generation. Users may monitor data in real-time or analyze it post-acquisition with customizable displays.
This product supports a wide range of popular programming environments such as Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python, offering flexibility for varied user requirements.
Beyond analog inputs, the USB-202 provides two analog outputs, eight digital inputs and outputs, and one 32-bit event counter input that supports an external pacer input/output mode.
Operating temperature range is from 0°C to 55°C, making it suitable for diverse environments.
This device is ideal for applications in industrial automation, laboratory experiments, HVAC system monitoring, manufacturing quality control, and water treatment processes among others.
Features 8 analog input channels for versatile data acquisition. Operates over a temperature range of 0°C to 55°C. Compact dimensions of 117.86mm length, 82.8mm width, and 28.96mm height. Supports multiple programming interfaces including Visual C++, LabVIEW, MATLAB, and Python.
Includes DAQami software for real-time data logging, visualization, and signal generation. USB powered with no external power supply required. Two analog outputs and eight digital I/O lines are also present. Equipped with one 32-bit event counter input with external pacer input/output capability.
Explore the range of Data Acquisition instruments at EnvMart for trusted industrial and laboratory products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 100 kilo-samples per second (ksps).
It features 8 analog input channels for versatile data acquisition.
The resolution of this unit is 12 bits.
This model supports multiple programming interfaces including Visual C++, LabVIEW, MATLAB, and Python.
The device has compact dimensions of 117.86mm in length, 82.8mm in width, and 28.96mm in height.
The operating temperature range is from 0°C to 55°C.
No, it is USB powered and does not require an external power supply.
In addition to the 8 analog inputs, it provides two analog outputs and eight digital I/O lines.
Yes, it includes DAQami software for real-time data logging, visualization, and signal generation.
It is equipped with one 32-bit event counter input with external pacer input/output capability.
The country of origin for this model is India.
It is suitable for applications in industrial automation, laboratory experiments, HVAC system monitoring, manufacturing quality control, and water treatment processes.
