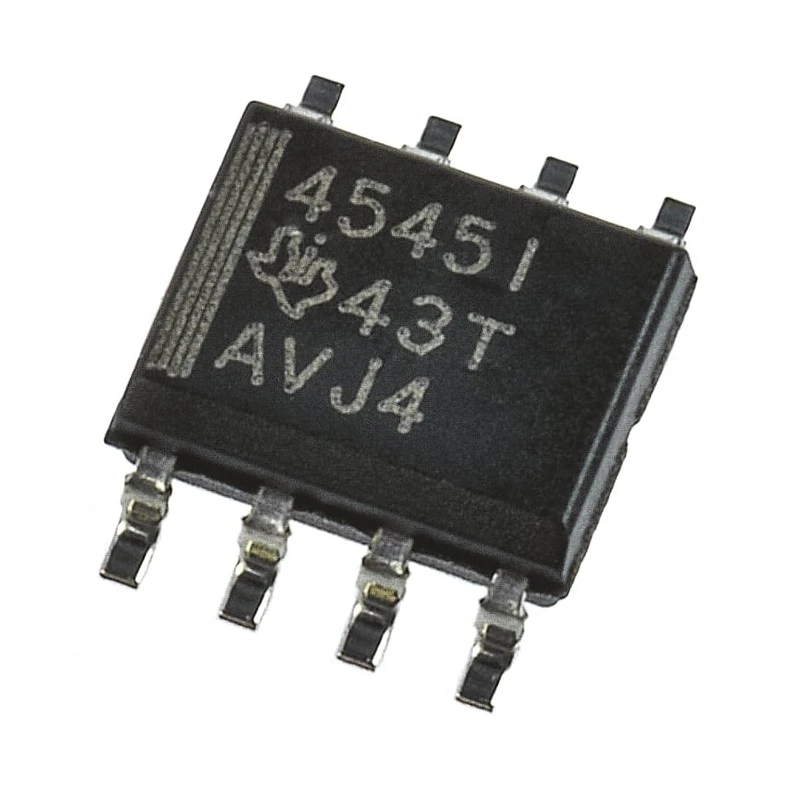

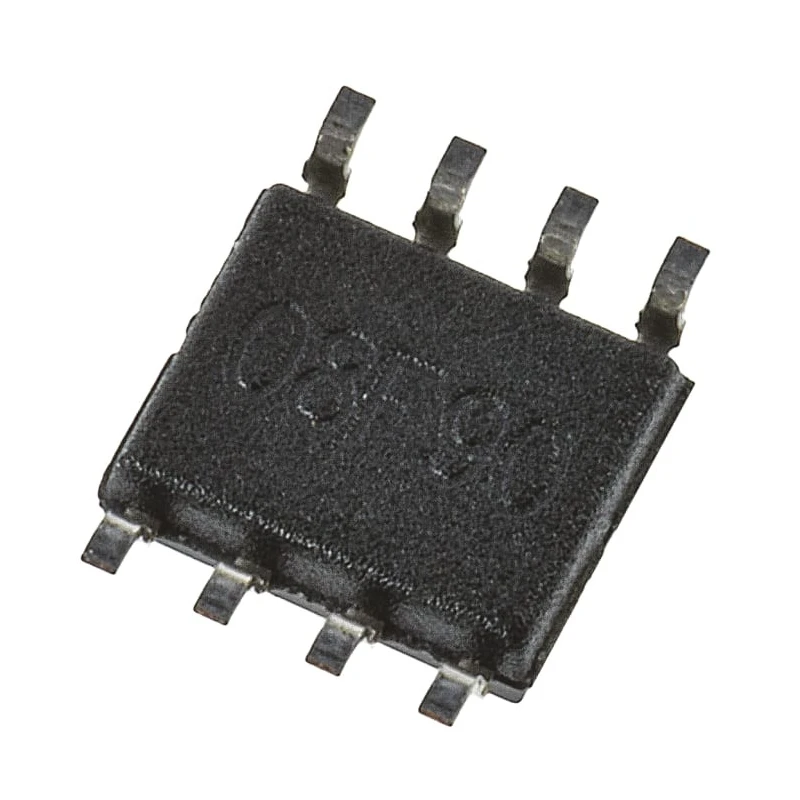

Texas Instruments 1 16 bit ADC 200 ksps 8-Pin SOIC Analogue to Digital Converter TLC4545ID

Texas Instruments TLC4545ID is a high-precision 16 bit analogue to digital converter (ADC) designed for efficient single-channel voltage input measurement at a maximum sampling rate of 200 ksps. Packaged in an 8-pin SOIC surface-mount device, it offers a compact footprint with overall dimensions of 5.01 mm in length and 1.44 mm in height. Its SAR architecture enables fast and reliable data conversion suitable for industrial and laboratory electronics.

This ADC operates with a supply voltage range of 5 to 5.5 volts and communicates via an SPI interface, allowing easy integration with microcontrollers and embedded systems. The device is rated for operating temperatures between -40°C and 85°C, ensuring robust performance under harsh environmental conditions. While it lacks specific automotive certification, it is ideal for general purpose electronic applications requiring accurate voltage measurements.

Key features include a resolution of 16 bits, a single ADC channel, and an 8-pin package type supporting surface mounting technology. These features make the TLC4545ID suitable for precision measurement instrumentation, industrial control systems, and data acquisition setups in manufacturing and laboratory environments.

The device complies with industry norms but does not have special standards or approvals. It belongs to the TLC4545 series of ADCs by Texas Instruments, a brand known for reliability and quality in semiconductor solutions.

Features 16-bit resolution providing precise digital representation of analog signals. Operates at a sampling rate of 200,000 samples per second suitable for high-speed data acquisition. Utilizes successive approximation register (SAR) architecture for efficient conversion.

Has an 8-pin SOIC package supporting surface mounting on printed circuit boards. Operates with a supply voltage range of 5V to 5.5V ensuring compatibility with standard electronics. SPI interface enables straightforward connection with microcontrollers and digital systems.

Supports wide operating temperature range from -40°C to 85°C for industrial reliability. Compact dimensions of 5.01 mm length and 1.44 mm height facilitating space-saving designs. Designed without automotive standards making it suitable for general electronic applications.

Single ADC channel simplifies integration in data conversion tasks. Browse our extensive collection of Analogue to Digital Converters at EnvMart for versatile solutions in your industrial and laboratory instrumentation needs.
