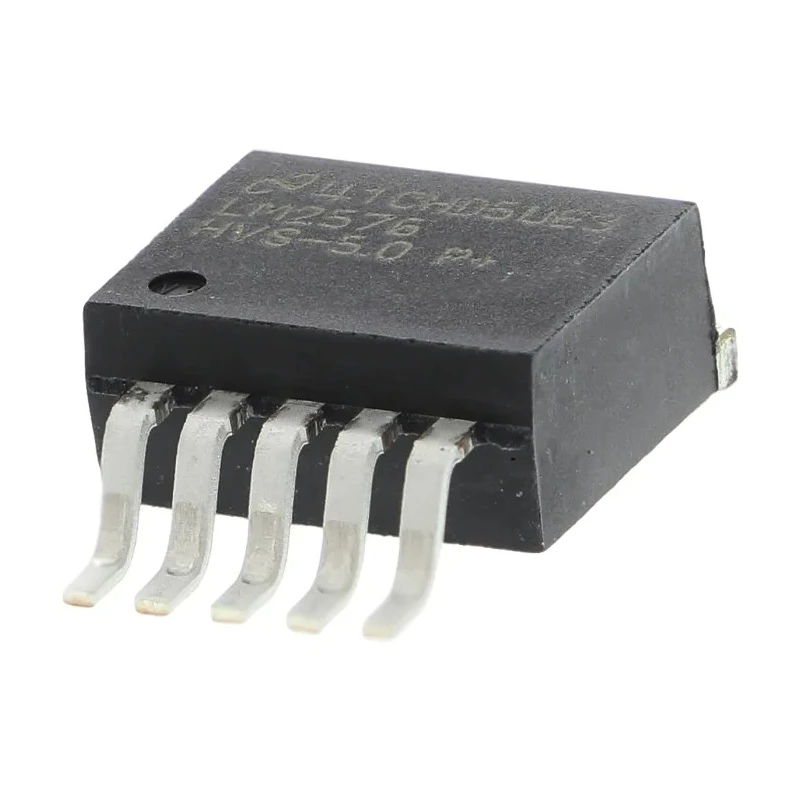

Texas Instruments Buck Converter Surface Mount 3.36V 3A Output Current TO-263 LM2576HVS-5.0/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Buck Converter Surface Mount 3.36V 3A Output Current TO-263 LM2576HVS-5.0/NOPB

Name: Texas Instruments Buck Converter Surface Mount 3.36V 3A Output Current TO-263 LM2576HVS-5.0/NOPB
Brand: Texas Instruments
SKU: 138375



Category DC-DC Converter Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Efficiency	77%
Length	10.16mm
Model	LM2576HVS-5.0/NOPB
Depth	4.57mm
Width	8.64mm
Mount Type	Surface
Series	LM2576
Output Current	3A
Maximum Operating Temperature	125°C
Package Type	TO-263
Minimum Operating Temperature	-40°C
Number of outputs	1
Ripple and Noise	150mV
Maximum Input Voltage	60V
Standards/Approvals	JEDEC, RoHS
Minimum Input Voltage	4V
Number of Pins	5
Output Voltage 1	3.36V
Output Voltage 2	5.1V

Key Features

This buck regulator is designed for step-down voltage conversion with wide input voltage range.
It features surface mount TO-263 packaging for compact PCB integration.
Provides high efficiency of approximately 77%, reducing heat loss in applications.
Operates reliably from -40°C to 125°C for demanding industrial environments.
Delivers low ripple and noise output voltage with typical ripple of 150mV.
Supports maximum input voltage up to 60V and minimum input voltage of 4V.
The device has 5 pins and complies with JEDEC and RoHS standards for quality assurance.
Ideal for use in power supplies, industrial electronics, and embedded control systems.

Product Description

Texas Instruments LM2576HVS-5.0/NOPB is a high-performance buck converter designed to provide stable 3.36V output voltage at a maximum output current of 3A. It is packaged in a surface mount TO-263 package, measuring 10.16mm in length, 8.64mm in width, and 4.57mm in depth, allowing easy mounting on printed circuit boards for various power regulation tasks.

Operating from a wide input voltage range of 4V to 60V, this buck converter efficiently converts higher DC voltages down to lower levels with an efficiency of 77%, minimizing power dissipation and heat generation. The device features low output voltage ripple and noise, with typical ripple values around 150mV, supporting sensitive electronics applications.

Designed to operate reliably in demanding environments, the LM2576HVS-5.0/NOPB supports ambient temperatures from -40°C up to 125°C. It meets JEDEC and RoHS compliance standards, ensuring environmental safety and industry compatibility.

With 5 pins for electrical connections and a single output channel, this converter is suitable for a variety of industrial, electronic component, power supply, and embedded system applications requiring efficient DC/DC voltage regulation.

This buck converter is a SIMPLE SWITCHER® step-down regulator from Texas Instruments, well-known for robust design and performance. Its surface mount TO-263 package ensures compactness and ease of assembly in modern electronic circuits.

Wide voltage input capability allows use in versatile power systems ranging from automotive to industrial equipment. High efficiency contributes to energy savings and thermal management in continuous operation. Compliance with JEDEC and RoHS ensures quality and environmental reliability.

Typical applications include embedded devices, industrial controls, and power management modules. The device is supported by available technical documentation and design tools from Texas Instruments.

The LM2576HVS-5.0/NOPB buck converter is an excellent choice for designers seeking a reliable DC/DC converter solution with robust performance and compliance in a compact footprint. Explore similar switching regulators and power supplies at EnvMart to enhance your projects.
