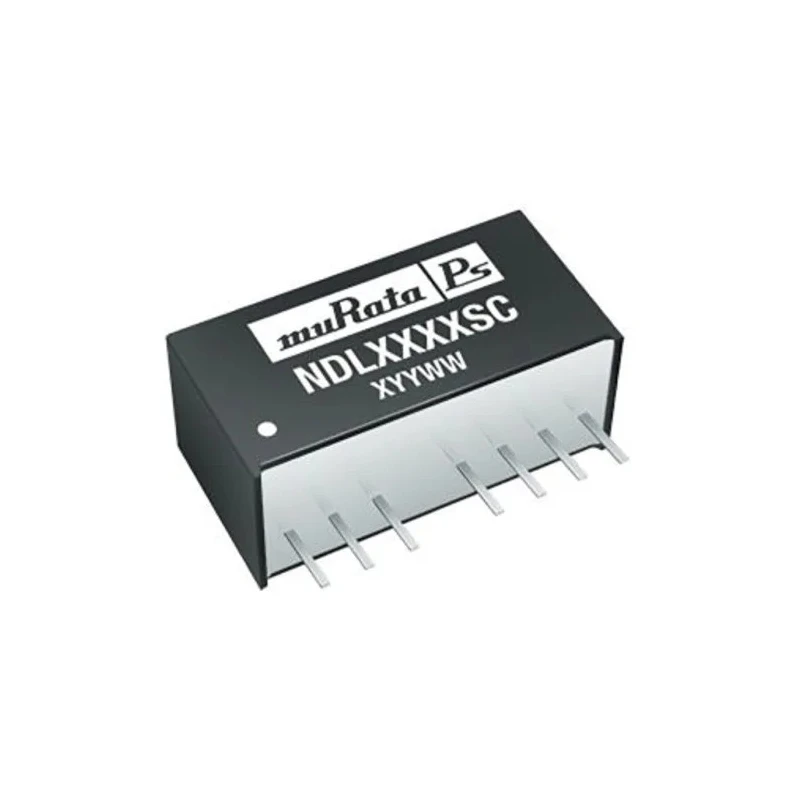

Murata Power Solutions NDL Series 1W SIP Single Output Regulated Isolated DC-DC Converter 5V DC Output, 9V - 18V DC NDL1205SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDL DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 73% |
| Length | 21.8mm |
| Model | NDL1205SC |
| Depth | 11.2mm |
| Gross Weight | 5g |
| Width | 11.1mm |
| Mount Type | Through Hole |
| Series | NDL |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1194000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 100mA |
| Input Ratio | 2:1 |
Key Features
- Compact SIP8 single output isolated DC-DC converter module suitable for power supply applications.
- High isolation voltage of 1kV DC ensures signal integrity and safety.
- Low ripple and noise at 100mV peak-to-peak supports sensitive electronics.
- Operating temperature range from -40°C to +85°C for reliable industrial use.
- Continuous short circuit protection with current fold back for device protection.
- Remote on/off control capability for efficient power management.
- Fully encapsulated UL 94V-0 package material for durability and fire resistance.
- Mean Time Between Failures (MTBF) of 1,194,000 hours indicating high reliability.
Product Description
Murata Power Solutions NDL1205SC is a high-quality DC-DC converter module from the NDL series designed for regulated isolated power conversion. It provides a 5V DC output at 1 watt power rating with a wide input voltage acceptance between 9V and 18V DC, ideal for industrial, laboratory, and embedded power applications.
This through-hole SIP (Single In-line Package) 8-pin module features a robust 2:1 input voltage ratio, enabling flexibility to work reliably with varying supply voltages. It features a high isolation voltage of 1kV DC to ensure safety and stability in electrical environments where isolation between input and output is critical.
The device offers low output ripple and noise at 100 mV peak-to-peak to maintain clean power supply lines, suitable for sensitive measurement, control, and communication equipment. It supports remote on/off control, allowing integration into complex power management systems.
Designed with fully encapsulated packaging and UL 94V-0 rated material, the converter withstands harsh conditions and thermal stress, rated for operation from -40°C to +85°C. Continuous short-circuit protection with current fold back prolongs the lifespan while ensuring safe operation under fault conditions.
The NDL1205SC boasts a long MTBF of nearly 1.2 million hours, reflecting its reliability for demanding applications in industrial automation, instrumentation, telecom, and power supply systems.
Compact SIP8 package suitable for space-constrained PCB layouts. Wide operating temperature range to suit industrial environments. High isolation voltage for enhanced safety compliance. Efficient power conversion with 73% efficiency.
Remote enable/disable control for flexible system design. RoHS compliant ensuring environmental safety.
This DC-DC Converter is an excellent choice for engineers seeking a dependable, compact power module for regulated isolated power needs. It is widely used in industrial, laboratory, electronics manufacturing, and embedded system applications.
Explore our wide range of power electronics components and related accessories listed under the DC/DC Converter category on EnvMart for more options from trusted manufacturers like Murata Power Solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NDL1205SC provides a regulated output voltage of 5V DC.
It accepts an input voltage range from 9V to 18V DC.
The maximum output power of this converter is 1 watt.
The efficiency of the NDL1205SC is rated at 73%.
This model has dimensions of 21.8mm in length, 11.1mm in width, and 11.2mm in depth.
The NDL1205SC features a high isolation voltage of 1kV DC.
It operates within a temperature range of -40°C to +85°C.
Yes, it includes continuous short circuit protection with current fold back for device safety.
The output ripple and noise is specified at 100mV peak-to-peak.
This DC-DC converter has a single output.
It uses a through-hole mounting type.
The MTBF for the NDL1205SC is approximately 1,194,000 hours.
