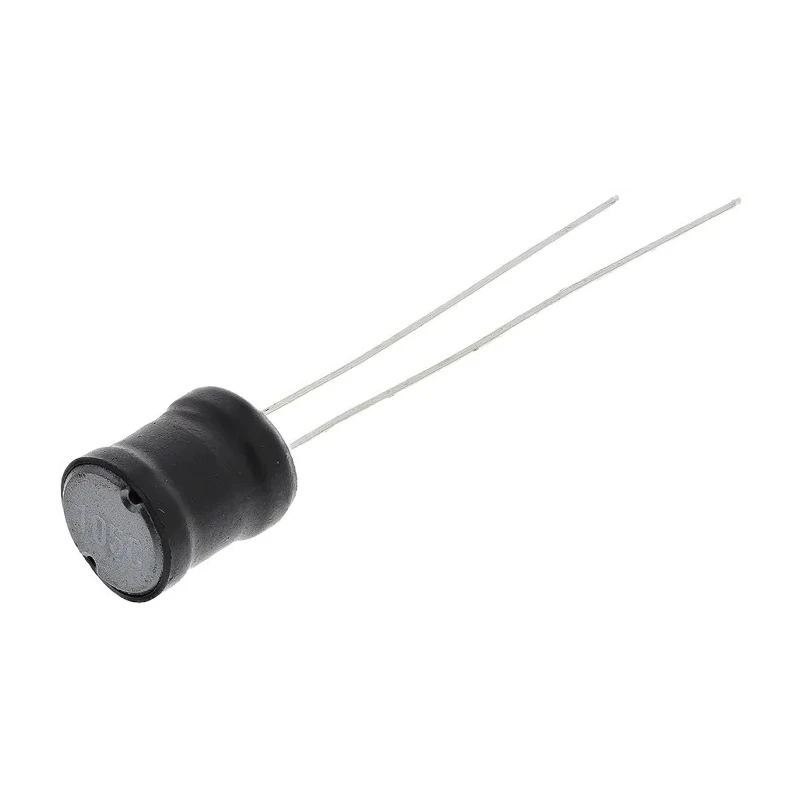

Murata Power Solutions 1 mH Leaded Inductor Radial 330 mA Max DC Current 2.1 Ω Max DC Resistance 13.5mm Height 1300R 13R105C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 1 mH Leaded Inductor Radial 330 mA Max DC Current 2.1 Ω Max DC Resistance 13.5mm Height 1300R 13R105C

Name: Murata Power Solutions 1 mH Leaded Inductor Radial 330 mA Max DC Current 2.1 Ω Max DC Resistance 13.5mm Height 1300R 13R105C
Brand: Murata Power Solutions
SKU: 373022
Price: 1.04 USD
Availability: InStock



Category Inductor Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Diameter	9.5mm
Brand	Murata Power Solutions
Height	13.5mm
Length	47mm
Model	13R105C
Depth	13.5mm
Packaging	Carton
Mount Type	Radial
Series	1300R
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Test Frequency	1kHz
Inductance	1mH
Standards/Approvals	UL, RoHS
Maximum DC Current	330mA
Maximum DC Resistance	2.1Ω
Inductance Tolerance	±10 %
Termination Style	Radial
Maximum Self Resonant Frequency	1kHz
Lead Pitch	5mm
Lead Diameter	0.65mm

Key Features

The inductor features a maximum self-resonant frequency of 1 kHz suitable for power supply filtering.
Constructed with a 9.5 mm diameter and 13.5 mm height for compact PCB mounting.
Lead diameter is 0.65 mm with a lead pitch of 5 mm allowing easy insertion in standard layouts.
Operating temperature range is from -40°C to 85°C enabling use in harsh environments.
Inductance tolerance is ±10%, providing predictable electrical performance.
Packaging is supplied in carton format for secure shipment and handling.
Meets UL and RoHS standards ensuring product safety and environmental compliance.
Series designation is 1300R, optimized for general purpose applications.

Product Description

Murata Power Solutions 13R105C is a 1 mH leaded inductor from the 1300R Series featuring radial termination style designed for low to medium current use cases, such as power supply filtering and general purpose electronic designs.

The component supports a maximum DC current of 330 mA and has a maximum DC resistance of 2.1 Ω, with an inductance tolerance of ±10%. Its maximum self-resonant frequency is 1 kHz, tested at a frequency of 1 kHz to ensure performance stability.

Physical dimensions include a diameter of 9.5 mm, height and depth each at 13.5 mm, with a length of 47 mm. Leads are 0.65 mm in diameter with a lead pitch of 5 mm, making it compatible with standard PCB mounting.

The operating temperature range of -40°C to 85°C allows reliable function in varied environmental conditions. The packaging is provided in cartons ensuring safe transport and handling.

This component complies with UL and RoHS standards, making it suitable for industrial, commercial, and electronic power applications requiring reliable inductors. Murata 1300R Series inductors are well suited for power supplies and general electronic devices where low DC resistance and stable inductance are crucial.

The inductor’s radial lead configuration facilitates easy PCB assembly. Its compact size supports designs where space is a premium. Operating electrical and environmental specifications align with demanding industrial applications.

Compliance with international standards ensures safety and environmental responsibility. The 13R105C model provides predictable inductance with ±10% tolerance. Maximum self-resonant frequency of 1 kHz is appropriate for power filtering needs.

Packaging in cartons protects units during shipment and storage. Designed by Murata Power Solutions, a trusted brand in electronic components. Explore the complete range of Murata leaded Inductors and other electronic passive components available on EnvMart for your industrial and manufacturing requirements.
