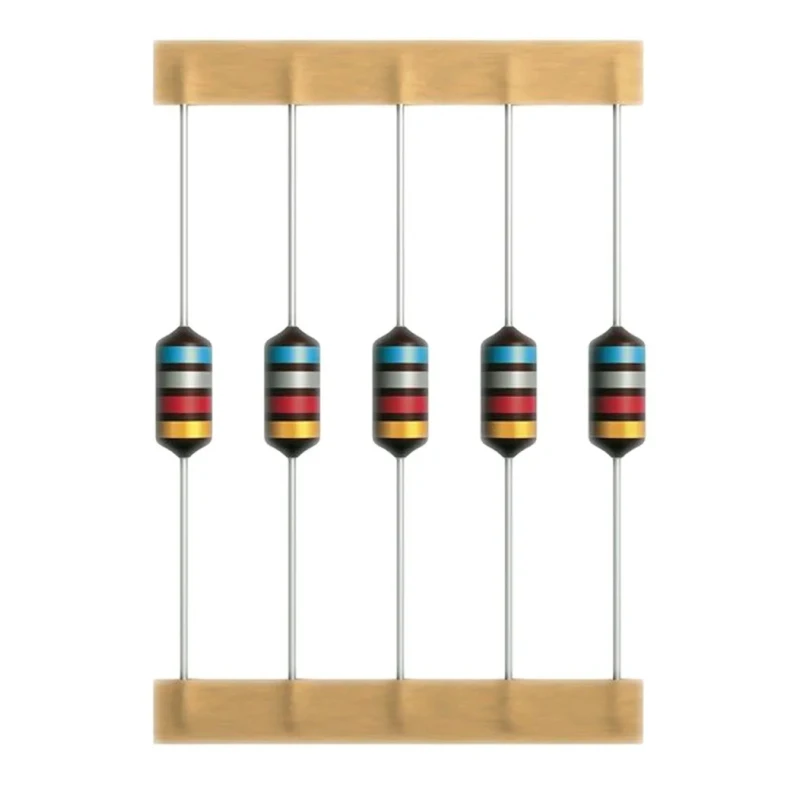

TDK 100 mH Ferrite Leaded Inductor Axial Mount Tape & Reel Packaging Max SRF 180 kHz Q 40 20 mA Idc 490 Ω B82144F1107J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 mH Ferrite Leaded Inductor Axial Mount Tape & Reel Packaging Max SRF 180 kHz Q 40 20 mA Idc 490 Ω B82144F1107J000



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	6.5mm
Brand	TDK
Height	6.5mm
Length	9.2mm
Model	B82144F1107J000
Depth	6.5mm
Packaging	Tape & Reel
Mount Type	Axial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.08MHz
Core Material	Ferrite
Inductance	100mH
Standards/Approvals	RoHS, IEC
Maximum DC Current	20mA
Maximum DC Resistance	490Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	180kHz
Minimum Quality Factor	40
Lead Pitch	11.5mm
Lead Diameter	0.8mm
TDK 100 mH Ferrite Leaded Inductor, Max SRF	180 kHz, Q:40, 20 mA Idc, 490 Ω Rdc, LBC

Key Features

Constructed with a ferrite core and enamel copper wire winding for optimal RF performance.
Axial leaded mount type suitable for wave soldering and easy PCB assembly.
Supports a maximum DC current of 20 mA with 490 Ω DC resistance.
Operates reliably within a temperature range of -55°C to 125°C.
Packaged in tape and reel format for automated insertion and production efficiency.
Compliant with RoHS and IEC standards, ensuring environmental safety and quality assurance.
Ideal for telecommunications, automotive electronics, energy-saving lamps, and entertainment electronics applications.

Product Description

TDK B82144F1107J000 ferrite leaded inductor is a high-quality axial component designed for RF blocking, filtering, and interference suppression. It features a ferrite drum core with enamel copper wire windings coated by a flame retardant lacquer for durability and reliability in demanding industrial and electronic environments.

This leaded inductor offers an inductance of 100 mH, a maximum DC current capacity of 20 mA, and a DC resistance of 490 Ω. It operates effectively up to a maximum self-resonant frequency of 180 kHz, with a minimum quality factor of 40, ensuring excellent performance in RF circuits.

The physical dimensions are compact with a diameter, height, and depth of 6.5 mm, a lead diameter of 0.8 mm, and a lead pitch of 11.5 mm. It is designed for axial mounting and supplied in tape and reel packaging, facilitating automated manufacturing processes.

This component withstands operating temperatures ranging from -55°C to 125°C, making it suitable for telecommunications, automotive electronics, energy saving lamps, and entertainment electronic devices. It meets RoHS and IEC standards, emphasizing environmental compliance and product reliability.

Constructed with a ferrite core and enamel copper wire winding for optimal RF performance. Axial leaded mount type suitable for wave soldering and easy PCB assembly. Supports a maximum DC current of 20 mA with 490 Ω DC resistance.

Operates reliably within a temperature range of -55°C to 125°C. Compact dimensions with 6.5 mm diameter, height, and depth, 0.8 mm lead diameter, and 11.5 mm lead pitch. Packaged in tape and reel format for automated insertion and efficiency.

Compliant with RoHS and IEC standards, ensuring environmental safety and quality assurance. Well-suited for telecommunications, automotive electronics, energy saving lamps, and entertainment electronics. Explore extensive options in leaded Inductors and ferrite core components at EnvMart for your advanced electronic design needs.
