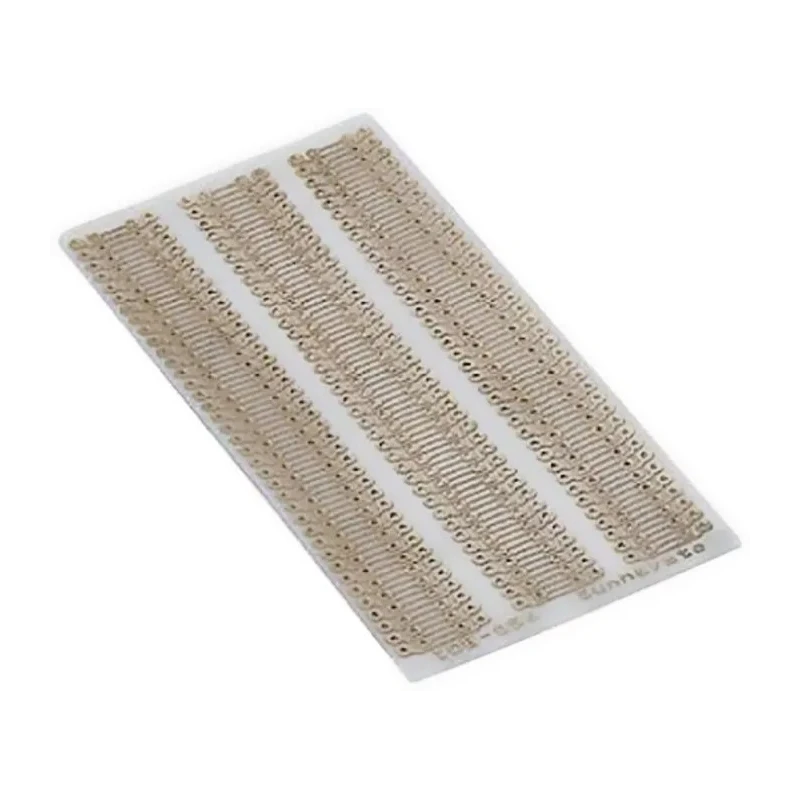

Sunhayato 1 Extender Board Seal Substrate Epoxy Glass Fabric Laminate FR4 0.1mm Thickness 100mm x 50mm ICB-054
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Sunhayato |
| Length | 100mm |
| Model | ICB-054 |
| Width | 50mm |
| Sub Type | Seal Substrate |
| Board Material | Epoxy Glass Fabric Laminate |
| Number of Sides | 1 |
| Board Thickness | 0.1mm |
| FR Material Grade | FR4 |
Key Features
- Constructed from durable epoxy glass fabric laminate material.
- Single-sided board design allows for simple extender applications.
- FR4 material grade ensures reliable electrical insulation.
- Board thickness measures 0.1mm for compact prototyping.
- Substrate functions as a seal for extender board connections.
- Suitable for use in electronic prototyping and testing environments.
Product Description
Sunhayato ICB-054 1 Extender Board Seal Substrate is a specialized prototyping board designed for extender and adapter board applications in electronic components and development. It features an epoxy glass fabric laminate board material, giving it strong mechanical and electrical insulation properties. The FR4 material grade ensures compatibility with standard PCB manufacturing and prototyping processes.
The board thickness is precisely 0.1mm, offering a thin and compact substrate ideal for extending circuit connections without adding bulk. With dimensions of 100mm in length and 50mm in width, it fits comfortably into various extender board uses, sealing connections effectively to maintain signal integrity and mechanical stability.
This single-sided substrate is manufactured in Japan under strict quality controls, making it a reliable component for electronic design, repair, and test scenarios. It can be utilized in industrial electronics prototyping, laboratory test setups, and manufacturing process trials where extender boards and seal substrates are necessary.
The product does not carry specific standards or certifications but benefits from quality materials and precise manufacturing. It is part of Sunhayato's range of extender boards and adapters tailored for professional use in electronics development environments.
Constructed from durable epoxy glass fabric laminate material. Single-sided board design allows for simple extender applications. FR4 material grade ensures reliable electrical insulation. Board thickness measures 0.1mm for compact prototyping.
Dimensions of 100mm length by 50mm width suit various PCB extender setups. Substrate functions as a seal for extender board connections. Suitable for use in electronic prototyping and testing environments.
This extender board seal substrate is suitable for professional and industrial use in electronics and electrical prototyping fields. It is recommended for integration within development tool accessories and cleanroom PCB prototyping setups. For browsing more extender boards and adapter boards by Sunhayato, explore the relevant category at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this model are 100mm in length and 50mm in width.
The board thickness measures 0.1mm, making it compact for prototyping applications.
It is constructed from epoxy glass fabric laminate, which provides strong mechanical and electrical insulation properties.
This substrate is suitable for electronic prototyping and testing environments, particularly in extender and adapter board applications.
The board is made from FR4 material grade, ensuring compatibility with standard PCB manufacturing processes.
The substrate features a single-sided design, allowing for straightforward extender applications.
This model is manufactured in Japan under strict quality controls.
The substrate functions as a seal for extender board connections, helping to maintain signal integrity and mechanical stability.
The product does not carry specific standards or certifications, but it benefits from quality materials and precise manufacturing.
The model number of this extender board is ICB-054.
It is recommended for integration within development tool accessories and cleanroom PCB prototyping setups.
Key features include its epoxy glass fabric laminate construction, single-sided design, FR4 material grade, and compact thickness of 0.1mm.
