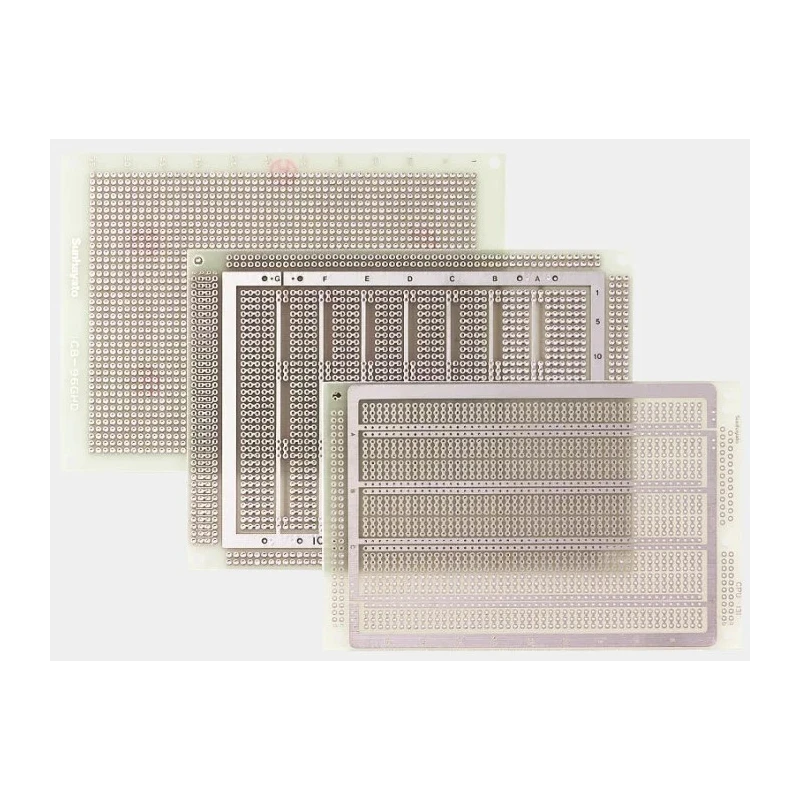

Sunhayato 1 Matrix Board FR4 Epoxy Glass Fabric Laminate 138mm x 95mm 1.6mm Thick ICB-97B
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Sunhayato |
| Length | 138mm |
| Model | ICB-97B |
| Width | 95mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | ANSI/ESD S20, BS EN 61340 |
| Number of Sides | 1 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
Key Features
- Constructed from epoxy glass fabric laminate with FR4 material grade.
- Board thickness of 1.6 mm provides mechanical strength and stability.
- Single-sided board with 1 mm diameter holes arranged at 2.54 mm pitch.
- Complies with ANSI/ESD S20 and BS EN 61340 electrostatic discharge standards.
- Manufactured in Japan ensuring high quality and reliability.
- Medium-sized universal board suitable for diverse electronic applications.
- Ideal for building, testing, and prototyping electronic circuits securely.
Product Description
Sunhayato ICB-97B Matrix Board FR4 is a precision prototyping board designed for electronic components assembly and circuit testing. This single-sided board measures 138 mm in length and 95 mm in width, with a durable 1.6 mm thickness made of epoxy glass fabric laminate. The board incorporates a FR4 material grade, providing excellent mechanical and electrical insulation properties necessary for demanding industrial and laboratory environments.
The matrix board features 1 mm diameter holes arranged at a standard 2.54 mm pitch, facilitating easy mounting of various electronic components and modules. Its compliance with ANSI/ESD S20 and BS EN 61340 standards ensures strong protection against electrostatic discharge, making it safe for sensitive electronics prototyping and development activities.
Manufactured in Japan, this medium-sized universal matrix board suits diverse use cases across industrial electronics, laboratories, manufacturing, and educational sectors. It enables rapid electronic circuit assembly, testing, and debugging, supporting innovation in design and engineering workflows.
Constructed from epoxy glass fabric laminate with FR4 grade for durability. Single-sided board with 1 mm hole diameter at 2.54 mm pitch for component mounting. Measures 138 mm by 95 mm with 1.6 mm thickness for robust handling.
Compliant with electrostatic discharge standards ANSI/ESD S20 and BS EN 61340. Produced in Japan, assuring quality and performance. Supports prototyping, educational, industrial, and manufacturing applications. Suitable for rapid circuit assembly and electronic experiments.
Explore the comprehensive range of Matrix Boards at EnvMart for your professional and technical projects requiring reliable and high-quality prototyping solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this matrix board are 138 mm in length and 95 mm in width.
The board has a thickness of 1.6 mm, providing mechanical strength and stability.
It is constructed from epoxy glass fabric laminate with an FR4 material grade, which offers excellent mechanical and electrical insulation properties.
The board features 1 mm diameter holes arranged at a standard pitch of 2.54 mm, facilitating easy mounting of electronic components.
Yes, it complies with ANSI/ESD S20 and BS EN 61340 electrostatic discharge standards, ensuring protection for sensitive electronics.
It is suitable for diverse applications including prototyping, educational projects, industrial electronics, and circuit testing.
This model is a single-sided board, designed for easy assembly of electronic circuits.
It is manufactured in Japan, ensuring high quality and reliability in its construction.
The FR4 material grade provides excellent mechanical and electrical insulation, making it suitable for demanding environments.
The matrix board is designed for electronic components assembly and circuit testing, supporting rapid prototyping and debugging.
Yes, it is suitable for educational applications, allowing students to build and test electronic circuits securely.
The matrix board features holes with a diameter of 1 mm, which is standard for mounting electronic components.
