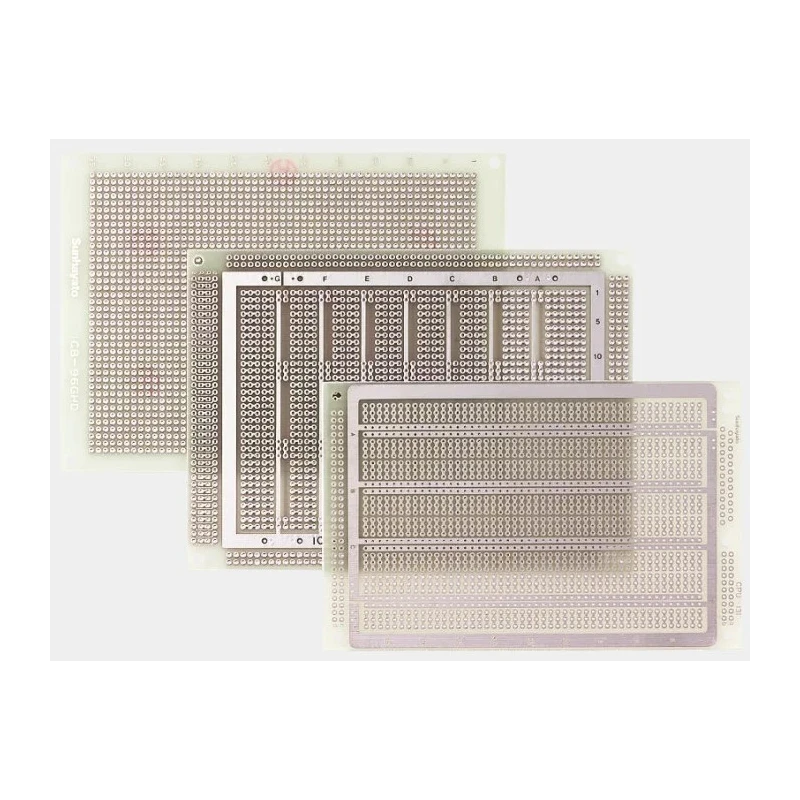

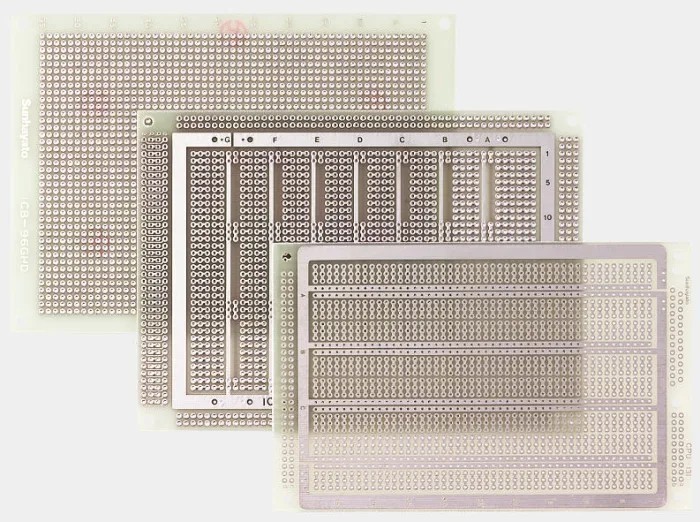

Sunhayato Matrix Board FR1 Phenol-Sided Paper 2.54 mm Pitch 1 mm Holes 160 mm x 115 mm Thickness 1.6 mm ICB-96

Sunhayato ICB-96 Matrix Board FR1 is designed for electronic prototyping applications requiring precise and reliable circuit assembly. This medium-sized board features 1 mm diameter holes arranged on a 2.54 mm pitch grid layout, measuring 160 mm in length and 115 mm in width, with a thickness of 1.6 mm. Manufactured from phenol-sided paper, the FR1 material grade provides effective electrical insulation and mechanical strength suitable for laboratory, industrial, and educational environments.

Designed to meet BS EN 61340 and ANSI/ESD S20 standards, this matrix board ensures robust electrostatic discharge control, protecting sensitive components during assembly and testing. It is an ideal solution for prototyping electronic circuits, supporting various components including single-digit 7-segment blue LED displays from manufacturers such as Broadcom.

The craftsmanship and quality assurance of Japan manufacturing guarantee durability and consistent performance across multiple use cases including electronics development, repair work, and small-scale manufacturing.

Constructed from durable phenol-sided paper material. 1 mm hole diameter arranged in a 2.54 mm pitch grid for versatile component mounting. Board dimensions of 160 mm length, 115 mm width, and 1.6 mm thickness. Meets stringent BS EN 61340 and ANSI/ESD S20 ESD protection standards.

Optimized for use with single-digit 7-segment blue LED displays and similar electronic parts. Manufactured in Japan ensuring high quality and reliability. Suitable for electronic prototyping in laboratory, industrial, and educational environments.

Choose this Sunhayato matrix board for your prototyping and circuit development needs to ensure precise layout and superior material quality. Explore more Matrix Boards and prototyping solutions in the Electronics Components category on EnvMart.
