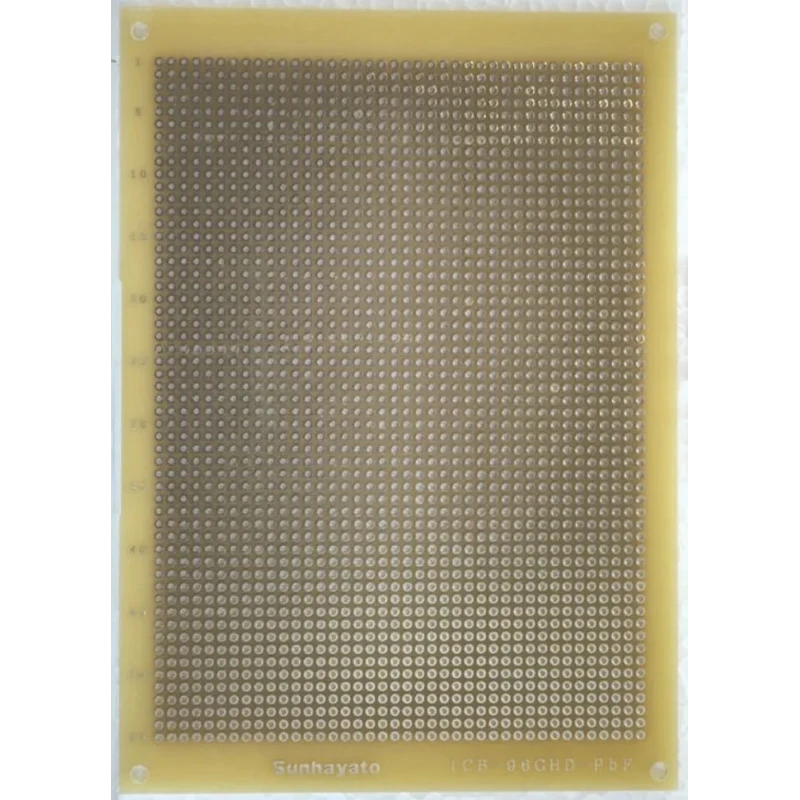

Sunhayato 2 Matrix Board FR4 Epoxy Glass Fabric Laminate 1.6mm Thickness 1mm Hole Diameter 138mm x 95mm ICB-97GHD-PBF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Sunhayato |
| Length | 138mm |
| Model | ICB-97GHD-PBF |
| Width | 95mm |
| Hole Diameter | 1mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | BS EN 61340, ANSI/ESD S20 |
| Number of Sides | 2 |
| Board Thickness | 1.6mm |
| FR Material Grade | FR4 |
Key Features
- The board features two sides for versatile electronic component mounting.
- Constructed using durable FR4 grade epoxy glass fabric material.
- Standard compliant with BS EN 61340 and ANSI/ESD S20 for ESD control.
- Perfect for medium-sized universal lead-free electronic assemblies.
- Holes are arranged on 2.54 mm pitch suitable for prototyping.
- Manufactured in Japan ensuring high-quality standards.
- Compatible with a wide range of electronic components and cleanroom applications.
Product Description
Sunhayato ICB-97GHD-PBF 2 Matrix Board is a premium quality FR4 prototype board designed for electronic component assembly and prototyping. It features a robust 1.6mm thick epoxy glass fabric laminate construction, providing excellent mechanical strength and electrical insulation properties.
The board measures 138mm in length and 95mm in width with precise 1mm diameter holes set on a 2.54 mm pitch, enabling compatibility with a variety of electronic components and connectors. The double-sided nature of the board allows for flexible circuit designs and complex prototyping projects.
Certified to BS EN 61340 and ANSI/ESD S20 standards, this matrix board offers reliable electrostatic discharge control, which is crucial in sensitive electronic manufacturing and cleanroom environments.
Manufactured in Japan, the board meets stringent quality requirements, making it suitable for industrial, laboratory, and manufacturing applications where dependable prototype boards are essential.
The board has two sides for component mounting and circuitry. Constructed from FR4 epoxy glass fabric laminate for durability and insulation. Hole diameters are 1mm on a standard 2.54 mm pitch layout. Complies with international standards BS EN 61340 and ANSI/ESD S20.
Medium-sized universal lead-free board suitable for diverse electronic prototyping. Dimensions of 138mm length and 95mm width make it compatible with common circuit designs. Produced in Japan with high manufacturing standards.
This Matrix Board is ideal for electronics development, prototyping, ESD-safe product manufacturing, and cleanroom lab use. Its quality and specifications make it an excellent choice for engineers and technicians working on PCB prototyping and modification tasks.
Explore the wide range of prototyping boards and electronic components available in EnvMart’s Electronics & Electricals category for all your development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board measures 138mm in length and 95mm in width.
It has a thickness of 1.6mm.
The holes have a diameter of 1mm and are arranged on a 2.54mm pitch.
It is constructed from FR4 epoxy glass fabric laminate.
This model features two sides for versatile electronic component mounting.
It complies with BS EN 61340 and ANSI/ESD S20 standards for electrostatic discharge control.
The board is manufactured in Japan.
It is suitable for electronics development, prototyping, ESD-safe product manufacturing, and cleanroom lab use.
The ESD control is crucial in sensitive electronic manufacturing and cleanroom environments to prevent damage to components.
Yes, it is compatible with a variety of electronic components and connectors due to its hole configuration.
Its double-sided design and precise hole arrangement allow for flexible circuit designs and complex prototyping.
It is intended for medium-sized universal lead-free electronic assemblies and prototyping tasks.
