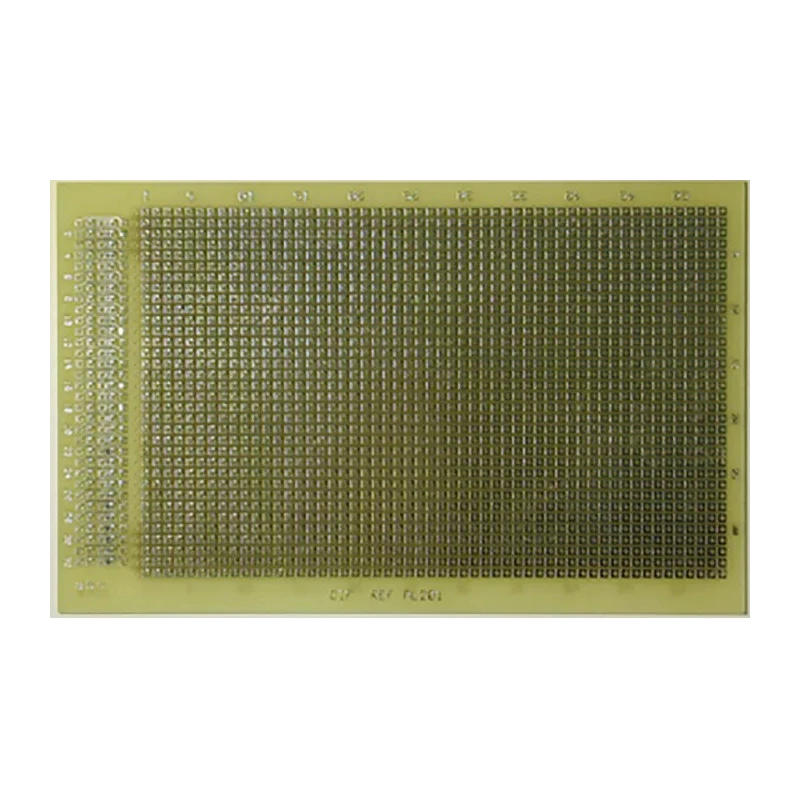

CIF Double-Sided Epoxy FR4 Matrix Board 2 Sides 1 mm Holes 160 mm x 100 mm AL201

CIF AL201 is a high-quality double-sided matrix board designed for electronic prototyping and shielding applications, offering robust construction and precise specifications.

The matrix board is fabricated from epoxy FR4 material, known for its excellent insulating properties and mechanical strength. It measures 160 mm in length, 100 mm in width, and has a thickness of 15 mm.

This board features 1 mm diameter holes arranged on a 2.50 mm pitch, compatible with DIN 41612 connectors used commonly in industrial electronics.

Both sides of the board are plated; one side with tinned 2 mm2 pads for easy component soldering, while the other side is fully copper-clad to provide high-frequency shielding and reduce electromagnetic interference.

Its double-sided design allows versatile circuit layouts and reliable electrical connections, making it suitable for various applications including laboratory prototyping, electronics manufacturing, and repair.

The board is constructed from durable epoxy FR4 material to withstand mechanical and thermal stresses. Precise 1 mm holes accommodate standard connectors and component leads. Fully copper-clad rear side enhances shielding and durability.

Complies with DIN 41612 standards relevant to electronic prototyping components. Dimensions of 160 mm by 100 mm offer ample workspace for circuit design. Ideal for use in industrial, laboratory, manufacturing, and educational electronics.

This matrix board is engineered to meet professional electronics assembly needs, providing reliability and ease of use. Explore the Electronics Components category at EnvMart for a broad selection of high-quality prototyping and Matrix Boards.
