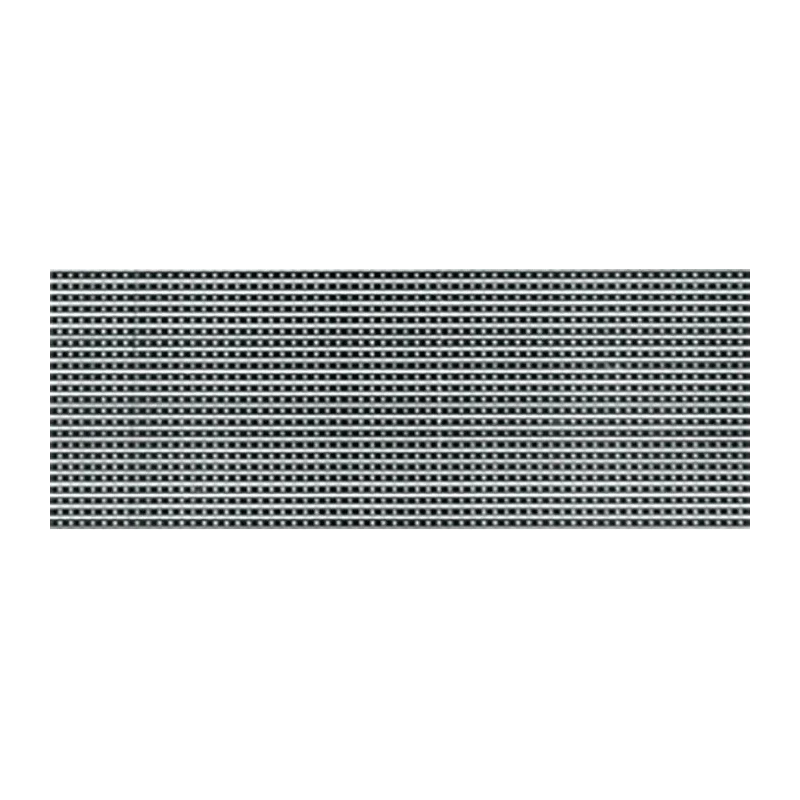

CIF Matrix Board FR4 Epoxy Glass Fabric Laminate 1 mm Holes 2.54 mm Pitch 160 mm x 100 mm AGB10

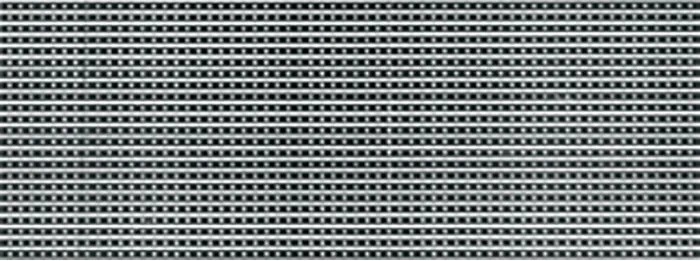

CIF AGB10 Matrix Board is a high-quality prototyping board constructed from FR4 epoxy glass fabric laminate, designed for electronic circuit development and testing. This matrix board features a grid of 1 mm diameter holes spaced precisely at 2.54 mm pitch, allowing for flexible and accurate component placement.

Measuring 160 mm in length and 100 mm in width with a 1.6 mm thick board, it provides a robust platform with excellent electrical insulation and mechanical strength. The single-sided board is equipped with 2 mm wide tinned copper tracks that cover the surface, facilitating reliable soldering and circuit connectivity.

This matrix board conforms to ANSI/ESD S20 and BS EN 61340 standards, ensuring compliance with electrostatic discharge protection requirements. Manufactured in France, the product is suitable for a wide range of applications including laboratory electronics assemblies, industrial prototyping, and educational electronics experimentation.

The epoxy glass construction guarantees durability and resistance to wear, making it suitable for repetitive use and testing phases. The CIF AGB10 is ideal for engineers, technicians, and hobbyists requiring a dependable matrix board for PCB prototyping and testing tasks.

The board is made from FR4 material grade epoxy glass fabric laminate. Contains 1 mm diameter holes laid out in a precise 2.54 mm pitch grid. Dimensions are 160 mm in length and 100 mm in width, with 1.6 mm board thickness.

Complies with ANSI/ESD S20 and BS EN 61340 standards for ESD control. Features a single-sided tinned copper test card with 2 mm wide tracks. Designed for electronic prototyping and matrix board applications. Manufactured in France to high-quality standards.

Suitable for laboratory, industrial, electronics development and prototyping use. Epoxy glass construction offers durability and electrical insulation. Explore further related products and similar electronics prototyping boards in the Electronics Components and Matrix Boards category on EnvMart for your project requirements.
