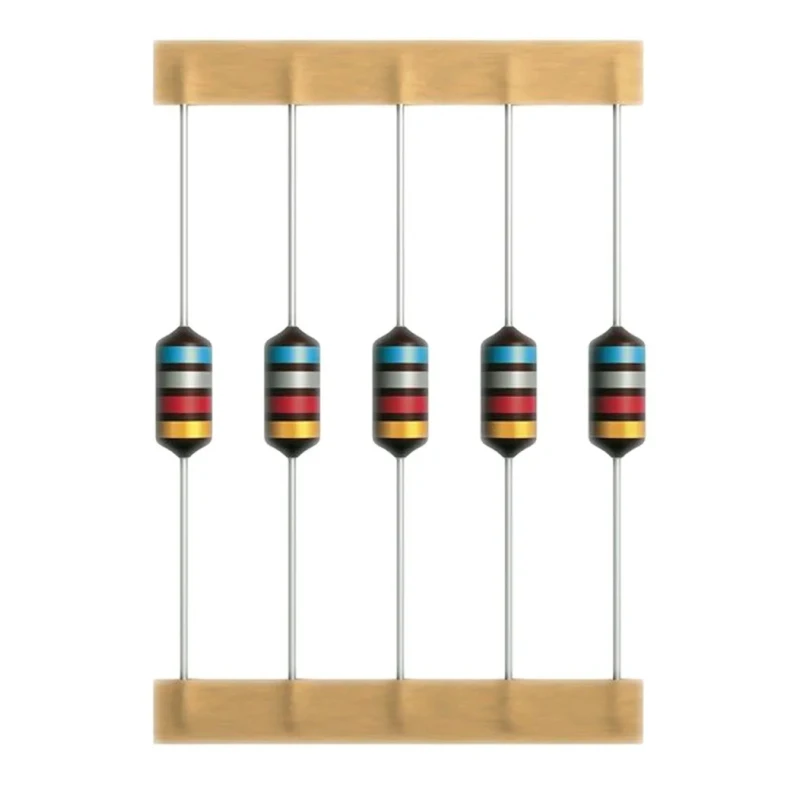

TDK 1 mH Ferrite Leaded Inductor, Axial Mount, Max SRF 2.2 MHz, Q 60, 280 mA Idc, 4.2 Ω Rdc, Series LBC B82144F1105J000

TDK B82144F1105J000 is a 1 mH ferrite leaded inductor designed for reliable electrical performance with an axial mounting style. It operates efficiently with a maximum self-resonant frequency of 2.2 MHz and a minimum quality factor of 60, making it suitable for RF blocking, filtering, decoupling, and interference suppression tasks.

The inductor features a large ferrite drum core wound with enamel copper wire, coated with a flame retardant lacquer to ensure durability and stability under operating conditions. It supports a maximum DC current of 280 mA and has a DC resistance of 4.2 Ω, making it well-suited for use in telecommunications, automotive electronics, energy-saving lamps, and entertainment electronics.

Designed for use in demanding industrial applications, the inductor performs reliably across a wide temperature range from -55°C to 125°C. Its lead diameter of 0.8 mm and lead pitch of 11.5 mm accommodate standard PCB assembly processes, and the product is supplied in tape and reel packaging suitable for wave soldering.

Meeting RoHS and IEC approvals, this TDK LBC series inductor aligns with environmental standards and quality expectations. Its compact size includes a diameter and height of 6.5 mm, and an overall length of 9.2 mm, making it convenient for space-sensitive electronic circuits.

Axial mount leaded inductor designed with ferrite core material for efficient performance. Inductance of 1 mH with tolerance of ±5% ensuring precise electrical characteristics. Maximum DC current rating of 280 mA and DC resistance of 4.2 Ω enables reliable current handling.

Features a maximum operating temperature of 125°C and minimum operating temperature of -55°C providing wide temperature range suitability. Lead diameter is 0.8 mm with a pitch of 11.5 mm for easy PCB insertion and soldering.

Enables RF blocking, filtering, decoupling, and interference suppression in telecommunications and automotive electronics. Complies with RoHS and IEC standards, ensuring environmental and quality compliance. Packaging format is tape and reel, facilitating automated assembly processes.

This product is ideal for industrial, telecommunications, automotive electronics, manufacturing, and energy-saving lamp applications requiring high-quality inductor components. Explore more Inductors and electronic components at EnvMart for comprehensive solutions.
