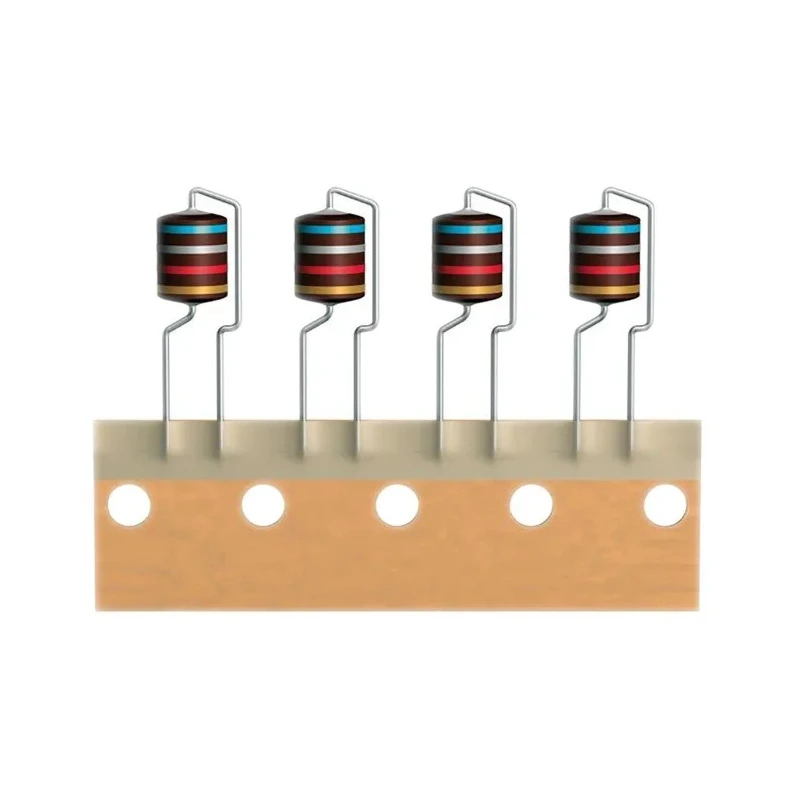

TDK 1 mH Ferrite Leaded Inductor, Max SRF 2.2 MHz, Q 60, 280 mA Idc, 4.2 Ω Rdc, Radial Mount, Tape & Reel B82144B1105J000

TDK B82144B1105J000 is a 1 mH Ferrite Leaded Inductor designed for high-frequency RF blocking and filtering applications. Featuring a ferrite core with an enamel copper wire winding, this radial mount inductor offers excellent electrical characteristics including a maximum self resonant frequency of 2.2 MHz and a high-quality factor (Q) of 60.

Capable of handling a continuous maximum DC current of 280 mA and rated for temperatures ranging from -55°C to 125°C, the inductor delivers stable performance under industrial, telecommunications, automotive electronics, energy saving lighting, and entertainment electronics environments. Its radial leads are electroplated with nickel and pure tin and bent to a 5 mm pitch for reliable wave soldering.

The device features a low DC resistance of 4.2 Ω and an inductance tolerance of ±5%, ensuring efficient operation in impedance-sensitive circuits. The product complies with IEC and RoHS standards, reflecting adherence to quality and environmental guidelines. Packaged in tape & reel, it supports high-volume automated production lines.

Typical industrial use cases include RF blocking, filtering, decoupling, and interference suppression in communication and automotive electronic systems. The large ferrite drum core provides stable magnetic properties essential for RF choke applications.

Constructed with a large ferrite drum core and enamel copper wire winding. Radial leads electroplated with nickel and pure tin for wave soldering compatibility. Maximum DC current rating of 280 mA supports moderate power circuits.

Low maximum DC resistance of 4.2 Ω minimizes power losses. Inductance tolerance of ±5% ensures consistent inductive properties. Operational temperature range from -55°C to 125°C caters to diverse environments. Compliant with IEC and RoHS standards for environmental safety.

Packaging in tape & reel supports efficient automated assembly. Tested at 0.25 MHz frequency for precise inductance measurement. Suitable for telecommunications, automotive electronics, and lighting applications. Explore more quality Inductors and passive components in EnvMart’s Electronics Components category for your industrial and manufacturing needs.
