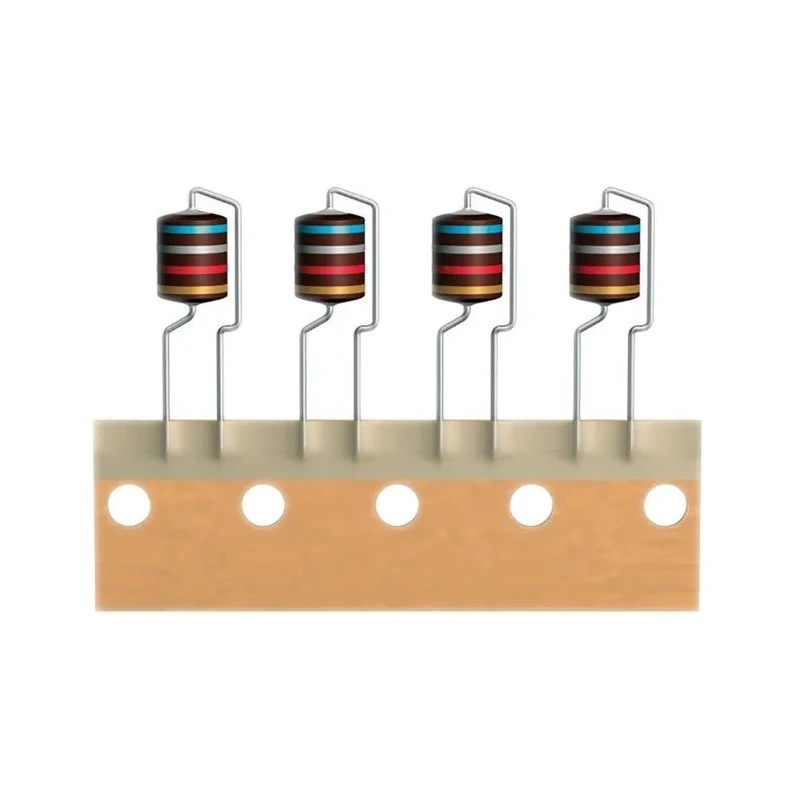

TDK 1 mH Ferrite Leaded Inductor, Max SRF 2.2 MHz, Q 60, 280 mA Idc, 4.2 Ω Rdc, Radial Lead LBC Series B82144B1105J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 1 mH Ferrite Leaded Inductor, Max SRF 2.2 MHz, Q 60, 280 mA Idc, 4.2 Ω Rdc, Radial Lead LBC Series B82144B1105J000



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	6.5mm
Brand	TDK
Height	9.2mm
Length	30.5mm
Model	B82144B1105J000
Depth	14.5mm
Packaging	Tape & Reel
Mount Type	Radial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.25MHz
Core Material	Ferrite
Inductance	1mH
Standards/Approvals	IEC, RoHS
Maximum DC Current	280mA
Maximum DC Resistance	4.2Ω
Inductance Tolerance	±5 %
Termination Style	Radial Lead
Maximum Self Resonant Frequency	2.2MHz
Minimum Quality Factor	60
Lead Pitch	5mm
Lead Diameter	0.8mm
TDK 1 mH Ferrite Leaded Inductor, Max SRF	2.2 MHz, Q:60, 280 mA Idc, 4.2 Ω Rdc, LBC

Key Features

This inductor supports a maximum DC current of 280 mA for reliable performance.
It has a maximum DC resistance of 4.2 ohms for efficient current flow.
Constructed with a ferrite core and radial lead termination style for durability.
Designed for operating temperature ranges from -55°C up to 125°C.
Offered with a tape and reel packaging style suitable for wave soldering.
Inductance tolerance is ±5%, ensuring precision filtering and signal applications.
Complies with IEC and RoHS standards, ensuring quality and environmental safety.
High rated current capacity and wide inductance range.

Product Description

TDK B82144B1105J000 is a 1 millihenry ferrite leaded inductor from the LBC series, featuring a high-quality ferrite drum core with an enamel copper wire winding. This radial lead inductor provides a maximum self-resonant frequency (SRF) of 2.2 MHz, a quality factor (Q) of 60, and supports a maximum direct current of 280 mA. It exhibits a low maximum DC resistance of 4.2 ohms, making it ideal for efficient signal processing and RF filtering in various electronic applications.

The inductor is designed with a radial lead termination style with 0.8 mm lead diameter and 5 mm lead pitch, enabling easy mounting by wave soldering. Its physical dimensions include a diameter of 6.5 mm, height of 9.2 mm, depth of 14.5 mm, and length of 30.5 mm. The component is rated for operation over a temperature range of -55°C to 125°C, suitable for automotive electronics, telecommunications, energy-saving lamps, and entertainment electronics. The coil has a ±5% inductance tolerance for precision and reliability.

The LBC series inductors conform to IEC and RoHS standards, ensuring compliance with industry safety and environmental regulations. The coils feature flame-retardant lacquer coating with electroplated nickel and pure tin for corrosion resistance and robust performance. These inductors are widely used for RF blocking, filtering, decoupling, and interference suppression in industrial and commercial electronics systems.

High rated current capacity and wide inductance range. Suitable for wave soldering mounting techniques. Flame-retardant coating enhances durability and safety. Inductance indicated by colour bands to IEC 60062 standard. Radial lead terminals electroplated with nickel and pure tin.

This reliable ferrite leaded Inductor is essential for precise electronic circuit tuning and noise suppression. Browse the Electronics Components category on EnvMart for compatible parts and accessories.
