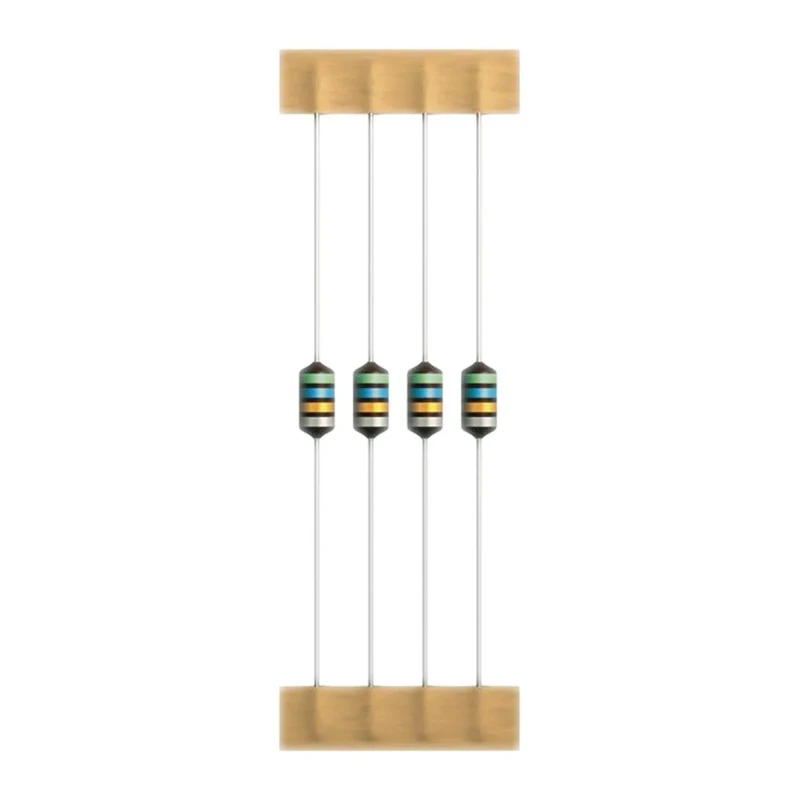

TDK 1 mH Ferrite Leaded Inductor Axial Mount, Max SRF 1.5 MHz, Q 60, 55 mA Idc, 33 Ω Rdc, SBC Series B82141A1105J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 1 mH Ferrite Leaded Inductor Axial Mount, Max SRF 1.5 MHz, Q 60, 55 mA Idc, 33 Ω Rdc, SBC Series B82141A1105J000



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	3mm
Brand	TDK
Height	3mm
Length	6.8mm
Model	B82141A1105J000
Depth	3mm
Packaging	Ammo Pack
Mount Type	Axial
Series	SBC
Maximum Operating Temperature	40°C
Minimum Operating Temperature	20°C
Test Frequency	0.8MHz
Core Material	Ferrite
Inductance	1mH
Standards/Approvals	RoHS, IEC
Maximum DC Current	55mA
Maximum DC Resistance	33Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	1.5MHz
Minimum Quality Factor	60
Lead Pitch	10mm
Lead Diameter	0.6mm
TDK 1 mH Ferrite Leaded Inductor, Max SRF	1.5 MHz, Q:60, 55 mA Idc, 33 Ω Rdc, SBC

Key Features

Inductance of 1 mH with ±5% tolerance.
Ferrite core with enamel copper wire winding.
Axial mounting style with 0.6 mm lead diameter.
Maximum DC current of 55 mA and DC resistance of 33 Ω.
Compact size with 3 mm diameter, 3 mm height, and 6.8 mm length.
High quality factor (Q) of 60 at 0.8 MHz test frequency.
RoHS and IEC compliant ensuring safety and environmental standards.
Terminals electroplated with nickel and pure tin for solderability.

Product Description

TDK B82141A1105J000 is a high-quality 1 mH Ferrite Leaded Inductor designed for axial mount applications. This inductor features a ferrite drum core wrapped with enamel copper wire and is coated with flame retardant lacquer, providing durability and reliable performance in electronic circuits.

The inductor offers a maximum self-resonant frequency of 1.5 MHz and a high quality factor of 60 at 0.8 MHz test frequency, making it ideal for RF blocking, filtering, decoupling, and interference suppression in various electrical and electronic applications.

Compact dimensions (3 mm diameter, 3 mm height, 6.8 mm length) ensure efficient use of PCB space while maintaining excellent electrical characteristics. The device supports a maximum DC current of 55 mA and a DC resistance of 33 Ω, with axial mounting style featuring 0.6 mm lead diameter and a 10 mm pitch suited for wave soldering processes.

Compliant with RoHS and IEC standards, this inductor meets environmental safety and performance certifications. Its terminals are constructed from CuAg0.1 base material and electroplated with nickel and pure tin to assure strong solderability and longevity.

The TDK B82141A1105J000 inductor is best suited for use in household electronics, automotive systems, entertainment electronics, RF circuits, and other industrial and commercial electronics requiring stable inductance and effective interference suppression.

Inductance of 1 mH with ±5% tolerance. Ferrite core with enamel copper wire winding. Axial mounting style with 0.6 mm lead diameter. Max DC current of 55 mA, max DC resistance 33 Ω. Compact physical size optimized for PCB mounting.

High quality factor and test frequency of 0.8 MHz. RoHS and IEC compliant for safety and environmental standards. Electroplated terminals for reliable soldering. Operating temperature range from 20°C to 40°C.
