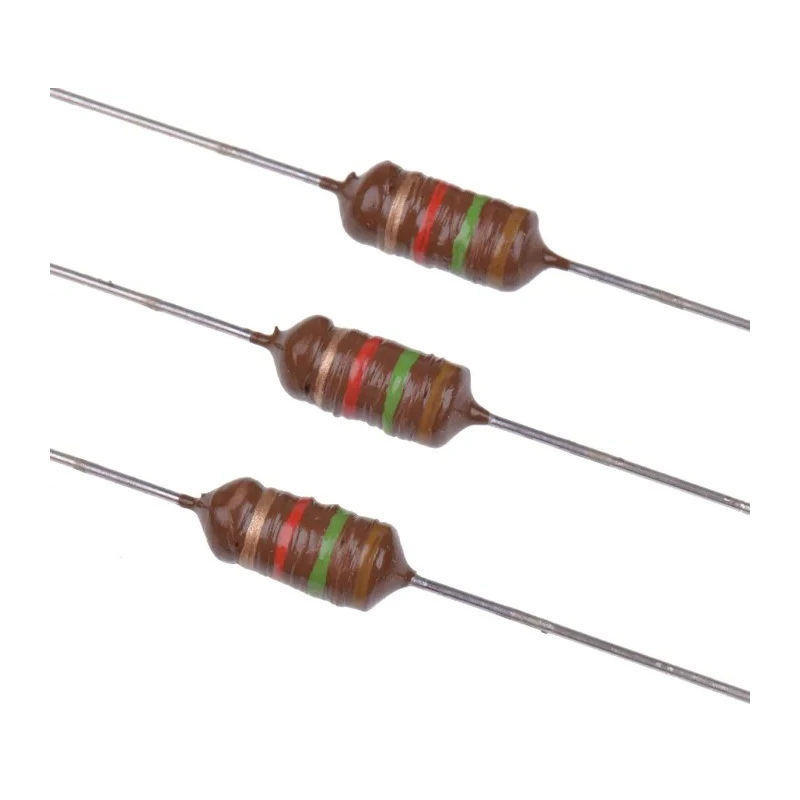

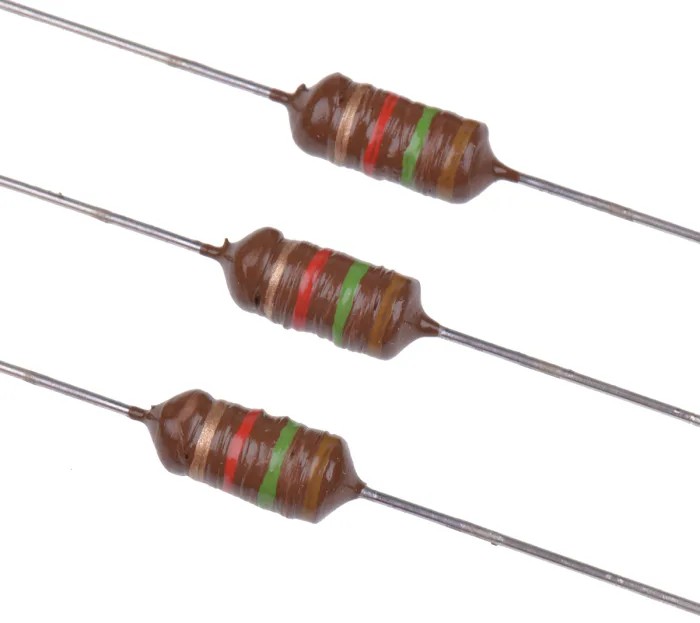

TDK 1.5 mH Ferrite Leaded Inductor, Axial Mount, Max SRF 1 MHz, Q60, 160 mA IDC, 6 Ω RDC, LBCRS Series B82144A2155J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 1.5 mH Ferrite Leaded Inductor, Axial Mount, Max SRF 1 MHz, Q60, 160 mA IDC, 6 Ω RDC, LBCRS Series B82144A2155J000



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	5.2mm
Brand	TDK
Height	5.2mm
Length	12mm
Model	B82144A2155J000
Depth	5.2mm
Packaging	Ammo Pack
Mount Type	Axial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.8MHz
Core Material	Ferrite
Inductance	1.5mH
Standards/Approvals	IEC, RoHS
Maximum DC Current	160mA
Maximum DC Resistance	6Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	1MHz
Minimum Quality Factor	60
Lead Pitch	15mm
Lead Diameter	0.8mm
TDK 1.5 mH Ferrite Leaded Inductor, Max SRF	1 MHz, Q:60, 160 mA Idc, 6 Ω Rdc, LBC

Key Features

Provides maximum self-resonant frequency of 1 MHz ensuring signal integrity.
Rated for a maximum DC current of 160 mA and DC resistance of 6 ohms.
Constructed with a ferrite drum core and enamel copper wire winding for durability.
Axial leaded design with 0.8 mm lead diameter and 15 mm lead pitch.
Suitable operating temperature range from -55°C to 125°C for versatile use.
Features inductance tolerance of ±5% and minimum quality factor of 60.
Terminations electroplated with nickel and pure tin ensure reliable soldering.
Complies with IEC and RoHS standards for quality and safety.

Product Description

TDK B82144A2155J000 Ferrite Leaded Inductor is an axial mount passive electronic component with inductance of 1.5 mH, maximum self resonant frequency of 1 MHz, and a minimum quality factor of 60. Designed using a ferrite core and enamel copper wire winding, the inductor features a flame retardant lacquer coating for enhanced durability and stability in demanding electronic circuits.

This inductor supports a maximum DC current rating of 160 mA and has a DC resistance of 6 ohms, making it suitable for telecommunications, automotive electronics, energy-saving lamps, and entertainment electronics applications. The axial termination style with lead diameter of 0.8 mm and pitch of 15 mm enables easy wave soldering and integration into printed circuit boards.

Operating effectively in temperatures ranging from -55°C to 125°C, it complies with IEC and RoHS standards ensuring reliability and regulatory compliance. The product series is LBC, and its robust construction includes electroplated nickel and pure tin terminations for improved solderability. Its physical dimensions include 5.2 mm diameter, 5.2 mm height, 5.2 mm depth, and 12 mm length.

Ideal for RF blocking, filtering, decoupling, and interference suppression in industrial, telecommunications, automotive, and manufacturing environments. These inductors are supplied in ammo packs for efficient production line use.

Maximum self resonant frequency of 1 MHz ensures effective signal processing. Maximum DC current of 160 mA supports varied electronic applications. Axial mount design for easy PCB integration and wave soldering. Ferrite core with enamel copper winding guarantees performance quality.

Operating temperature from -55°C to 125°C suits diverse environmental conditions. Electroplated nickel and pure tin terminations enhance reliability. Compliant with IEC and RoHS standards for safety assurance. Supplied in ammo packs to improve production efficiency.
