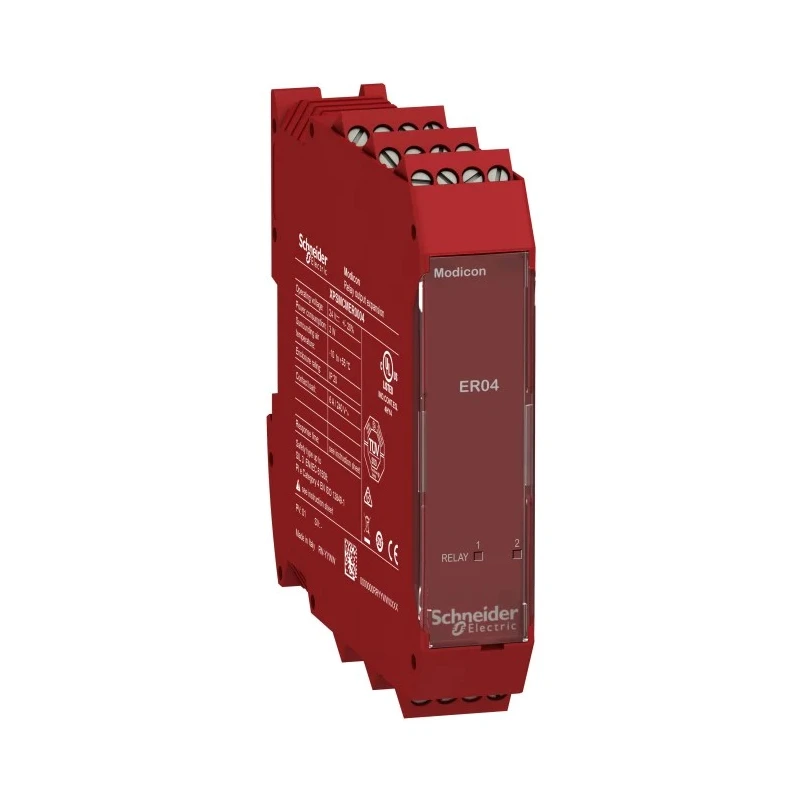

Schneider Electric Preventa Series DIN Rail Mount Output Module 24V dc 3W Power Rating 2 Inputs 4 Outputs 2 XPSMCMER0004

Schneider Electric XPSMCMER0004 Preventa Series Output Module is a DIN Rail mount industrial safety module designed to provide forced guided contact outputs and inputs for safety relay control in automation systems. Operating at 24V dc with a power rating of 3W, it supports 2 inputs and 4 outputs arranged as 2 normally closed and 4 normally open contacts, ensuring high safety and reliability in control circuits.

The module's compact size of 22.5 x 99 x 114.5 mm allows installation in tight control panels while retaining easy access via removable screw-type terminal blocks. It is compatible with the Preventa Modular Safety Controller, offering safe relay output modules that conform to industrial safety standards including cULus certification.

Its design supports Category 1, 2, and 4 safety architectures and features a symmetrical DIN Rail locking clip for secure mounting. This Output Module enables connection to safety controller CPU via an expansion bus when required and supports external device monitoring features.

The construction is RoHS compliant and classified as a green premium product. Typical industrial applications include use in manufacturing automation, process control, HVAC systems, and general industrial machine safety where reliable safe output signaling is critical.

Mounts on DIN Rail for industrial safety and control applications. Provides 2 NC and 4 NO forced guided contacts for reliable output signaling. Includes 2 inputs for Start/Restart interlock and external device monitoring.

Compact and space-saving module design with removable screw terminals. Complies with cULus safety standards and industrial safety requirements. Compatible with Preventa safety controllers and expansion bus connectivity. Certified to high safety categories conforming to IEC and EN standards.

RoHS compliant and environmentally responsible product design.

This module is part of the Schneider Electric Preventa range designed for industrial automation safety input/output management. Suitable for use in construction, manufacturing, process control, HVAC, and various industrial safety monitoring requirements. EnvMart offers comprehensive catalog access to Schneider Electric automation and safety devices for professional industrial applications.
