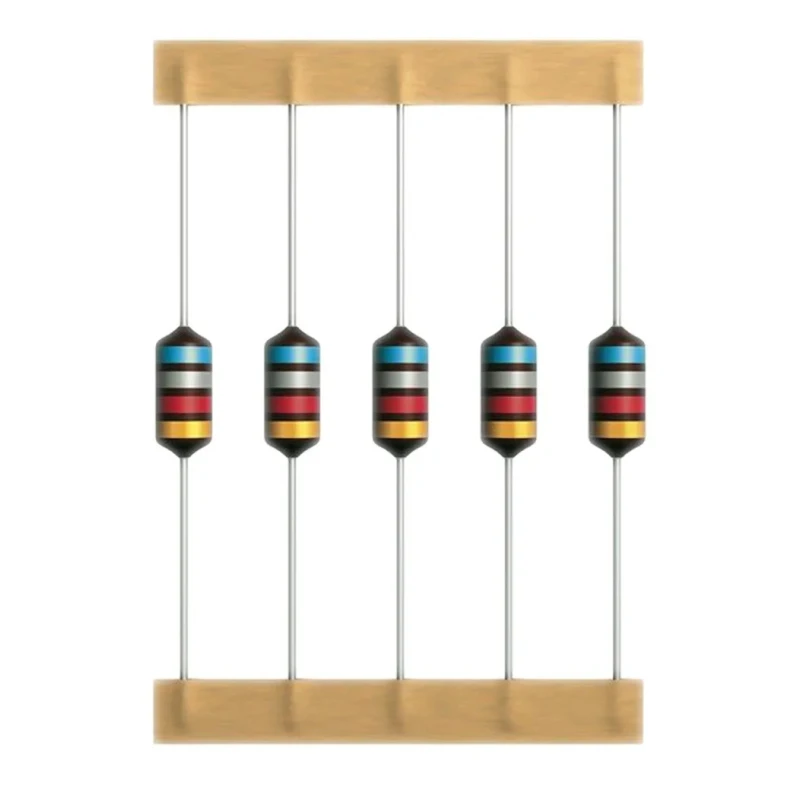

TDK 100 mH Ferrite Leaded Inductor, Max SRF 180 kHz, Q Factor 40, 20 mA DC Current, 490 Ω DC Resistance B82144F1107J000

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 mH Ferrite Leaded Inductor, Max SRF 180 kHz, Q Factor 40, 20 mA DC Current, 490 Ω DC Resistance B82144F1107J000



Category Inductor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	6.5mm
Brand	TDK
Height	6.5mm
Length	9.2mm
Model	B82144F1107J000
Depth	6.5mm
Packaging	Tape & Reel
Mount Type	Axial
Series	LBC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Test Frequency	0.08MHz
Core Material	Ferrite
Inductance	100mH
Standards/Approvals	RoHS, IEC
Maximum DC Current	20mA
Maximum DC Resistance	490Ω
Inductance Tolerance	±5 %
Termination Style	Axial
Maximum Self Resonant Frequency	180kHz
Minimum Quality Factor	40
Lead Pitch	11.5mm
Lead Diameter	0.8mm
TDK 100 mH Ferrite Leaded Inductor, Max SRF	180 kHz, Q:40, 20 mA Idc, 490 Ω Rdc, LBC

Key Features

Inductance value of 100 millihenrys with ±5% tolerance.
Maximum DC current rating of 20 mA to ensure stability under load.
Axial leaded mounting style suitable for PCB designs.
High quality ferrite core material offering excellent magnetic characteristics.
Maximum DC resistance of 490 ohms for efficient performance.
Tested at 0.08 MHz frequency for verification of inductance.
Compact dimensions with 6.5 mm diameter and height.
Lead diameter is 0.8 mm and lead pitch measures 11.5 mm.

Product Description

TDK B82144F1107J000 100 mH Ferrite Leaded Inductor from the LBC series is engineered for reliable performance in electronic applications requiring inductors with stable inductance and high current tolerance. Featuring a ferrite core and axial lead mounting, this inductor offers low noise and effective RF blocking suitable for telecommunications, automotive electronics, energy-saving lamps, and entertainment electronics.

The inductor’s maximum self-resonant frequency is 180 kHz, with a minimum quality factor of 40, ensuring efficient signal filtering and interference suppression. It supports a maximum DC current of 20 mA with a DC resistance of 490 Ω, making it ideal for circuits sensitive to current and resistance specifications.

Construction includes enamel copper wire winding over a ferrite drum core, coated with a flame retardant lacquer for enhanced durability and reliability under continuous operation. The unit’s axial termination style facilitates easy installation on PCBs via wave soldering, supported by tape and reel packaging for automated assembly processes.

Key physical dimensions include a diameter and height of 6.5 mm, length of 9.2 mm, a lead diameter of 0.8 mm, and lead pitch of 11.5 mm. The device operates effectively across a temperature range from -55°C to 125°C, making it suitable for a variety of industrial environments.

Inductance of 100 mH with ±5% tolerance. Maximum DC current rating of 20 mA. Axial lead mounting style for easy PCB installation. Ferrite core construction for magnetic stability. Maximum DC resistance of 490 Ω. Test frequency at 0.08 MHz for inductance verification.

Compact dimensions suitable for space-constrained applications. Wide operating temperature range from -55°C to 125°C. Compliant with RoHS and IEC standards. Packaged in tape and reel for automated manufacturing compatibility.

This TDK leaded inductor is ideal for industrial, telecommunications, automotive electronics, HVAC systems, manufacturing, water treatment, agricultural, and commercial electronic applications requiring reliable passive components with stable electrical characteristics.
