Vero Technologies Double-Sided Stripboard Epoxy Glass Fabric Laminate 220 mm x 100 mm FR4 10-2857

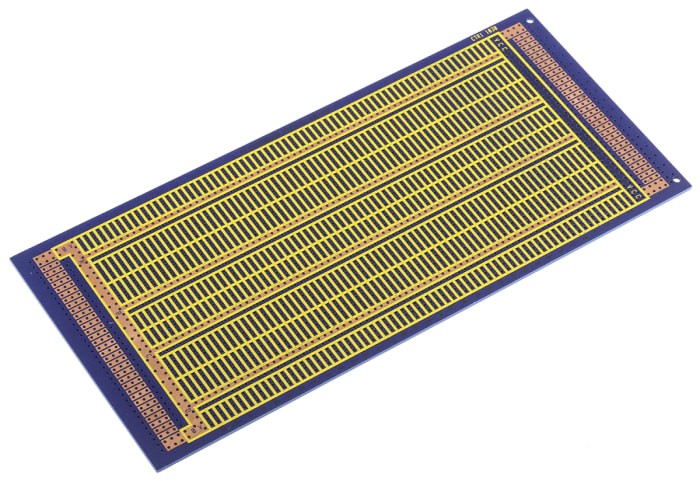

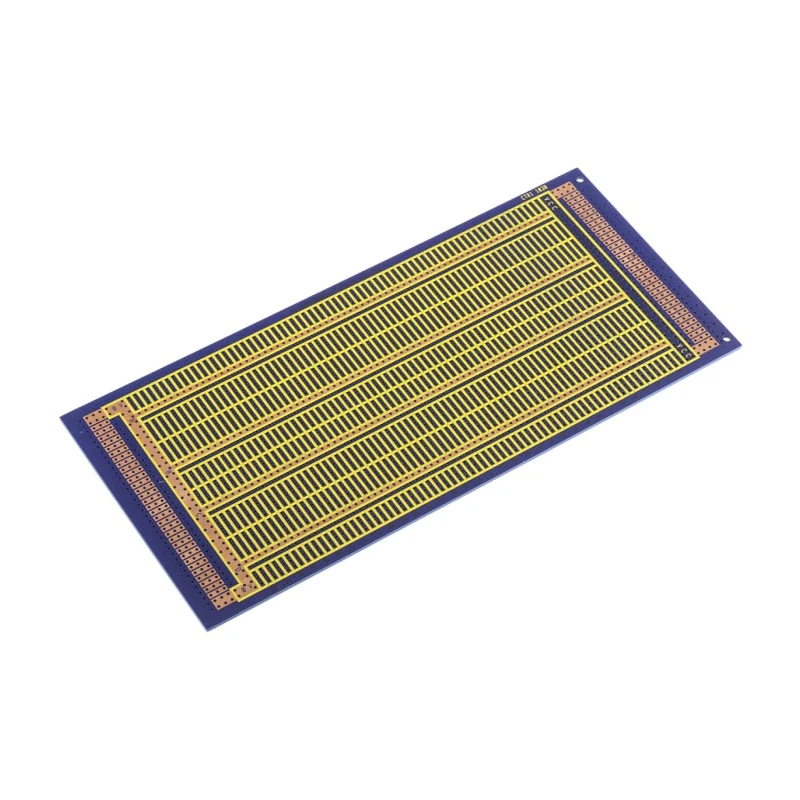

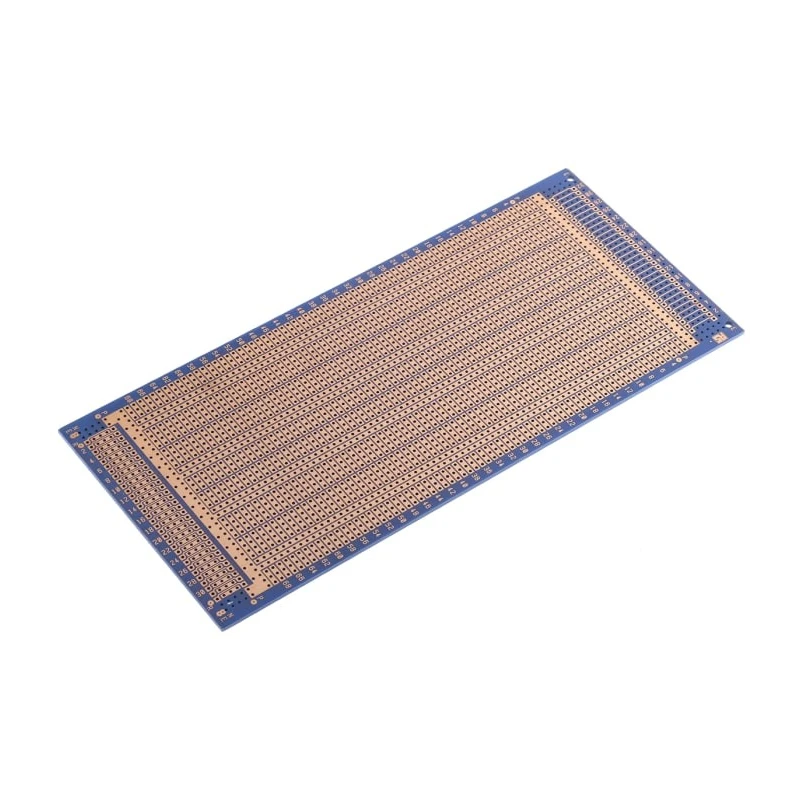

Vero Technologies 10-2857 is a high-quality double-sided stripboard constructed from epoxy glass fabric laminate with a FR4 material grade. Measuring 220 mm x 100 mm with a thickness of 1.6 mm, this stripboard is ideal for electronic prototyping and complex circuit designs requiring reliable and sturdy interconnections.

The board features a colander ground plane coated with solder resist on the component side, enhancing high-speed operation by dissipating switching spikes effectively. The 1 mm pre-drilled holes are arranged on a 2.54 mm matrix, facilitating easy component placement and soldering.

The stripboard supports DIN 41612 indirect edge connectors and is compatible with KM6-II eurocard sub-rack systems, making it versatile for advanced electronic assemblies and microprocessor applications where flexibility and density are crucial.

Manufactured in the United Kingdom, the board uses premium FR4 epoxy glass laminate, known for excellent durability, electrical insulation properties, and mechanical strength. The plated through holes directly link top and bottom pads, providing robust solder joints essential for applications subjected to vibration.

This stripboard is widely used in industrial, laboratory, electronic manufacturing, and research environments for developing prototype circuits, testing, and educational purposes. The Stripboard measures 220 mm in length and 100 mm in width with a board thickness of 1.6 mm.

Features double-sided construction with 1 mm pre-drilled holes arranged on a 2.54 mm matrix. Incorporates a solder resist coated colander ground plane for high-speed, glitch-free operation. Compatible with DIN 41612 indirect edge connectors and KM6-II eurocard sub-rack systems.

Designed for microprocessor applications requiring high density and screening. Manufactured in the United Kingdom with premium quality FR4 epoxy glass laminate material. The soldered plated through holes provide solid and reliable electrical connections.

Suitable for use in laboratory, electronic prototyping, and manufacturing environments. Explore a wide selection of prototyping boards and electronic components at EnvMart for your industrial and laboratory needs.
