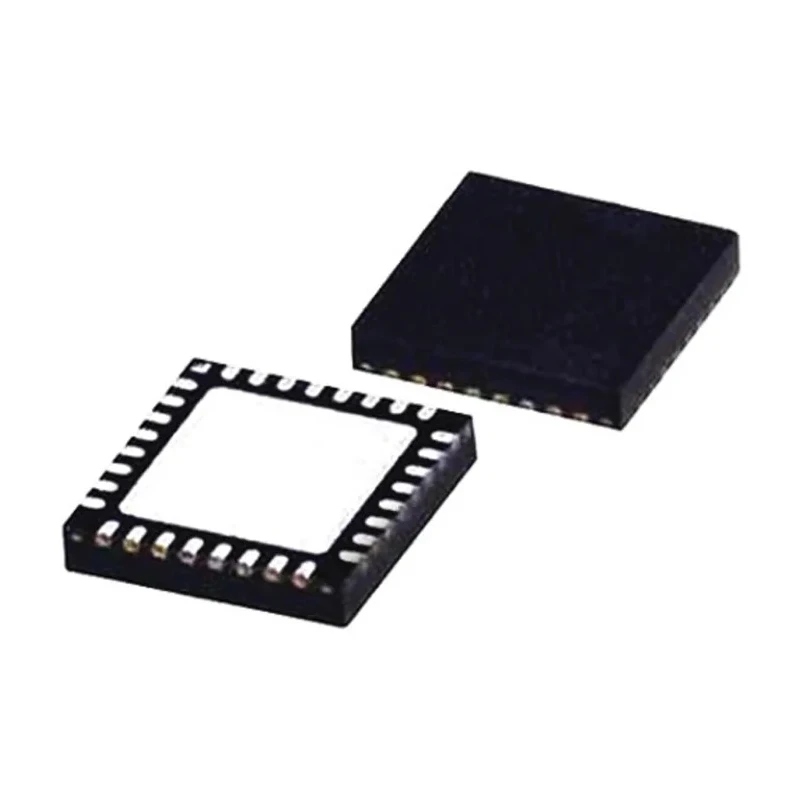

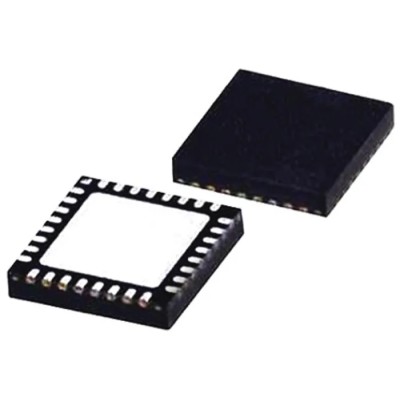

NXP NFC Reader Transmitter 32-Pin HVQFN-32, Operating Frequency 13.56MHz, Data Rate up to 848kbps, Surface CLRC66301HN,551
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 0.95mm |
| Operating Temperature Range | -20 to +85°C |
| Length | 5.1mm |
| Model | CLRC66301HN,551 |
| Width | 5.1mm |
| Mount Type | Surface |
| Series | CLRC663 |
| Maximum Operating Temperature | 85°C |
| Package Type | HVQFN-32 |
| Sub Type | Transmitter |
| Minimum Operating Temperature | -25°C |
| Pin Count | 32 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Host communication | SPI, I²C, UART |
| Modulation Technique | BPSK, ASK |
| OTA Data Rate | up to 848kbps |
| RF Operating Frequency | 13.56MHz |
| Operating Band 1 Frequency | 27.12MHz |
| Number of Operating Bands | 1 |
Key Features
- Supports ISO/IEC 14443A/B, FeliCa, ISO/IEC15693 standards.
- Enables P2P passive initiator mode compliant with ISO/IEC 18092.
- Host interface consists of SPI, I²C, and UART communication protocols.
- Operates on a supply voltage range from 3.0 to 5.5 volts DC.
- Wide operating temperature range from minus 25 to 85 degrees Celsius.
- Compact 32-pin HVQFN package measuring 5.1mm by 5.1mm by 0.95mm.
- Includes low-power card detection to optimize energy consumption.
- Compatible with multiple MIFARE card types including Classic, Ultralight, PLUS, and DESFire.
Product Description
NXP CLRC66301HN,551 is a new NFC Reader Transmitter designed for reliable contactless communication applications. It operates at 13.56MHz frequency, supporting fast OTA data rates up to 848kbps, making it suitable for advanced identification and payment systems.
This device conforms to multiple standards including ISO/IEC 14443A/MIFARE, ISO/IEC 14443B, FeliCa, ISO/IEC15693, ICODE EPC UID, and supports ISO/IEC 18000-3 mode 3 EPC Class-1 HF. It also enables peer-to-peer passive initiator mode compliant with ISO/IEC 18092 for versatile wireless communication.
The CLRC66301HN,551 supports host communications through SPI, I²C, and UART interfaces for flexible integration with various controller platforms. Its supply voltage range from 3.0 to 5.5V and wide operating temperature range of -25°C to 85°C ensures robustness in varied environments.
Encapsulated in a compact 32-pin HVQFN package measuring 5.1mm by 5.1mm by 0.95mm, it is designed for surface mount technology, enabling efficient PCB design and assembly. Built-in low-power card detection enhances battery life and reduces power consumption in portable applications.
This NFC reader is compatible with popular MIFARE card technologies including MIFARE Classic 1K/4K, Ultralight, Ultralight C, PLUS, and DESFire, providing broad utility across contactless smart card systems.
The CLRC663 Series offers a highly integrated transceiver solution suitable for industrial, commercial, and consumer electronics requiring secure RFID and NFC communication capability.
Explore the extended series and compatible RF ICs for tailored solutions in RFID, contactless payment, and access control systems. Browse the Electronics & Electricals category on EnvMart for more NXP communication modules and semiconductors.
Supports ISO/IEC 14443A/B, FeliCa, ISO/IEC15693 standards. Enables P2P passive initiator mode compliant with ISO/IEC 18092. Host interface: SPI, I²C, UART. Operating voltage: 3.0 - 5.5 VDC. Temperature range: -25°C to +85°C.
Package: 32-pin HVQFN, 5.1 x 5.1 x 0.95 mm. Low-power card detection capability. Compatible with MIFARE Classic, Ultralight, PLUS, DESFire cards. Surface mount device suitable for automated PCB assembly.
Explore more products in our RFID Reader category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a frequency of 13.56MHz.
This model supports a data rate of up to 848kbps.
It supports SPI, I²C, and UART communication protocols for host interface.
The supply voltage range is from 3.0 to 5.5 volts DC.
It operates within a temperature range of -25°C to 85°C.
The compact package measures 5.1mm by 5.1mm by 0.95mm.
It is compatible with MIFARE Classic, Ultralight, PLUS, and DESFire card types.
Yes, it includes low-power card detection to optimize energy consumption.
This device has a pin count of 32.
It utilizes BPSK and ASK modulation techniques.
Yes, it is designed as a surface mount device suitable for automated PCB assembly.
It supports ISO/IEC 14443A/B, FeliCa, ISO/IEC15693 standards and is compliant with ISO/IEC 18092.
