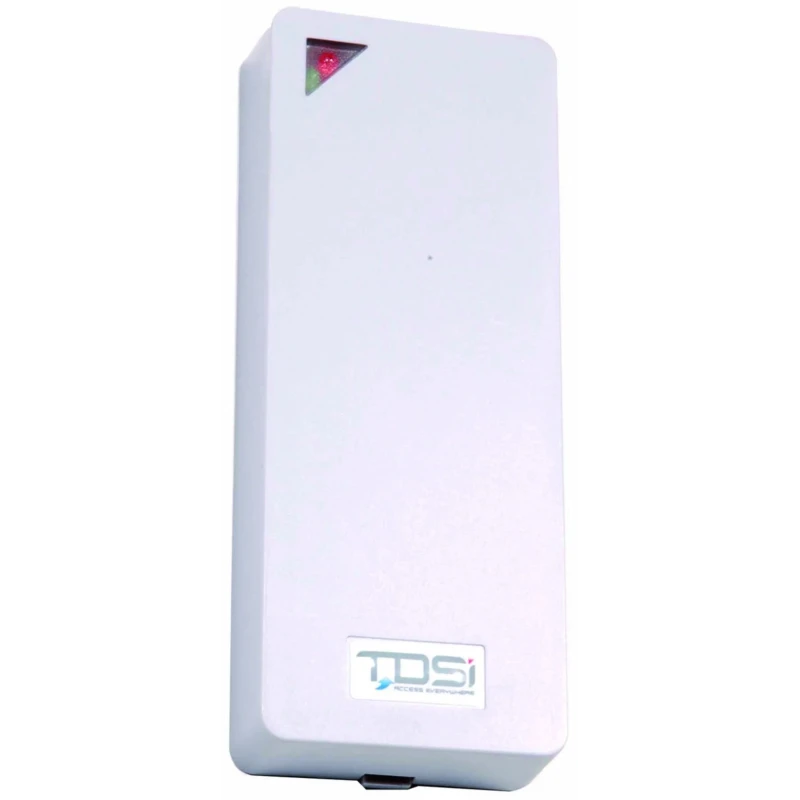

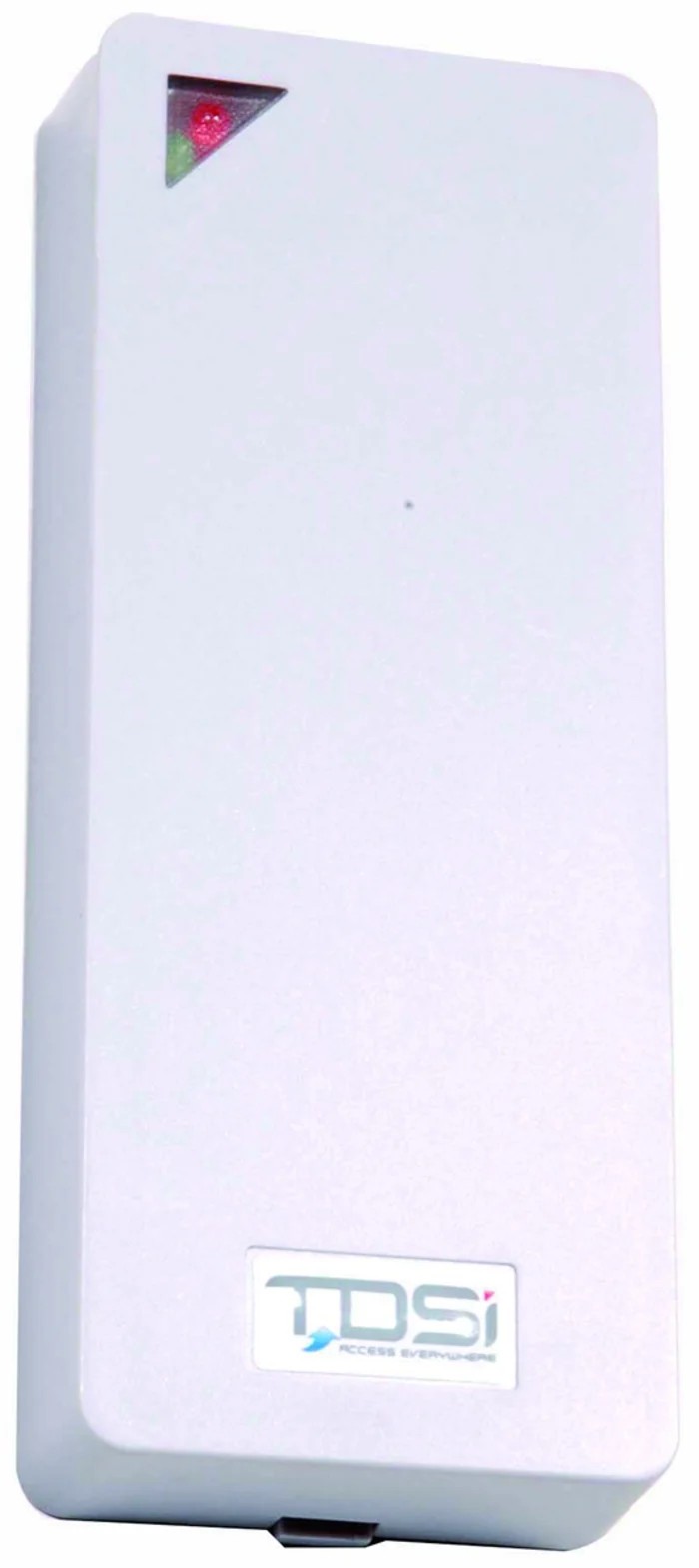

TDSi Proximity Reader With Visual Indication DC Operation 42x125x17 mm 5002-4003
Specifications
| Country of Origin | China |
|---|---|
| Capacity | 1000 cards |
| Brand | TDSi |
| Doors | 1 |
| Operating environment | -20°C to +60°C, 0 %RH to 95 %RH (non-condensing) |
| Status Indicator | Visual Indication |
| AC or DC Operation | DC |
| Dimensions Reader | 42 x 125 x 17 mm |
| Weight Reader | 30 g |
| Readers | 1 or 2 TDSi SOLOgarde readers |
Key Features
- Features a visual status indicator for user feedback.
- Operates on DC power supply ranging from 10 V to 14 V at 100 mA maximum.
- Compact reader dimensions of 42 x 125 x 17 mm and lightweight at 30 g.
- Supports capacity of up to 1000 cards enhancing access control management.
- Suitable for operating environments from -20°C to +60°C with 0% to 95% non-condensing humidity.
- Compatible with 1 or 2 TDSi SOLOgarde readers controlling 1 door.
- Utilizes MIFARE smart card technology for improved security over traditional proximity methods.
- Programming via card packs enables quick commissioning.
Product Description
TDSi 5002-4003 Proximity Reader with visual indication is a DC-powered access control reader designed for secure entry systems under the TDSi SOLOgarde stand-alone access control system.
The reader measures 42 x 125 x 17 mm and weighs 30 grams, making it compact and easy to install. It operates reliably within a temperature range of -20°C to +60°C and humidity levels of 0% to 95% non-condensing.
This proximity reader includes a clear visual indicator to inform users of access status, enhancing usability in industrial, commercial, and institutional security setups. It supports a card capacity of up to 1000 cards and connects with one or two TDSi SOLOgarde readers to control a single door, delivering flexible access control solutions.
The reader works on a DC power supply of 10 V to 14 V at 100 mA, ensuring efficient and stable operation.
The system employs MIFARE smart card technology, which significantly improves security compared to traditional proximity methods. Card programming is facilitated through card packs for rapid deployment.
An innovative handheld programmer device allows easy deletion of cards, ensuring effective control over access credentials and preventing unauthorized shadow cards. Features a visual status indicator for user feedback. Operates on DC power supply ranging from 10 V to 14 V at 100 mA maximum.
Compact reader dimensions of 42 x 125 x 17 mm and lightweight at 30 g. Supports capacity of up to 1000 cards enhancing access control management. Suitable for operating environments from -20°C to +60°C with 0% to 95% non-condensing humidity.
Compatible with 1 or 2 TDSi SOLOgarde readers controlling 1 door. Utilizes MIFARE smart card technology for improved security over traditional proximity methods. Programming via card packs enables quick commissioning. Handheld programmer allows easy card deletion, preventing shadow card issues.
This product is ideal for industrial, commercial, and institutional settings requiring secure and manageable access control solutions. Explore more security access control devices and components from EnvMart's extensive TDSi product range.
