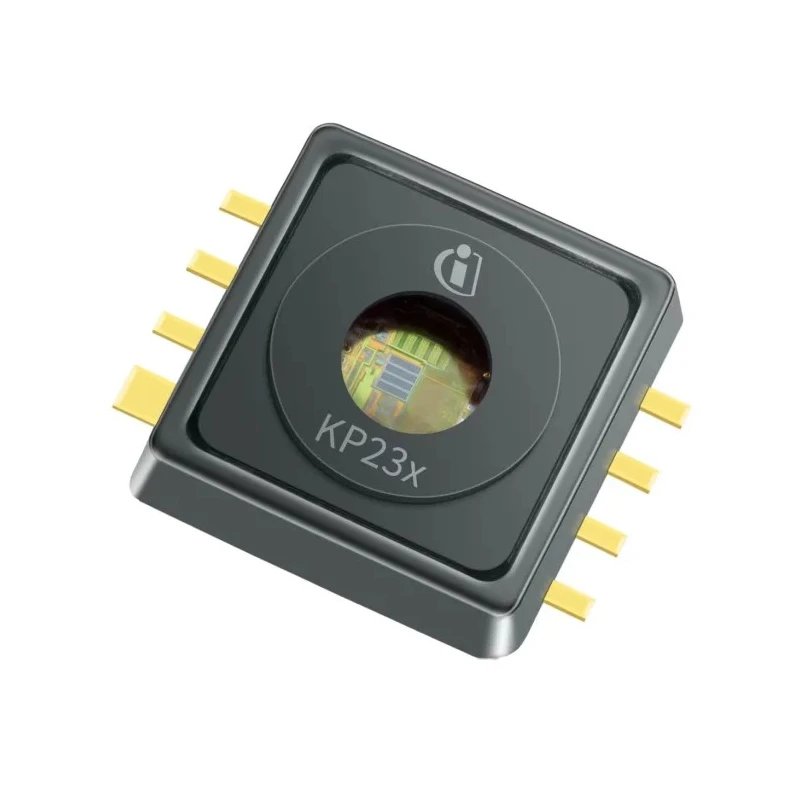

Infineon Absolute Pressure Sensor Surface-Mount 8-Pin DSOF Package KP235XTMA1

Infineon KP235XTMA1 Absolute Pressure Sensor is a high-precision sensor IC designed for electronic systems requiring reliable absolute pressure measurement. This surface-mount device features an 8-pin DSOF package measuring 7mm by 7mm, facilitating compact integration into PCB designs especially in automotive and industrial environments.

The sensor operates over a wide temperature range from -40°C to 125°C, maintaining stable output and sensitivity. Its typical sensitivity is 53.3mV/kPa, providing a clear and proportional voltage response over the pressure range. The analogue output voltage spans from 0.1V minimum at the low pressure end to 4.85V maximum at maximum operating pressure, facilitating straightforward interface with ADCs or measurement circuits.

Operating pressures are measured within 40kPa to 115kPa range, with a maximum overload tolerance of 600kPa for transient pressure events, ensuring robust performance in fluctuating environments. The supply voltage range accommodates from -0.3V minimum to 6.5V maximum, protecting internal circuitry and allowing versatile power sourcing.

The KP235XTMA1 conforms to the AEC-Q101 automotive standard, making it suitable for engine bay absolute manifold pressure monitoring and other vehicle electronics requiring rigorous quality standards. It is also ideal for environmental monitoring, portable instrumentation, and embedded sensor modules where space is at a premium.

Wide temperature range from -40°C to 125°C operation. Analogue output voltage from 0.1V to 4.85V proportional to pressure. Sensor sensitivity of 53.3mV/kPa for accurate pressure-to-voltage conversion. Robust overload pressure protection up to 600kPa.

Compact surface-mount DSOF 8-pin package measuring 7mm x 7mm. Designed for automotive and industrial precision pressure sensing. Compatible with low-voltage DC supply ranging from -0.3V to 6.5V.

This absolute pressure sensor is widely used in industrial, automotive, and environmental applications demanding precise atmospheric pressure readings with compact size and robust performance. Explore similar Pressure Sensor ICs and related sensor technologies on EnvMart.
