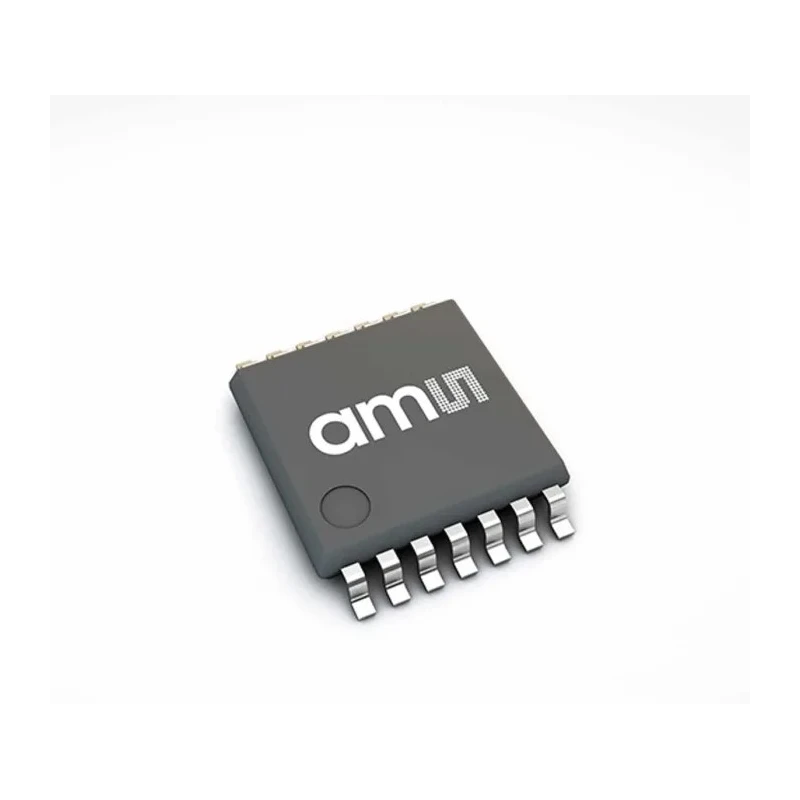

ams OSRAM 1 Axis Surface Hall Effect Sensor -0.3 V to 7 V, UVW, SPI, PWM Interface, TSSOP 14-Pin AS5147U-HTSM

ams OSRAM AS5147U-HTSM is a high-resolution rotary position sensor designed for precise absolute angle measurement over 360 degrees. It operates with a supply voltage range from -0.3 V up to 7 V, featuring multiple output interfaces including UVW, SPI, and PWM in a compact 14-pin TSSOP package.

The sensor incorporates advanced dynamic angle error compensation (DAEC™) technology that delivers nearly zero latency at high rotational speeds, making it ideal for fast-moving automotive and industrial applications. Its dynamic filter system (DFS™) enhances signal quality by reducing noise during low-speed rotations. The device’s robust construction effectively suppresses interference from homogenous external stray magnetic fields, ensuring consistent and stable readings.

Communication is facilitated via a standard 4-wire SPI interface with CRC protection, allowing a host microcontroller to read 14-bit absolute angle position data and program non-volatile device settings securely without requiring dedicated programming tools. Incremental movements are available through ABI signal outputs that provide a resolution of up to 16989 steps or 4096 pulses per revolution, enabling precise control and position tracking in demanding systems.

The AS5147U-HTSM sensor supports a wide ambient operating temperature range from -40°C to 150°C, making it suitable for harsh automotive and industrial environments. It complies with key industry standards such as AEC-Q100 Grade 0 for automotive use and ISO26262 functional safety. Built using reliable CMOS technology, it delivers a supply current of 98 mA within a compact 5 mm length TSSOP package designed for surface mount installations.

High resolution absolute rotary position measurement over 360 degrees. Dynamic angle error compensation for minimal latency at high speeds. Noise reduction via dynamic filter system for low-speed operation. Robust magnetic interference suppression for reliable performance.

Secure 4-wire SPI interface with CRC for accurate digital communications. Incremental ABI outputs with high step and pulse resolutions. Wide temperature range from -40°C to 150°C for automotive/industrial use. Compliant with AEC-Q100 Grade 0 and ISO26262 automotive safety standards.

Built on CMOS technology with 98 mA supply current. Compact 14-pin TSSOP surface-mount package with 5 mm length.

This sensor is engineered for demanding industrial, automotive, and electronic applications requiring precise angle sensing and robust reliability. It is suited for integration in motion control systems, motor feedback, robotics, and safety-critical environments. For further product integration and design, datasheets, 3D models, and technical documents are available to assist embedded system designers and engineers.
