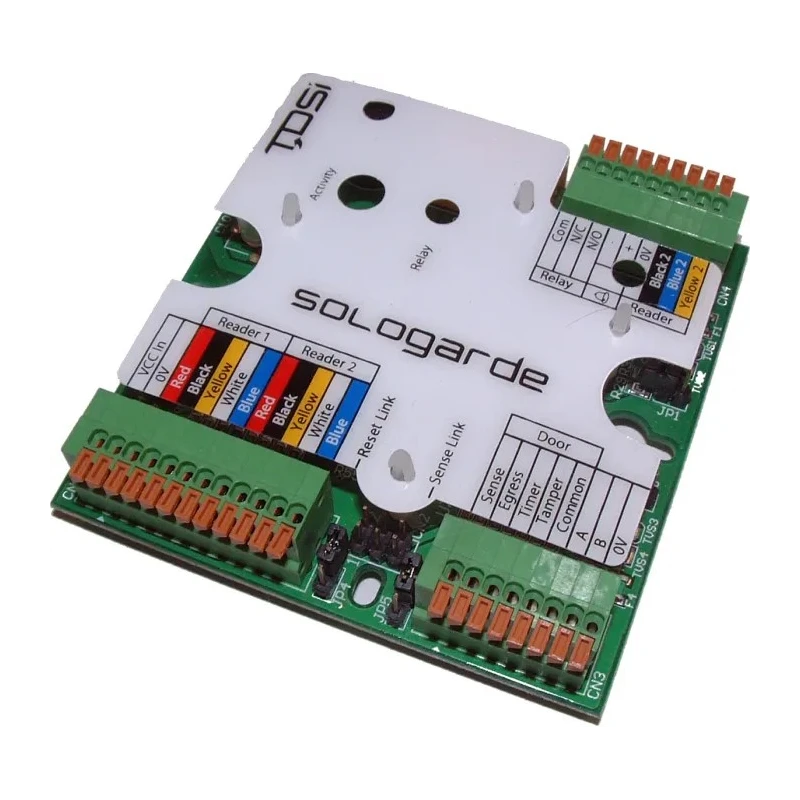

TDSi SOLOgarde Door Entry Button including Control Access Unit 10, 14V 5002-4000

TDSi 5002-4000 SOLOgarde Door Entry Button including Control Access Unit operates at 10, 14V supply voltage and is ideal for secure access control systems in commercial and institutional environments.

This stand-alone panel controller is designed to provide both installers and users with a security solution that is simple to set up and operate. The control unit is mounted securely on the protected side of the door, separate from the access reader, enhancing security and preventing tampering.

Ideal applications include lecture theatres, meeting rooms, and other restricted access areas requiring controlled entry.

The system uses MIFARE smart card technology which offers significantly improved security compared to traditional proximity methods. Cards are programmed easily through the reader, facilitating rapid system commissioning.

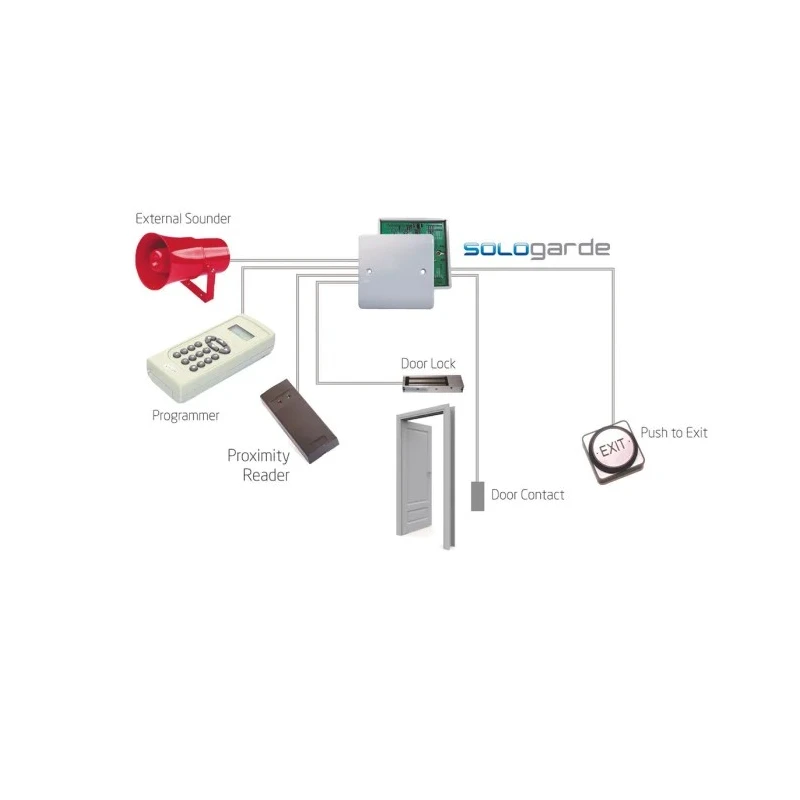

An innovative handheld programmer is provided to delete cards efficiently, eliminating the need for managing shadow cards and simplifying user management. The unit supports up to 1000 cards and can work with one or two SOLOgarde readers controlling a single door, providing flexible access control configurations.

Operating conditions range from -20°C to +60°C with 0 to 95% relative humidity (non-condensing), making it suitable for varied environmental conditions. The compact reader measures 80 mm in height and width and has a depth of 18 mm, with a lightweight design of 8 grams ensuring unobtrusive installation.

Power consumption is low, with voltage requirements from 10 V dc to 14 V dc at a maximum current of 100 mA, supporting energy-efficient operation. Stand-alone panel controller offers easy installation and operation. Control unit mounted on secure side separate from reader for maximum security.

Ideal for access control in lecture theatres and meeting rooms. Programmable using MIFARE smart card technology for enhanced security. Card programming via reader allows quick system deployment. Handheld programmer enables easy deletion of cards.

Wide operating environment tolerance. Capacity for up to 1000 cards. Compact and lightweight reader dimensions. Low power consumption specification.

This product is suitable for industrial, commercial, and institutional access control applications and provides an essential component for security alarm and sensor systems. Browse further access control solutions and door entry components on EnvMart.
