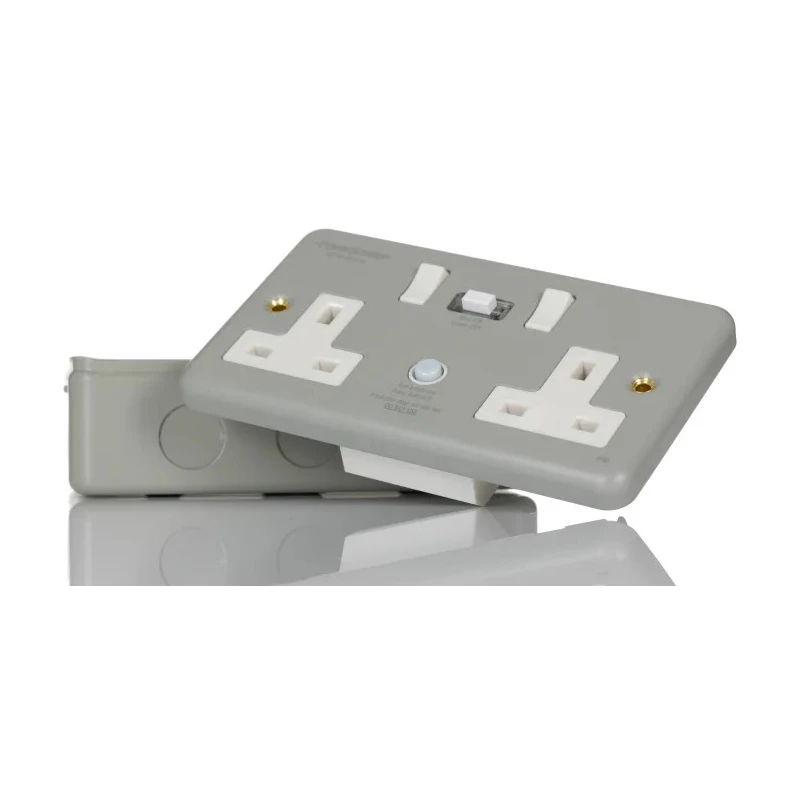

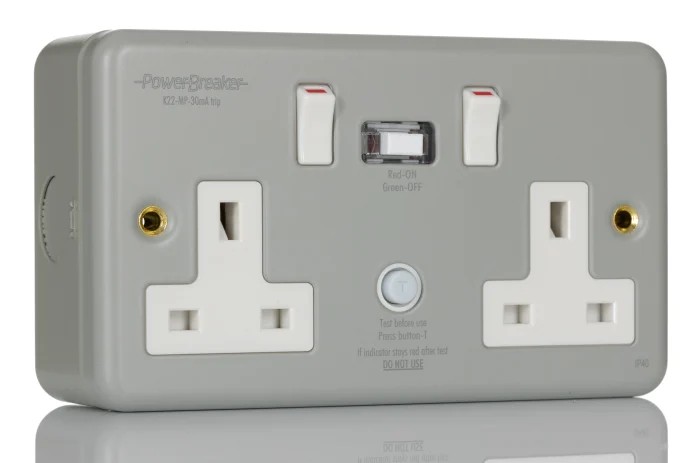

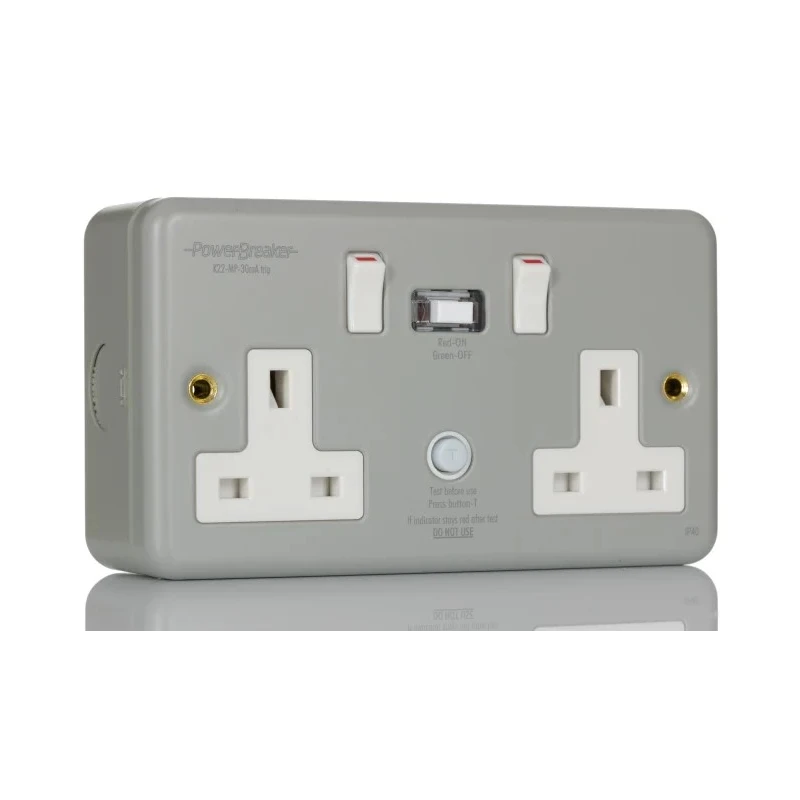

Powerbreaker PowerBreaker H 13A Dual Pole 2 Gang Passive RCD Socket with Flame Retardant Casing Surface Switched K22MPAPN

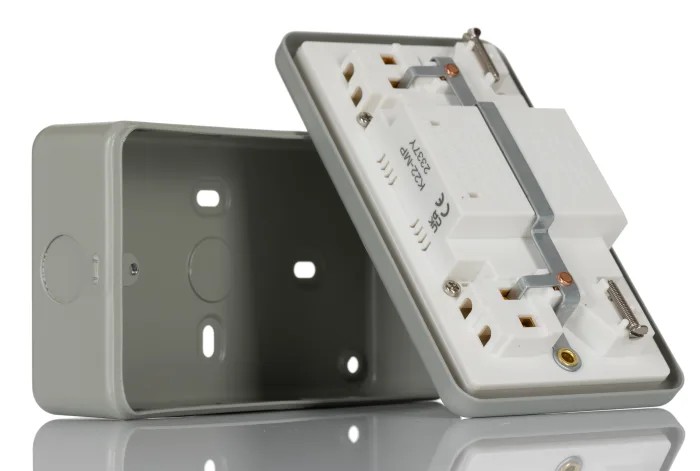

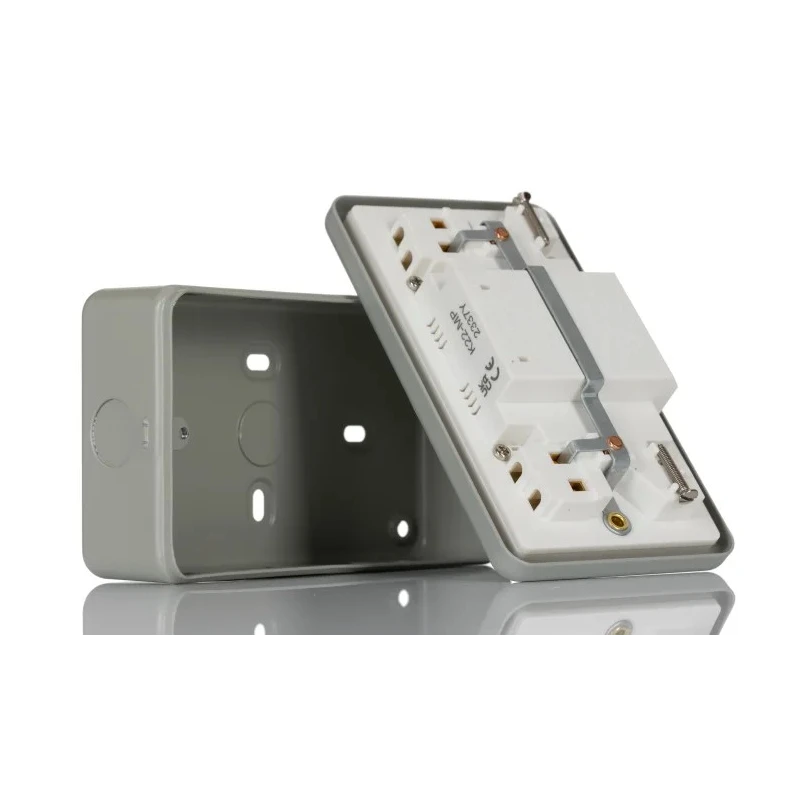

Powerbreaker K22MPAPN Passive RCD Socket is a 2 gang, dual pole device rated for 230VAC voltage and 13A current, designed to provide permanent leakage current detection and protection. Its flame retardant casing combined with white plastic and epoxy coated metal components ensures durable and safe operation. The surface switched socket includes manually reset dual button operation compliant with EN 61009 (Clause 9.21), BS7288, BS1363, and BS EN 61543 standards.

This socket delivers enhanced safety against earth faults with a trip current setting of 30mA and a rapid typical trip speed of less than 20ms, responsive even to pulsating DC earth faults. The inclusion of twin earth terminals and a high intensity LED power on indicator improves installation and operational feedback.

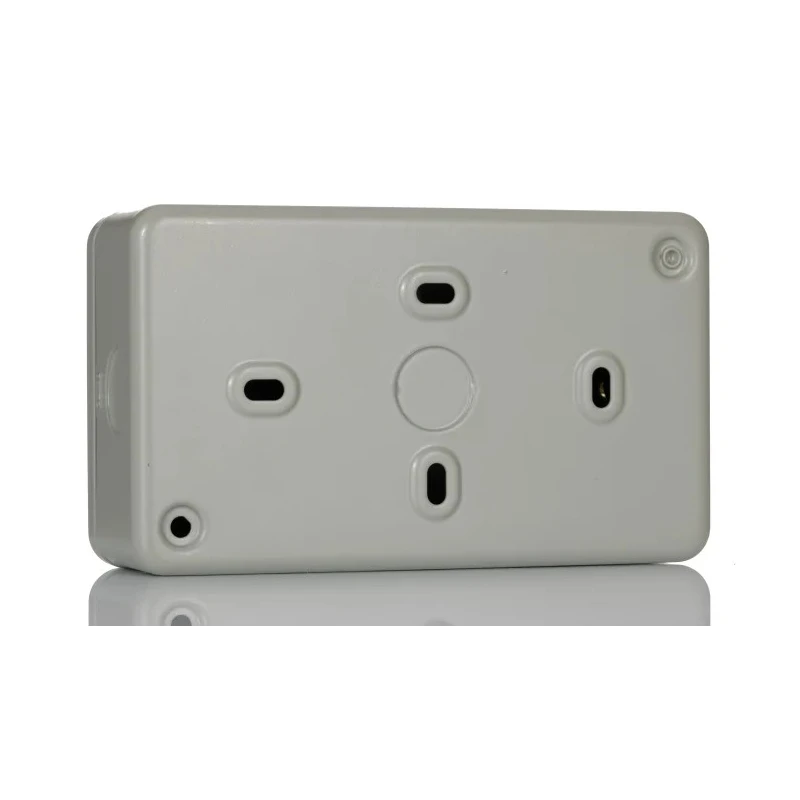

With an IP40 rating, the socket is suitable for indoor domestic and industrial environments where flame retardant material and fast-reactive safety devices are required. Its compact size with 86mm height, 31mm depth, and 11mm faceplate depth ensures compatibility with surface mounting applications.

The PowerBreaker H series K22MPAPN model leverages piezo actuated technology to provide faster response times and improved protection over conventional designs. Manufactured in Malaysia, this socket supports industrial, commercial, and residential use where reliable RCD protection is critical.

Features dual pole protection suitable for 13A current rating. Constructed with flame retardant casing for enhanced safety. Includes surface mounting for easy installation. Manually reset via dual button operation for user control.

Complies with EN 61009 (Clause 9.21) and multiple British standards. Equipped with twin earth terminals and a grey epoxy coated metal faceplate. Offers IP40 ingress protection rating for indoor environments. Incorporates passive RCD technology with a typical trip speed under 20 milliseconds.

Designed with high intensity LED power on indicator for status monitoring. Manufactured in Malaysia ensuring consistent quality standards.

Use this Powerbreaker RCD socket in domestic electrical systems, industrial panels, or commercial installations requiring reliable residual current detection and quick disconnection for safety compliance.
