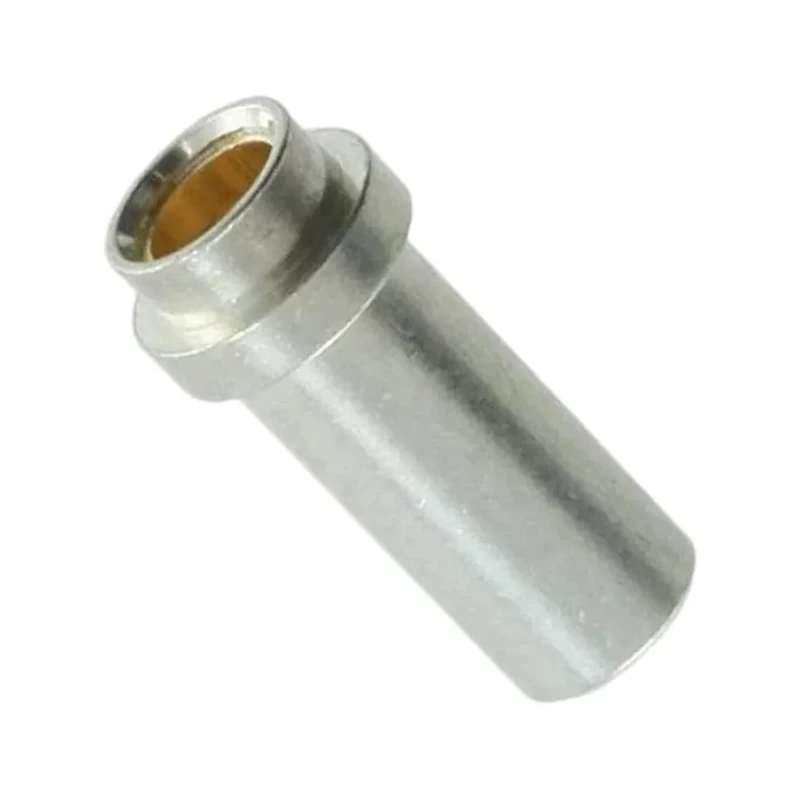

HARWIN H34 Discrete Socket, Female, 20A Current, Gold Plated Beryllium Copper Alloy Contact, Brass Housing, 10.6mm H3490-01
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 20A |
| Length | 10.6mm |
| Model | H3490-01 |
| Gender | Female |
| Housing Material | Brass |
| Contact Material | Beryllium Copper Alloy |
| Series | H34 |
| Termination Type | Solder |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
Key Features
- Compatible with 2.00mm diameter mating pins on PCBs.
- Contact clip with 6 fingers provides high vibration and shock resistance.
- Gold plating on contacts ensures reliable and corrosion-resistant connection.
- Brass housing enhances durability and electrical conductivity.
- Supports through hole mounting with solder termination for secure installation.
- Meets RoHS standards for environmental compliance.
- Designed for industrial electronics and power connector applications.
- Manufactured in the United Kingdom ensuring high-quality craftsmanship.
Product Description
HARWIN H3490-01 is a high-quality discrete socket designed for electronic and industrial applications requiring a secure, reliable female contact. This socket supports a continuous current rating of 20 amperes and measures 10.6mm in length. Featuring beryllium copper alloy contacts with gold plating, it offers excellent electrical conductivity and corrosion resistance, essential for harsh environments and vibration-prone settings.
The socket utilizes a 6-finger contact clip system which provides superior mechanical retention and resilience against shock and vibration. Its brass housing ensures mechanical stability and robust durability during prolonged use, while the solder termination type facilitates reliable PCB through-hole mounting.
Compliant with RoHS standards, the H3490-01 model supports environmentally responsible manufacturing practices. It is specifically engineered to mate with 2.00mm diameter pins, making it suitable for a broad range of PCB connector applications in sectors such as industrial equipment, telecommunications, and power management systems.
The product is made in the United Kingdom, reflecting stringent quality controls and advanced manufacturing processes. It is a preferred choice for designers requiring consistent performance and longevity in demanding environments.
Female discrete socket for 20A current applications. Gold-plated beryllium copper contacts offer excellent conductivity and corrosion resistance. Six-finger contact clip design enhances vibration resistance. Brass housing provides durability and mechanical strength.
Solder type termination for PCB through-hole mounting. Complies with RoHS standards for hazardous substances control. Designed for demanding industrial and electronic connector uses. Manufactured in the United Kingdom ensuring reliability.
Discover a comprehensive range of electronic connectors and Discrete Sockets at EnvMart, suitable for various industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a continuous current rating of 20 amperes, making it suitable for applications requiring significant power.
The HARWIN H3490-01 measures 10.6mm in length, allowing for compact integration into electronic designs.
It features beryllium copper alloy contacts with gold plating for excellent conductivity and corrosion resistance, while the housing is made of brass for enhanced durability.
This socket utilizes a solder termination type for secure PCB through-hole mounting, ensuring reliable electrical connections.
It is designed to mate with 2.00mm diameter pins on PCBs, making it versatile for various applications.
The HARWIN H3490-01 supports through-hole mounting, which is commonly used in PCB applications for stability and reliability.
This discrete socket is designed with a straight orientation, suitable for direct connections on PCBs.
Yes, the HARWIN H3490-01 complies with RoHS standards, ensuring it meets regulations for hazardous substances control.
It is specifically engineered for industrial electronics and power connector applications, suitable for sectors like telecommunications and power management systems.
The socket features a six-finger contact clip design that provides high vibration and shock resistance, ensuring reliable connections in demanding environments.
This product is manufactured in the United Kingdom, reflecting high-quality craftsmanship and stringent quality controls.
The HARWIN H3490-01 belongs to the H34 series, which includes various electronic connectors designed for reliability and performance.
