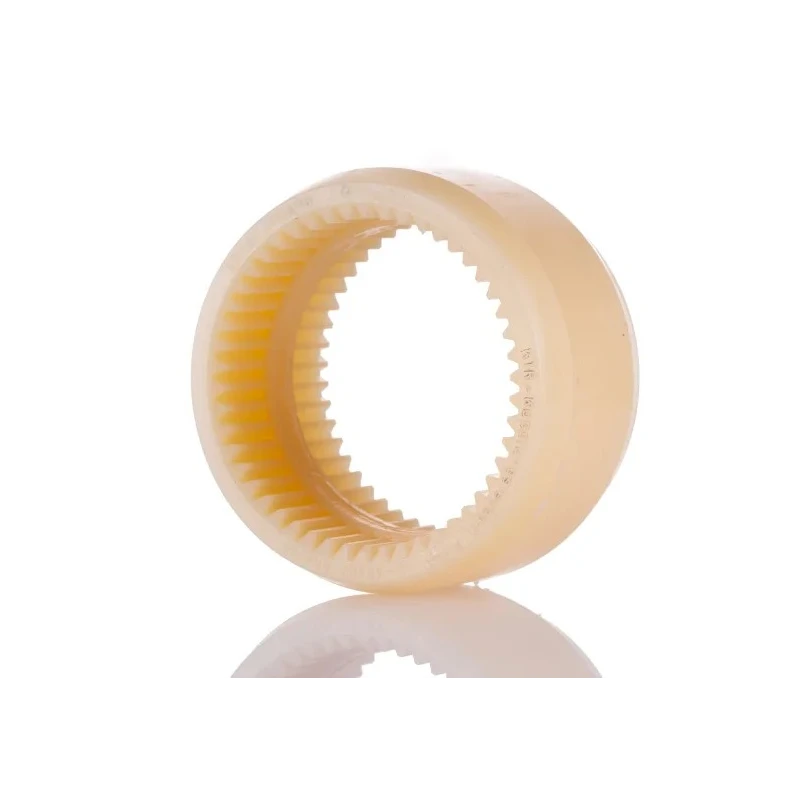

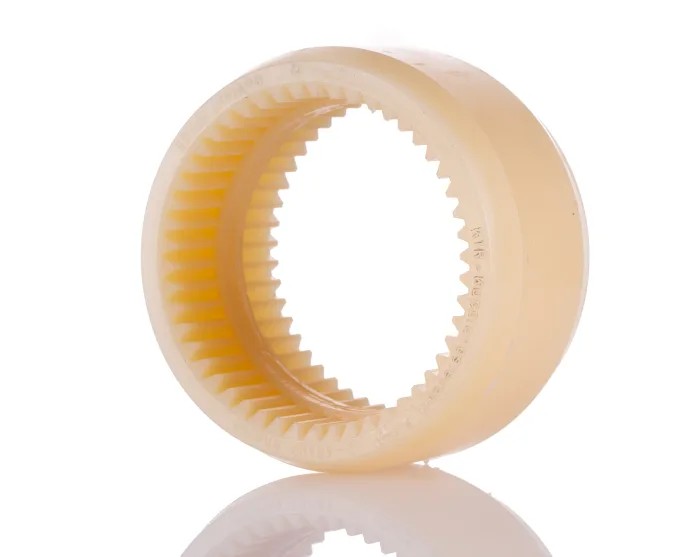

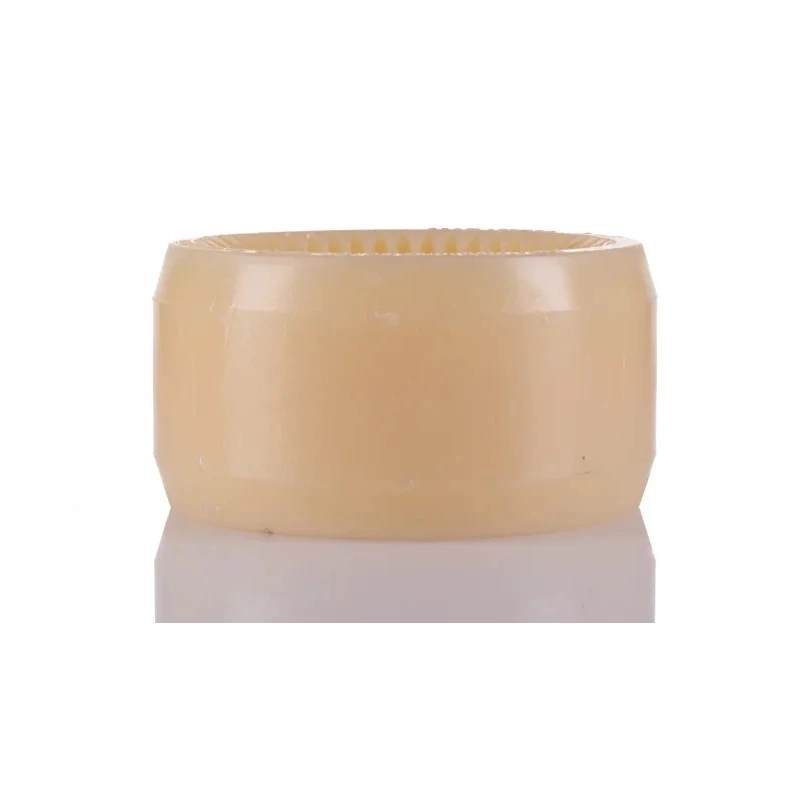

KTR 95 mm OD, 50 mm Length Polyamide Flexible Coupler BOWEXM48-SLEEVE-PB

KTR BOWEXM48-SLEEVE-PB flexible coupler features a 95 mm outer diameter and 50 mm length, manufactured from polyamide material designed for dependable mechanical power transmission applications. This coupler is part of the BoWex series utilizing curved-tooth gear technology that achieves flexible yet torsionally rigid shaft connections capable of effectively compensating axial, radial, and angular shaft misalignments.

The material combination of steel hubs with a polyamide sleeve delivers a maintenance-free operation with significantly reduced friction on mating teeth. Unlike metallic couplings prone to corrosion during dry running, this composite material design operates without lubrication or ongoing maintenance.

BoWex curved-tooth gear couplings feature double cardanic operation, virtually eliminating restoring forces from angular and radial displacements. They also avoid periodic angular velocity fluctuations, ensuring smooth power transmission and extended service life.

The smooth, hard polyamide surface offers excellent thermal stability and outstanding resistance to various lubricants, fuels, hydraulic fluids, and solvents, making it ideal for aggressive industrial environments. This flexible coupler supports continuous usage within a maximum operating temperature of 100°C, making it suitable across diverse sectors including food processing, textile, printing, pharmaceutical, chemical processing, offshore units, sewage technology, and mobile washing systems.

Installation is straightforward, with the ability to mount both vertically or horizontally without special tools. The BoWex series includes three components supplied separately: two steel coupling hubs and one polyamide gear coupling sleeve, allowing flexibility in assembly and maintenance.

Constructed for flexible torque transmission with curved-tooth gear technology. Maintenance-free operation due to the nylon and steel material combination. Effective absorption of axial, radial, and angular misalignment.

Torsionally rigid design facilitating reliable power transfer. Short shaft distance for compact mechanical assemblies. Resistant to operating temperatures up to 100°C. High resistance to industrial lubricants, fuels, and chemicals for prolonged durability.

Widely applicable across industries including food, pharmaceutical, chemical, and more. Comprises three separately sold parts: two hubs and one sleeve for flexible configurations. For ease of sourcing and detailed information, explore the Mechanical Power Transmission Coupler category on EnvMart.
