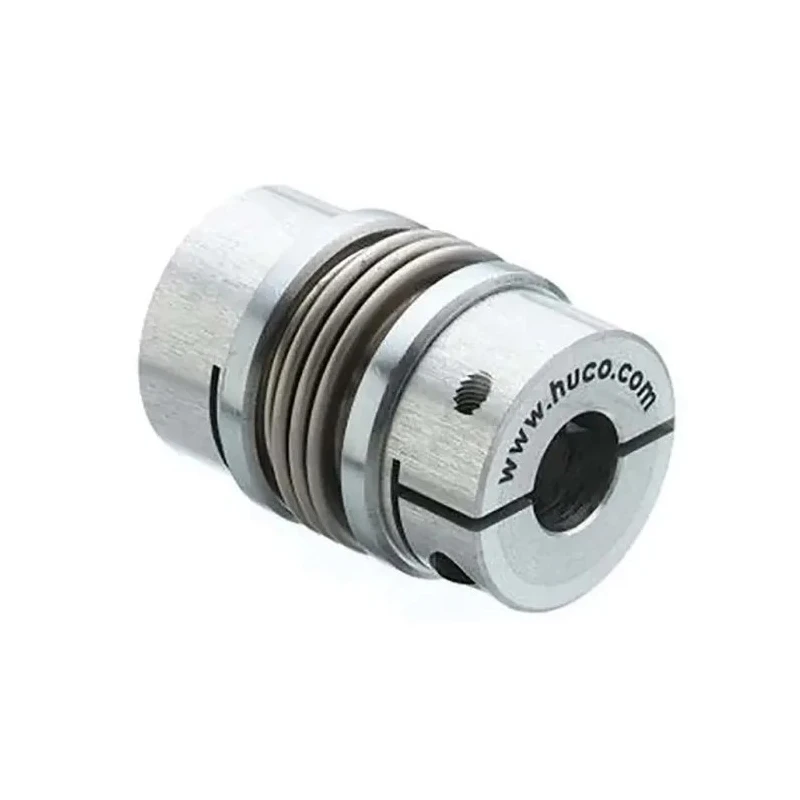

Huco Flexible Coupler Aluminium Clamp Style 22 mm Bore 71 mm Length 12800 rpm Max Speed 18 Nm Torque Rating Model 593.45.4949

Huco 593.45.4949 Flexible Coupler is a precision mechanical power transmission component engineered to accommodate shaft misalignment while transmitting torque efficiently in industrial machinery. Constructed with aluminium hubs and stainless steel bellows, it provides durability alongside excellent kinematic properties.

The clamp style design assures a secure fit with a bore size of 22 mm at both ends, and an overall length of 71 mm. This model operates at speeds up to 12800 rpm with a torque capacity of 18 Nm, suitable for a wide range of mechanical power transmission tasks.

The torsional stiffness of 15000 Nm/rad enhances torque transmission accuracy. The coupling allows angular misalignment up to 2°, parallel offset up to 0.25 mm, and axial movement of 0.5 mm, providing flexibility to accommodate machine shaft movements and vibrations.

Engineered for operation in demanding environments, it supports temperatures from -30°C to 120°C. The Flex K series coupler design optimizes performance without additional approvals or standards certifications.

Constructed from aluminium alloy hub material with stainless steel bellows for longevity. Clamp style shaft connection ensures ease of installation and reliable coupling. Rated for maximum rotational speed of 12800 rpm and torque of 18 Nm.

Accommodates minor misalignments with angular, parallel, and axial tolerances. Wide operating temperature range from -30°C to 120°C for versatile industrial use. Suitable for applications in mechanical, fluid power, and power transmission systems.

Includes M5 screw size for secure mounting compatibility.

This flexible coupler is ideally suited for industrial machinery requiring precise torque transmission with tolerance to misalignment, including manufacturing equipment and automation systems. The quality construction assures long service life and stable performance.
