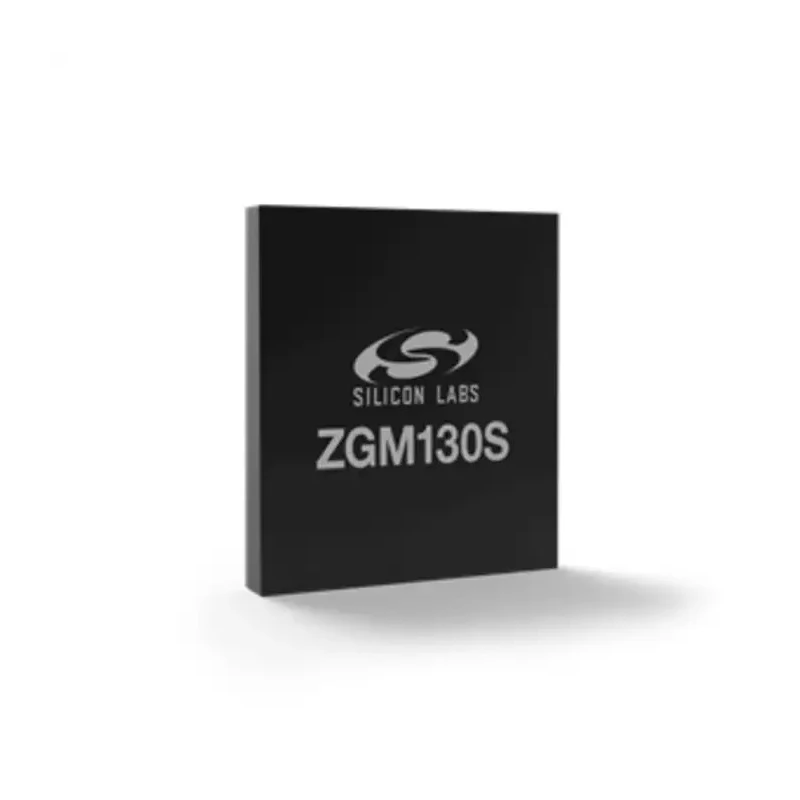

Silicon Labs RF Transceiver 64-Pin LGA, 32 Bit ARM Cortex M4, 100kbps Data Rate, 1.8-3.8V Supply, ZGM130S037HGN2
Specifications
| Country of Origin | India |
|---|---|
| Range | up to 100 meters |
| Brand | Silicon Labs |
| Height | 1.05mm |
| Length | 9mm |
| Model | ZGM130S037HGN2 |
| Technology | 32 Bit ARM Cortex M4 |
| Width | 9mm |
| Mount Type | Surface |
| Series | ZGM130S |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Flash Memory | 512 kB (64 kB Application) |
| RAM | 64 kB (8 kB Application) |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.8V |
| Minimum Supply Voltage | 1.8V |
| Modulation Technique | QPSK, GFSK |
| Operating Band 1 Frequency | 876MHz |
| Operating Band 2 Frequency | 930MHz |
| Number of Operating Bands | 2 |
| RX sensitivity @ 100 kbps | -97.5 dBm |
Key Features
- Supports modulation techniques including QPSK and GFSK for reliable data transfer.
- Operates within a supply voltage range from 1.8V to 3.8V.
- Delivers data rates up to 100kbps suitable for IoT and smart home applications.
- Compact 64-pin LGA package with surface mount design for efficient PCB integration.
- Operating temperature range from -40°C to 85°C for robust industrial performance.
- Flash memory of 512 kB including 64 kB for application use and 64 kB RAM with 8 kB application space.
- Low power consumption with TX power up to 13 dBm and RX sensitivity of -97.5 dBm at 100 kbps.
- Incorporates autonomous hardware crypto accelerator and random number generator for security.
Product Description
Silicon Labs ZGM130S037HGN2 is a high-performance RF Transceiver in a 64-Pin LGA package powered by a 32 Bit ARM Cortex M4 core operating at 39 MHz. Designed to enable rapid development of energy-efficient smart home and IoT solutions, this module supports dual operating bands at 876MHz and 930MHz with data rates of 100kbps using QPSK and GFSK modulation techniques.
Featuring a minimum supply voltage of 1.8V and a maximum of 3.8V, the transceiver operates reliably over wide industrial temperature extremes ranging from -40°C to 85°C.
Low power consumption is achieved through innovative Gecko technology with TX power up to 13 dBm and RX sensitivity of -97.5 dBm at 100 kbps. The module offers 9.8 mA RX current and 13.3 mA TX current at 0 dBm output power, helping to maximize battery life in wireless sensor and control devices.
Security is enhanced with an autonomous hardware crypto accelerator and random number generator. Additional features include an integrated DC-DC converter and an optional external SAW filter to improve signal integrity.
This Z-Wave 700 SiP module is ideal for applications such as smart lighting control, motion and door/window sensors, appliance control, building automation, energy management, and security in commercial and residential IoT networks.
Supports robust QPSK and GFSK modulation techniques ensuring reliable wireless communication. Dual operating frequency bands at 876MHz and 930MHz for versatile deployment. Equipped with 512 kB flash memory and 64 kB RAM for demanding embedded applications.
Low power design extends battery life in IoT sensors and controls. Integrated security hardware for encrypted communications. Compact 64-Pin LGA surface mount package for efficient PCB layout. Operating temperature range from -40°C to 85°C suitable for industrial environments.
TX power up to 13 dBm and RX sensitivity to -97.5 dBm supports long-range connectivity up to 100 meters. Includes integrated DC-DC converter and optional external SAW filter for energy efficiency and signal quality. Explore the extensive Silicon Labs portfolio at EnvMart for advanced RF and wireless communication components.
Explore more products in our RF ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data rates of up to 100 kbps, making it suitable for IoT and smart home applications.
The operating temperature range for this unit is from -40°C to 85°C, suitable for robust industrial performance.
It supports QPSK and GFSK modulation techniques for reliable data transfer.
The transceiver operates within a supply voltage range of 1.8V to 3.8V.
The RX sensitivity at 100 kbps is -97.5 dBm, allowing for effective long-range communication.
This model can achieve a maximum TX power of up to 13 dBm.
It comes in a 64-pin LGA package, designed for surface mount applications.
It features 512 kB of flash memory, with 64 kB allocated for application use, and 64 kB of RAM with 8 kB for application space.
The dimensions of this unit are 9mm in length, 9mm in width, and 1.05mm in height.
This model complies with RoHS standards, ensuring it meets environmental safety requirements.
It incorporates an autonomous hardware crypto accelerator and a random number generator for enhanced security in communications.
