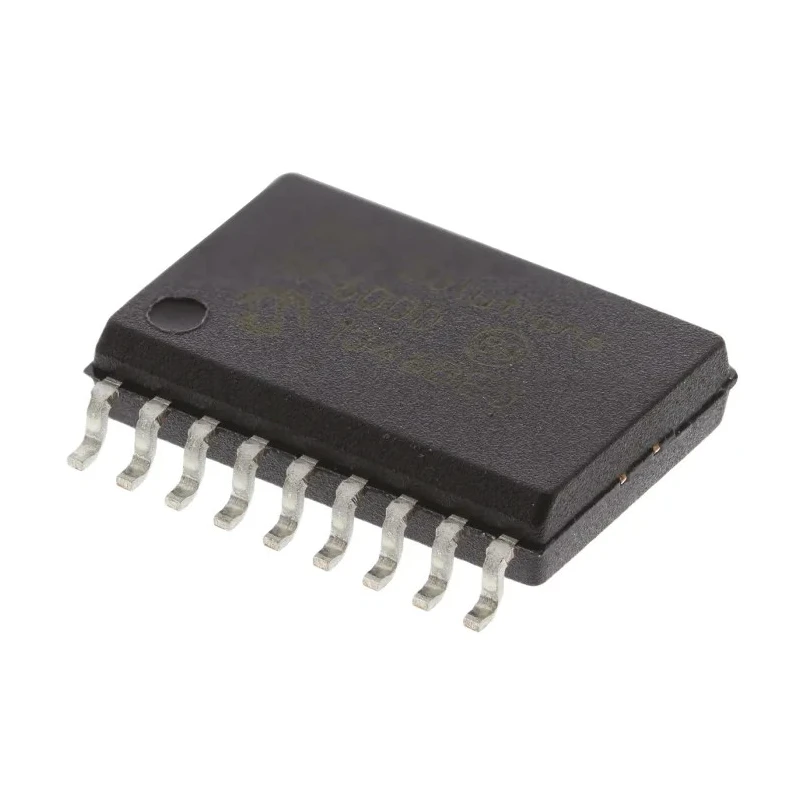

RF Solutions RF Decoder IC 18-Pin SOIC, AM IR FM Technology, 4.8kbps Data Rate, Surface Mount, RF600D-SO
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RF Solutions |
| Package | SOIC8 |
| Height | 2.39mm |
| Length | 11.73mm |
| Model | RF600D-SO |
| Technology | AM, IR, FM |
| Width | 7.59mm |
| Mount Type | Surface |
| Series | RF600D |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | RF Decoder |
| Minimum Operating Temperature | -55°C |
| Interface Type | Asynchronous Serial |
| Pin Count | 18 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 11V |
| Modulation Technique | FM |
| RF600D, ,18-Pin PDIPBrand | RF Solutions |
Key Features
- Supports AM, IR, and FM technologies for versatile communication.
- Operates at a data rate of 4.8 kbps ensuring efficient signal processing.
- Equipped with 18 pins in a SOIC surface mount package for easy PCB integration.
- Wide operating temperature range from -55°C to 125°C suits diverse environments.
- Minimum and maximum supply voltages of 11V and 16V respectively enable stable operation.
- Features asynchronous serial interface type compatible with various systems.
- Includes error checking with CRC and supports up to 7 transmitters Learn feature for flexible setups.
- Designed and manufactured in the United Kingdom to ensure quality and performance.
Product Description
RF Solutions RF600D-SO is a high-performance RF Decoder IC featuring 18 pins in a compact SOIC package designed for surface mounting on PCBs. It supports AM, IR, and FM technologies and delivers a data rate of 4.8 kbps using FM modulation techniques. The device operates reliably within supply voltages ranging from 11V to 16V and is built to withstand a wide temperature range from -55°C up to 125°C.
This RF Decoder IC is equipped with an asynchronous serial interface type, suitable for seamless integration into communication and wireless module systems. Its precise dimensions of 11.73mm length, 7.59mm width, and 2.39mm height make it suitable for compact and space-conscious electronic designs.
The RF600D-SO chipset includes advanced features such as Manchester encoding with CRC-based error checking, KeeLoq data decryption, and an Easy Learn feature to pair multiple transmitters (up to 7, expandable to 48 with external EEPROM). These capabilities ensure secure data transmission and robust wireless remote control operation.
Typical applications include remote control and simple wireless telemetry systems, leveraging the device’s capability to work with various RF and IR transmitter and receiver modules that lack built-in codec functions. Its design allows optimal range performance, verified and manufactured under UK standards of quality and reliability.
Supports AM, IR, and FM communication technologies. 18-pin SOIC surface mount package. Operates between 11V and 16V supply voltages. Wide temperature tolerance from -55°C to 125°C. Asynchronous serial interface for flexible connectivity.
Compact form factor with precise PCB footprint. Secure data decoding with CRC error checking and KeeLoq decryption. Supports Easy Learn with up to 7 transmitters. Designed for wireless telemetry and remote control applications.
This RF Decoder IC is part of the RF600D series by RF Solutions and offers a trusted semiconductor solution for electronic circuit designers engaged in communication and wireless control projects. Discover comprehensive electronic components and semiconductor alternatives at EnvMart to meet diverse industrial and commercial needs.
Explore more products in our RF ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a data rate of 4.8 kbps, ensuring efficient signal processing for communication applications.
It operates with a supply voltage range of 11V to 16V, allowing for stable operation in different applications.
It features an asynchronous serial interface type, which is compatible with various systems for seamless integration.
The dimensions are 11.73mm in length, 7.59mm in width, and 2.39mm in height, making it compact for PCB integration.
It utilizes FM modulation techniques for data transmission, ensuring effective communication.
It is designed and manufactured in the United Kingdom, ensuring adherence to quality standards.
Typical applications include remote control and simple wireless telemetry systems, leveraging its compatibility with various RF and IR modules.
It includes features such as CRC-based error checking and KeeLoq data decryption for secure data transmission.
It comes in an 18-pin SOIC surface mount package, facilitating easy integration onto PCBs.
