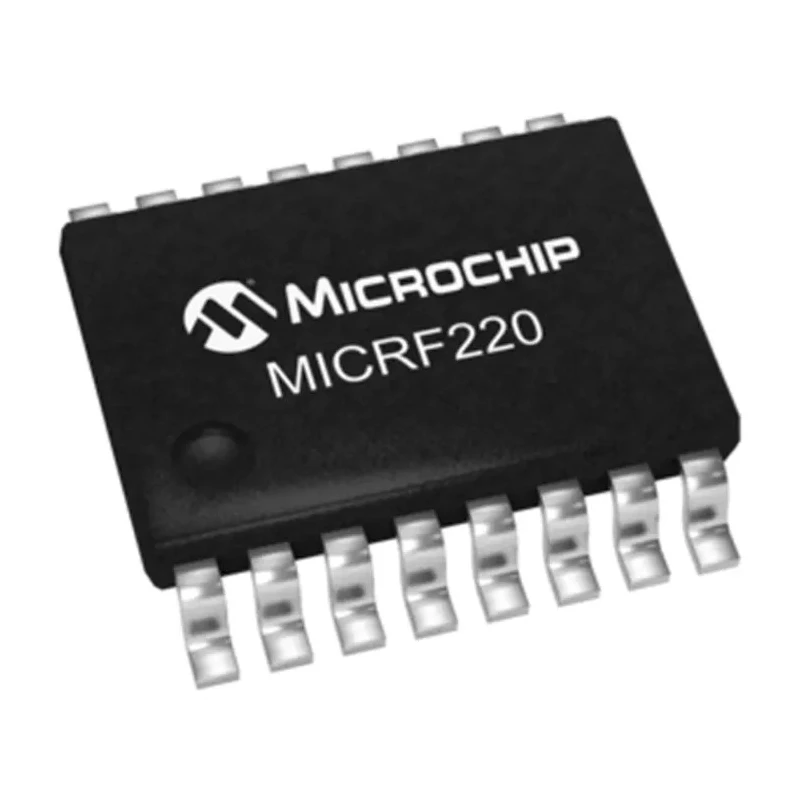

Microchip RF Receiver 300 to 450MHz ISM Band, 16-Pin QSOP, Surface Mount, OOK ASK Modulation MICRF220AYQS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.47mm |
| Operating Temperature Range | -40 to +105°C |
| Length | 4.9mm |
| Model | MICRF220AYQS |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | MICRF220 |
| Maximum Operating Temperature | 105°C |
| Package Type | QSOP |
| Sub Type | Receiver |
| Minimum Operating Temperature | -40°C |
| RF Frequency Range | 300 to 450MHz ISM Band |
| Receiver Sensitivity | -110dBm @ 1kbps, 0.1% BER |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Modulation Technique | OOK, ASK |
| Modulation | ASK, OOK |
| OTA Data Rate | up to 20kbps |
| Operating Band 1 Frequency | 13kHz |
| Operating Band 2 Frequency | 1.63kHz |
| Number of Operating Bands | 2 |
| Analogue RSSI output range | 60dB |
| Micrel MICRF220AYQS RF Receiver Chip, 16-Pin QSOPBrand | Micrel |
Key Features
- The device features OOK and ASK modulation techniques suitable for low bitrate data transmission.
- It supports data rates up to 20kbps with receiver sensitivity of -110dBm at 1kbps and 0.1% BER.
- The package type is 16-pin QSOP with compact dimensions of 4.9mm length, 3.91mm width, and 1.47mm height.
- Operates over a supply voltage range of 3 to 3.6V and an extended temperature range from -40°C to +105°C.
- Ideal for applications such as remote controls and automotive keyless entry systems.
- Analogue RSSI output range is 60dB for signal strength assessment and tuning.
- Supports two operating frequency bands in the 300 to 450MHz ISM sub-GHz range.
- The surface mount package supports automated PCB assembly and miniaturized device design.
Product Description
Microchip MICRF220AYQS is a sub-1GHz RF receiver designed for reliable wireless communication in industrial and automotive applications. It supports OOK (On-Off Keying) and ASK (Amplitude Shift Keying) modulation techniques, operating specifically within the 300 to 450MHz ISM band. The component comes in a surface mount 16-pin QSOP package with precise dimensions of 4.9mm in length, 3.91mm in width, and 1.47mm in height, suitable for compact PCB designs.
The receiver boasts high sensitivity with a threshold of -110dBm at 1kbps ensuring reliable signal detection at low power levels. It offers data rates up to 20kbps, making it appropriate for low to moderate speed wireless data applications. The operating voltage lies between 3V and 3.6V, enabling efficient power consumption in portable and automotive devices. Its robust operating temperature from -40°C to +105°C confirms suitability for harsh environments and automotive-grade use cases.
The analogue RSSI output ranges up to 60dB, allowing for effective signal strength monitoring and tuning. The MICRF220AYQS supports two operating frequency bands and does not include automotive-specific certifications but fits well within general RF communication roles.
This receiver is widely used in remote control systems, including automotive keyless entry, alarm systems, and other industrial wireless modules where reliability and signal quality are critical. Its surface mount QSOP form factor enables automated assembly and miniaturized device footprints.
The device employs OOK and ASK modulation suited for simple and reliable data transmissions. High sensitivity receiver capable of detecting signals down to -110dBm. Compact 16-Pin QSOP package with dimensions optimized for dense PCB layouts.
Wide operating voltage range of 3.0 to 3.6V with low power consumption. Robust operating temperature range from -40°C to 105°C. Analogue RSSI output range of 60dB for signal strength monitoring. Supports two frequency bands in the sub-1GHz ISM range.
Ideal for automotive keyless entry and remote control applications. Explore a full range of RF ICs and semiconductor solutions on EnvMart for your industrial and commercial electronics development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the 300 to 450MHz ISM band, suitable for various RF applications.
The receiver sensitivity is -110dBm at a data rate of 1kbps with a 0.1% bit error rate (BER).
It supports On-Off Keying (OOK) and Amplitude Shift Keying (ASK) modulation techniques for low bitrate data transmission.
The maximum data rate supported by this model is up to 20kbps.
The device has dimensions of 4.9mm in length, 3.91mm in width, and 1.47mm in height.
It operates over a supply voltage range of 3 to 3.6V, which is suitable for efficient power consumption in various applications.
This unit comes in a 16-pin QSOP surface mount package, which supports automated PCB assembly.
It is ideal for applications such as remote controls, automotive keyless entry systems, and alarm systems.
The device has a pin count of 16, which is typical for its QSOP package type.
With a receiver sensitivity of -110dBm, it is capable of detecting signals at low power levels, ensuring reliable communication.
