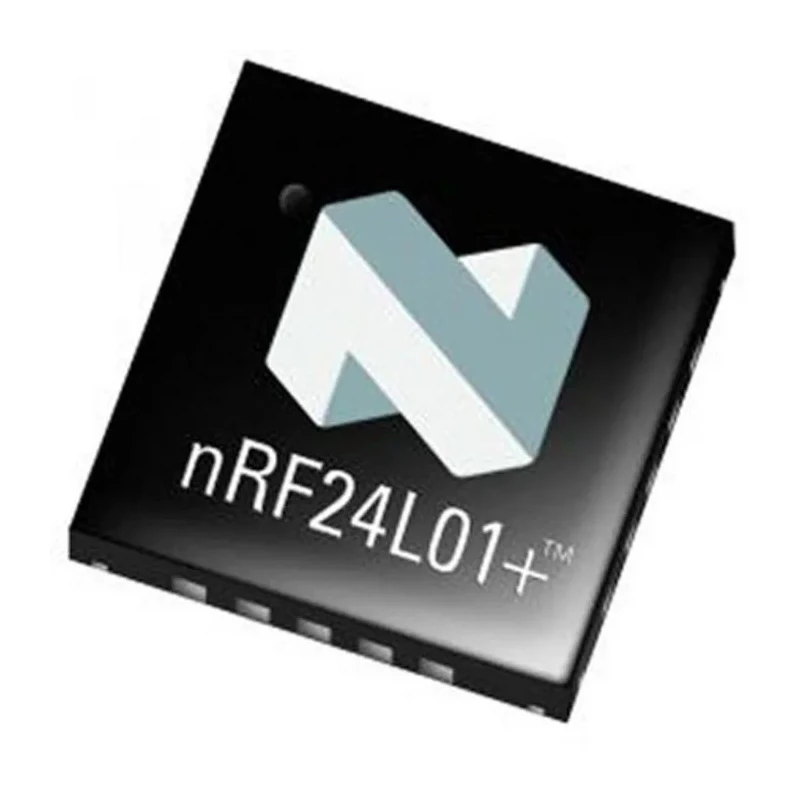

Nordic Semiconductor NRF24L01P-T 2.4GHz ISM-Band RF Transceiver IC, 20-Pin QFN Package NRF24L01P-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nordic Semiconductor |
| Height | 0.9mm |
| Length | 4mm |
| Model | NRF24L01P-T |
| Technology | Low IF/ISM Transceiver |
| Width | 4mm |
| Mount Type | Surface |
| Series | nRF24L01 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| RF Frequency Range | 2.400 to 2.4835GHz ISM-Band with 126 channels |
| Receiver Sensitivity | -94dBm @ 250kbps |
| Interface Type | SPI |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.9V |
| Host communication | serial SPI up to 10Mbps with Tx and Rx 32-byte FIFOs |
| Modulation Technique | GFSK |
| Operating Band 1 Frequency | 2483.5MHz |
| Number of Operating Bands | 1 |
| 6 x data pipe MultiCeiver™ for 1 | 6 star networks |
Key Features
- Operates in the 2.400 to 2.4835GHz ISM frequency band with 126 channels.
- Supports a maximum over-the-air data rate of 2 Mbps with GFSK modulation.
- Features an enhanced ShockBurst hardware link layer with dynamic payload lengths from 1 to 32 bytes.
- Includes Auto ACK, retransmit capabilities, and 6 data pipe MultiCeiver technology for star network topologies.
- Host communication is via serial SPI interface at speeds up to 10 Mbps with 32-byte FIFOs for transmit and receive.
- Operates with a supply voltage ranging from 1.9 V to 3.6 V.
- Designed for industrial and commercial wireless applications including asset tracking, sensor networks, and RF remote controls.
- Operating temperature ranges from -40°C to 85°C ensuring robust performance in harsh environments.
Product Description
Nordic Semiconductor NRF24L01P-T is a highly integrated single-chip 2.4GHz ISM-band RF transceiver IC housed in a compact 20-pin QFN package measuring 4 mm x 4 mm with a height of 0.9 mm. It supports low intermediate frequency (Low IF) transceiver technology delivering efficient, low power wireless communication.
The transceiver operates over a frequency range of 2.400 to 2.4835GHz with 126 selectable channels, enabling flexible deployment in various radio environments. It achieves a maximum over-the-air data rate of 2 Mbps using Gaussian Frequency-Shift Keying (GFSK) modulation optimized for robust data transmission.
Integrated features include the Enhanced ShockBurst™ protocol engine, which manages packet communication autonomously or manually. The hardware supports dynamic payload lengths between 1 and 32 bytes, auto acknowledgment and retransmission of packets, and MultiCeiver™ functionality allowing connectivity with up to six data pipes facilitating star network configurations.
The device uses a serial SPI interface at speeds up to 10 Mbps for host communication and employs 32-byte transmit and receive FIFOs to efficiently buffer data. Its power supply range of 1.9 V to 3.6 V supports low power operation suitable for battery-operated systems.
This transceiver IC is engineered to meet industrial and commercial applications such as wireless PC peripherals, sports and health sensors, RF remote controls, home and building automation, active RFID, asset tracking, and ultra low-power wireless sensor networks, including IoT devices.
Designed to operate reliably within an extended temperature range of -40°C to 85°C, the NRF24L01P-T ensures robust performance in varying environmental conditions. Operates within 2.400 to 2.4835GHz ISM band with 126 channels.
Max data rate of 2 Mbps with GFSK modulation. Embedded Enhanced ShockBurst protocol for hardware packet handling. Supports 6 data pipe MultiCeiver connectivity for star networks. SPI interface up to 10 Mbps with 32-byte FIFOs.
Supply voltage range from 1.9 to 3.6 V for low power consumption. Operating temperature: -40°C to 85°C for industrial-grade reliability. Explore more electronic components and semiconductors at EnvMart for your wireless communication and IoT development projects.
Explore more products in our RF ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates in the 2.400 to 2.4835GHz ISM frequency band with 126 selectable channels.
The maximum over-the-air data rate is 2 Mbps using Gaussian Frequency-Shift Keying (GFSK) modulation.
The QFN package measures 4 mm x 4 mm with a height of 0.9 mm.
It operates with a supply voltage ranging from 1.9 V to 3.6 V.
Host communication is via a serial SPI interface at speeds up to 10 Mbps, with 32-byte FIFOs for transmit and receive.
It is designed to operate reliably within an extended temperature range of -40°C to 85°C.
It supports connectivity with up to six data pipes, facilitating star network configurations.
The NRF24L01P-T uses Gaussian Frequency-Shift Keying (GFSK) modulation for data transmission.
It is engineered for industrial and commercial applications such as wireless PC peripherals, sensor networks, RF remote controls, and asset tracking.
The receiver sensitivity is -94dBm at a data rate of 250kbps.
The NRF24L01P-T is designed for surface mounting.
