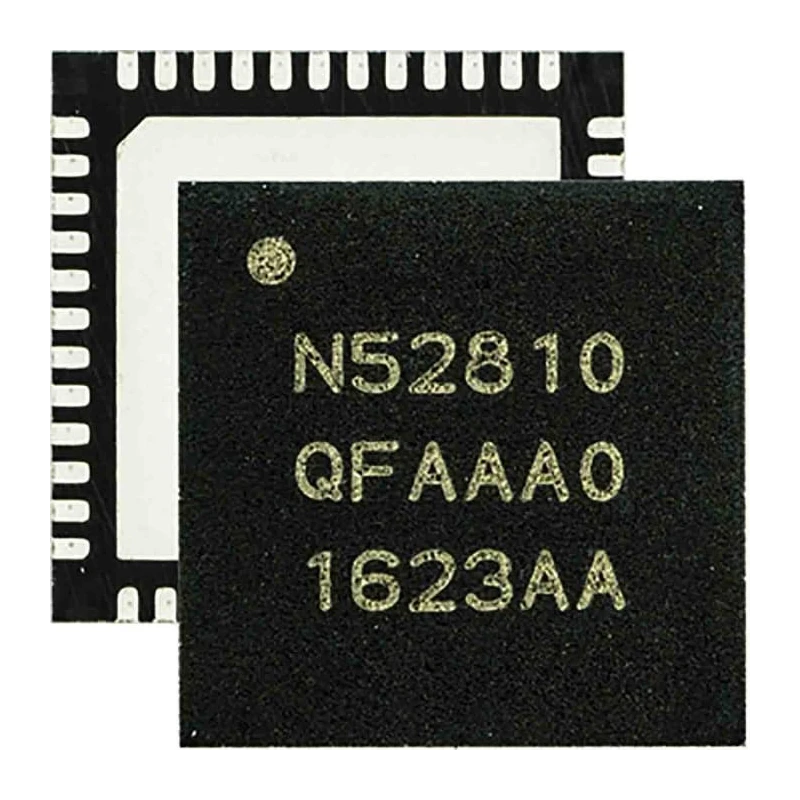

Nordic Semiconductor ARM Cortex M4 Microcontroller System-On-Chip 48-Pin QFN nRF52810-QFAA-R7

Nordic Semiconductor nRF52810-QFAA-R7 is a System-On-Chip (SoC) featuring an ARM Cortex M4 microcontroller optimized for low power and Bluetooth 5 connectivity. It integrates a 64 MHz Cortex-M4 CPU, 192 kB FLASH memory, and 24 kB RAM, providing ample processing power and memory for compact and less complex wireless applications.

This SoC supports multiple protocol stacks including Bluetooth 5, ANT, and proprietary 2.4 GHz protocols, making it suitable for wide-ranging industrial, commercial, and consumer electronics requiring wireless communication. Its ultra-low power consumption extends battery life in portable devices.

The 48-pin QFN package is compact with precise dimensions of 6 mm length, 6 mm width, and an 850 μm height, ideal for space-constrained PCB designs. The device supports a supply voltage range from 1.7V up to 3.6V, enhancing compatibility with various power sources.

Featuring 32 GPIO pins and peripheral interfaces such as UART, SPI, TWI, PDM, and PWM, the nRF52810-QFAA-R7 enables flexible connectivity and sensor integration. The 12-bit ADC and 2.4 GHz radio transceiver with up to 4 dBm transmission power further support robust signal acquisition and transmission.

Operating temperature ranges from -40°C to 85°C, making this SoC suitable for diverse environmental conditions found in industrial and commercial applications. Manufactured in the Philippines, this SoC lacks specific automotive standards certification but remains a reliable choice for general embedded wireless systems.

Operating voltage ranges from 1.7V to 3.6V ensuring wide compatibility. 192 kB FLASH program memory and 24 kB RAM for efficient processing. Includes a 64 MHz Cortex-M4 CPU for robust performance. Supports Bluetooth 5, ANT, and 2.4 GHz proprietary protocol stacks.

Compact 48-pin QFN package measures 6 mm x 6 mm with 850 μm height. Operates reliably within -40°C to 85°C temperature range. Equipped with 32 input/output pins and a 12-bit ADC for versatile interfacing. Built-in 2.4 GHz transceiver provides up to 4 dBm TX power.

Includes communication interfaces such as UART, SPI, TWI, PDM, and PWM. Designed and manufactured in the Philippines with no automotive certification.

This System-On-Chip is widely used in wireless communication, industrial automation, IoT devices, sensor networks, and Bluetooth-enabled consumer electronics. It serves well in low-power, compact electronic designs demanding reliable wireless connectivity and efficient processing.
