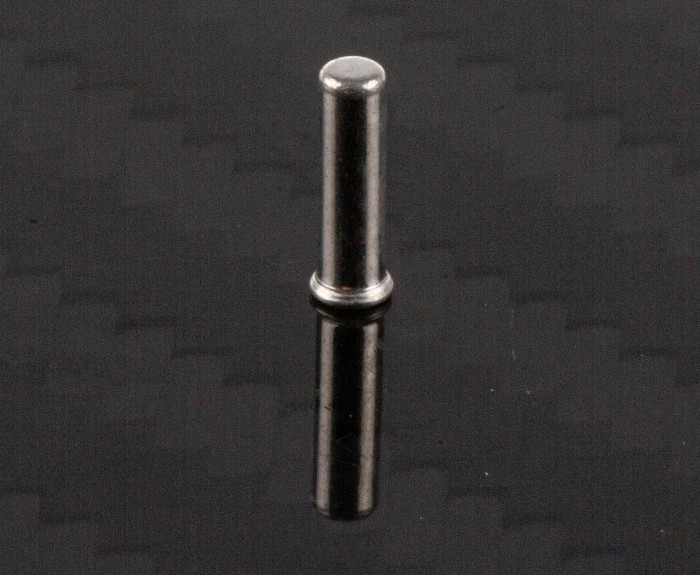

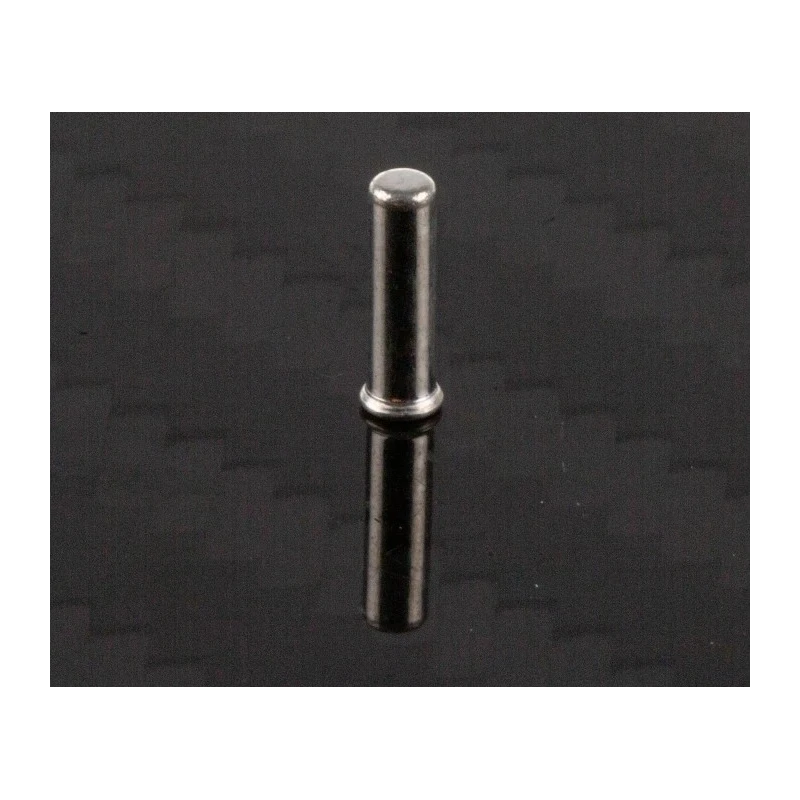

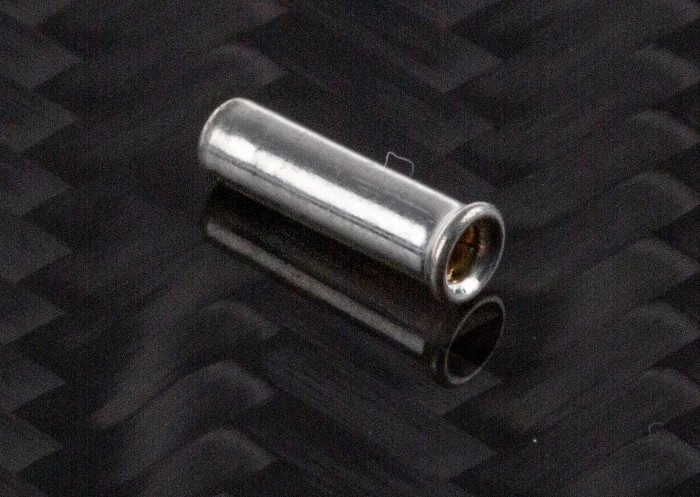

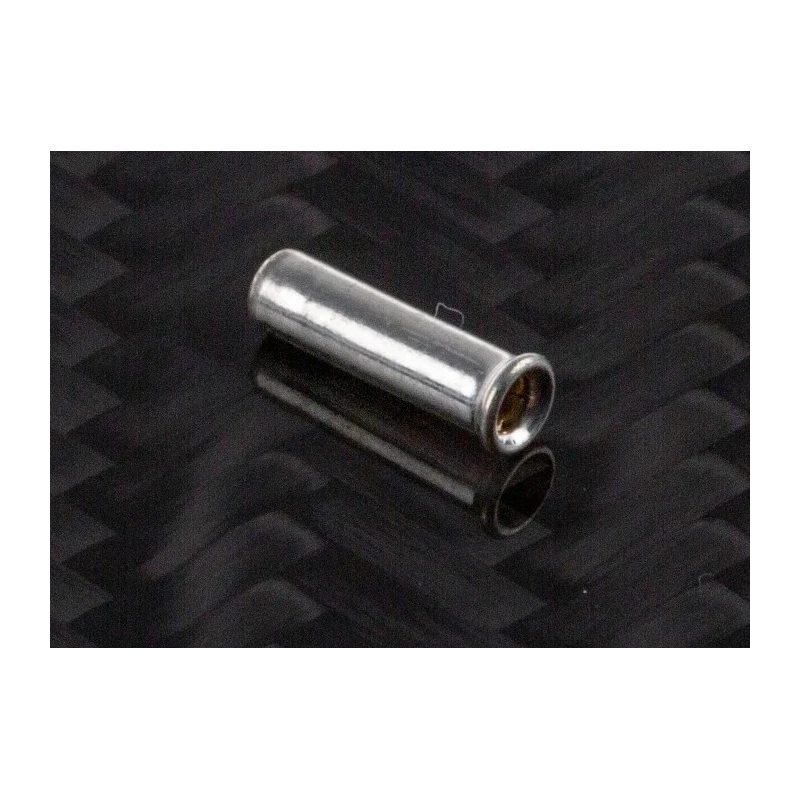

TE Connectivity Mini-Spring PCB Socket Female 6.5A 20 AWG Straight Gold Plated Contact 5050865-5
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6.5A |
| Length | 6.6mm |
| Gender | Female |
| Contact Material | Beryllium Copper Alloy |
| Series | Mini-Spring |
| Termination Type | Solder |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- The socket features a straight orientation for easy PCB assembly.
- Contact material is high-quality Beryllium Copper alloy ensuring excellent conductivity.
- Gold plating on contacts improves corrosion resistance and signal integrity.
- Termination type is solder suitable for reliable electrical connections.
- Compact length of 6.6 mm fits various PCB designs.
- Supports a minimum wire size of 18 AWG and maximum of 20 AWG.
- Designed with no specific standards or approvals but meets industrial quality demands.
- Originates from China as the country of manufacture.
Product Description
TE Connectivity 5050865-5 Mini-Spring PCB Socket is a female Discrete Socket designed for printed circuit board applications supporting currents up to 6.5 amps and wire sizes between 18 AWG and 20 AWG. Its straight orientation and compact length of 6.6 mm allow straightforward integration into various PCB layouts.
This socket features contact points made of beryllium copper alloy with gold plating, providing excellent electrical conductivity and durability against corrosion. The solder termination type ensures robust and reliable electrical connections suited to industrial and electronic manufacturing environments.
The Mini-Spring series discrete PCB sockets are built to enhance assembly efficiency and durability in power and connector applications. They are suitable for use in electronics manufacturing, power devices, and connector assemblies requiring reliable PCB mounting hardware.
The socket supports a continuous current rating of 6.5A to deliver stable power handling. Gold-plated contacts improve long-term reliability of connections. Compact physical dimensions of 6.6 mm length optimize space utilization on PCBs.
Solder termination allows for strong mechanical and electrical bonds. Designed for discrete wire sizes AWG 18 to 20 providing flexible wiring options. Manufactured in China ensuring consistent production standards. Ideal for applications in surface mount PCB connector solutions in electronics and electrical components.
Enables ease of assembly and maintenance in manufacturing environments.
Please explore our extensive range of electronic connectors and components for further industrial and commercial solutions. Discover quality TE Connectivity parts and related PCB sockets in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Mini-Spring PCB socket supports a maximum current rating of 6.5A.
It is designed to accommodate wire sizes ranging from 18 AWG to 20 AWG.
The socket has a compact length of 6.6 mm, making it suitable for various PCB designs.
The contacts are made of a high-quality beryllium copper alloy, which ensures excellent conductivity.
It features a solder termination type, providing reliable electrical connections.
This model has a straight orientation, facilitating easy PCB assembly.
It is manufactured in China, ensuring consistent production standards.
The contacts are gold plated, which improves corrosion resistance and signal integrity.
This socket is part of the Mini-Spring series, designed for enhanced assembly efficiency.
It is suitable for electronics manufacturing, power devices, and connector assemblies requiring reliable PCB mounting hardware.
While it does not have specific standards or approvals, it meets industrial quality demands.
This socket is a female type, designed for discrete applications on PCBs.
