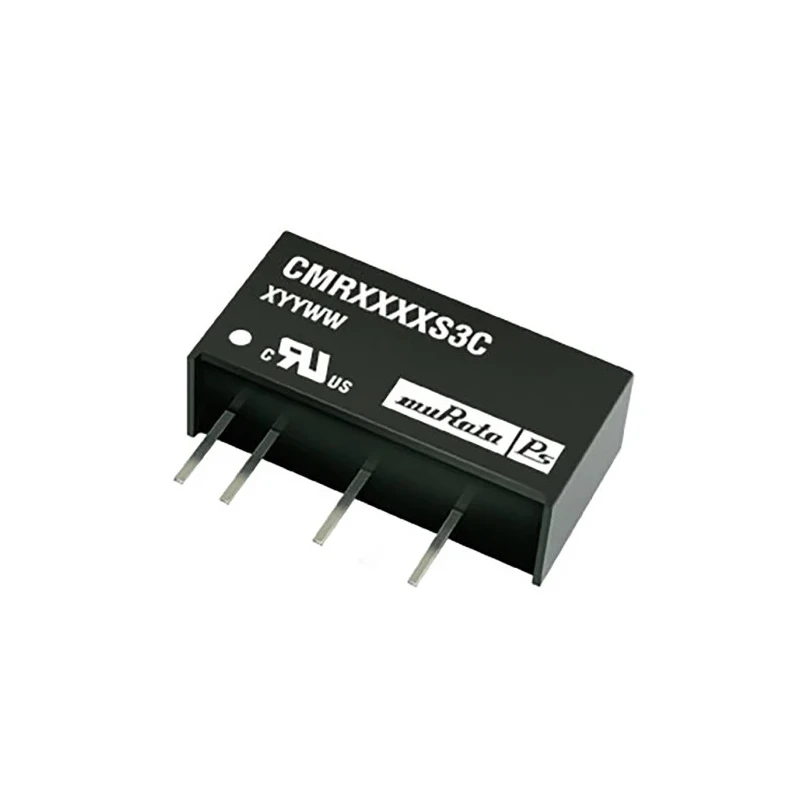

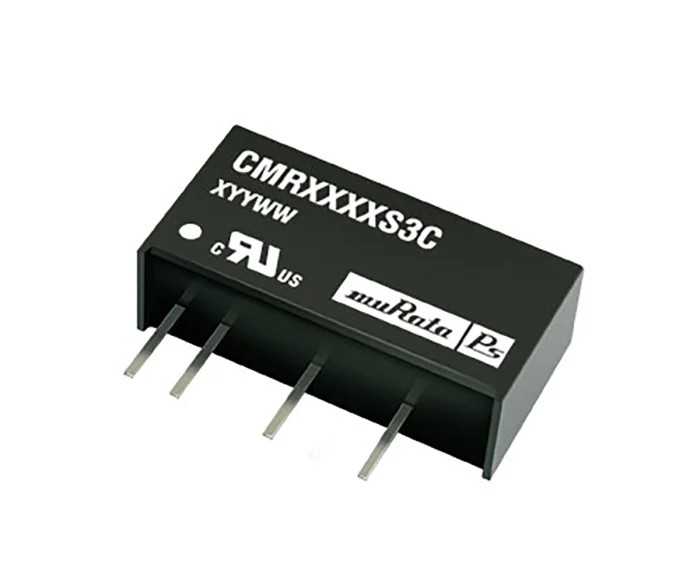

Murata Power Solutions 0.75W Dual Output Isolated DC/DC Converter, 12V dc, -12V dc, 31mA Output, 4.5–5.5V Input CMR0512S3C

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions 0.75W Dual Output Isolated DC/DC Converter, 12V dc, -12V dc, 31mA Output, 4.5 - 5.5V Input CMR0512S3C

Name: Murata Power Solutions 0.75W Dual Output Isolated DC/DC Converter, 12V dc, -12V dc, 31mA Output, 4.5 - 5.5V Input CMR0512S3C
Brand: Murata Power Solutions
SKU: 133167
Price: 6.12 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Voltage	Converters / DC-DC Converters Murata Power Solutions CMR DC/DC Converter, 12V dc
Brand	Murata Power Solutions
Efficiency	78%
Length	19.5mm
Model	CMR0512S3C
Depth	10mm
Gross Weight	2g
Width	19.5mm
Mount Type	Through Hole
Series	CMR
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
Number of outputs	2
Ripple and Noise	8mV Pk-Pk
Maximum Output Power	0.75W
Maximum Input Voltage	5.5V dc
Standards/Approvals	RoHS
Minimum Input Voltage	4.5V
Number of Pins	7
Output Voltage 1	12, -12V dc
Output Current 1	31mA
Isolation Voltage	3kV dc

Key Features

The converter supports isolated dual outputs suitable for negative rail generation.
It has a maximum output current of 31mA with ripple and noise of 8mV Pk-Pk.
Efficient design offers 78% efficiency with galvanic isolation of 3kV DC.
Compact DIP package measures 19.5mm x 19.5mm x 10mm with 7 pins for mounting.
Operates reliably over a wide temperature range from -40°C to 85°C.
RoHS compliant and designed for industrial and electronic component applications.
Ideal for power supply, industrial, and embedded electronics requiring isolated DC rails.

Product Description

Murata Power Solutions CMR0512S3C is a highly reliable, cost-effective 0.75 watt isolated DC/DC converter featuring dual isolated outputs with voltages of 12V and -12V DC. Designed to operate from an input voltage range of 4.5 to 5.5 volts DC, this module is housed in a through-hole, 7-pin DIP package measuring 19.5mm in length, 19.5mm in width, and 10mm in depth.

The galvanic isolation of 3kV DC allows it to function effectively in systems requiring isolated negative rails, making it essential for industrial power supply applications and electronic component designs. With a maximum output current of 31mA and low ripple and noise of 8mV peak-to-peak, it offers stable and noise-free power delivery.

Featuring an efficiency of 78%, the CMR0512S3C converter is suitable for demanding environments, capable of operating across a broad temperature range from -40°C to 85°C. Its RoHS compliance ensures environmentally responsible usage in various manufacturing and embedded industrial applications.

This DC/DC converter series is popular in power supply design, instrumentation, data acquisition, industrial automation, and other electronics fields requiring small, isolated power modules.

The converter offers isolated dual outputs ideal for negative rail generation in positive rail systems. Its robust 3kV isolation withstands electrical noise and faults in industrial environments. Compact through-hole DIP package enables easy PCB mounting and prototyping.

Operates reliably under extreme temperatures from -40°C to 85°C for industrial-grade usage. Designed to fit a wide range of electronic power supply applications, including embedded systems. Supports maximum output power of 0.75 watts and maintains low noise output performance.

Murata Power Solutions commitment to quality and engineering expertise ensures dependable operation. Explore more DC/DC Converters and power supply components from Murata Power Solutions and related brands available on EnvMart for your electronics and industrial design needs.
