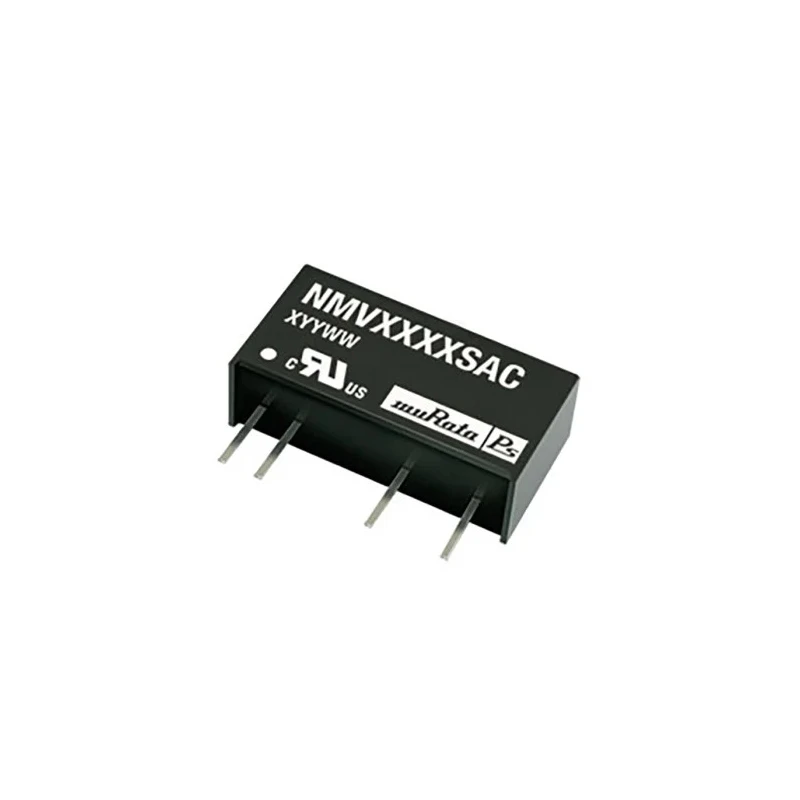

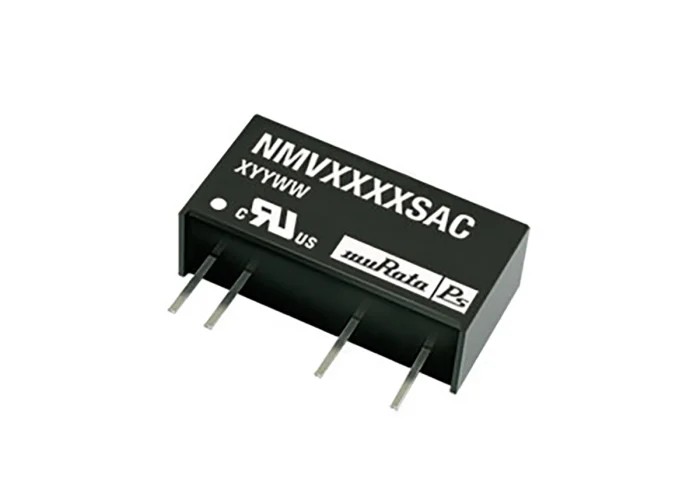

Murata Power Solutions 1W SIP Single Output Unregulated Isolated DC-DC Converter Through Hole NMV1215SAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | NMV1215SAC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1462000h |
| Number of outputs | 1 |
| Ripple and Noise | 17mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 67mA |
| Output Voltage Adjustment Range | 10.8/13.2 V |
| Isolation Voltage | 3kV dc |
| Output Voltage 2 | -15V dc |
Key Features
- Unregulated isolated output voltage of 15 V DC with a maximum output current of 67 mA.
- Input voltage range from 10.8 V minimum to 13.2 V maximum for stable operation.

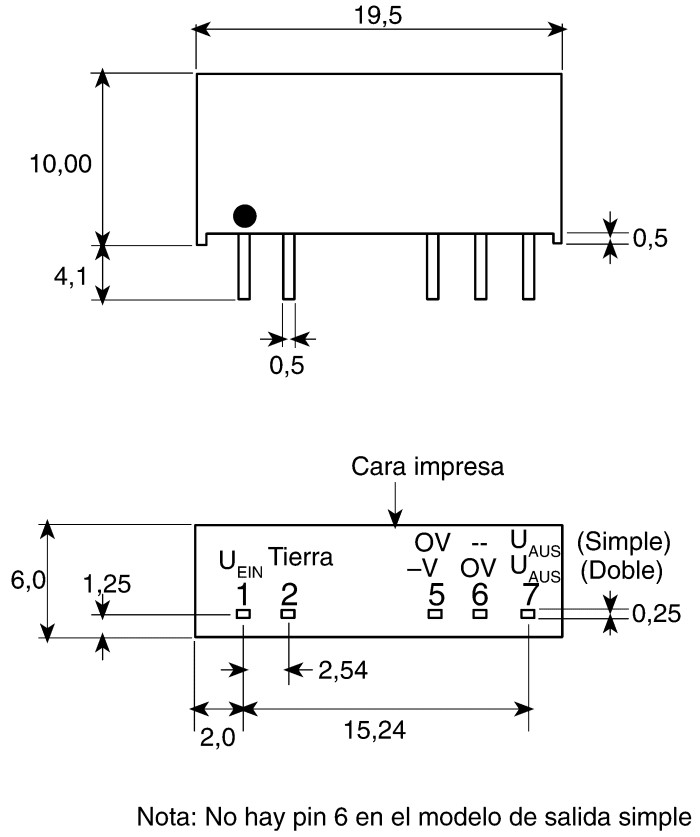

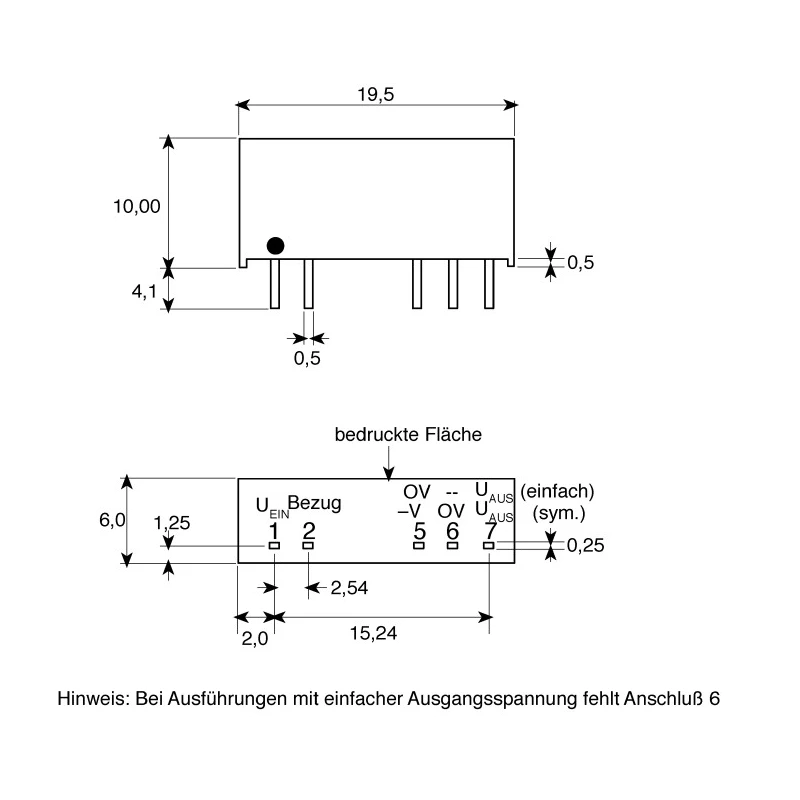

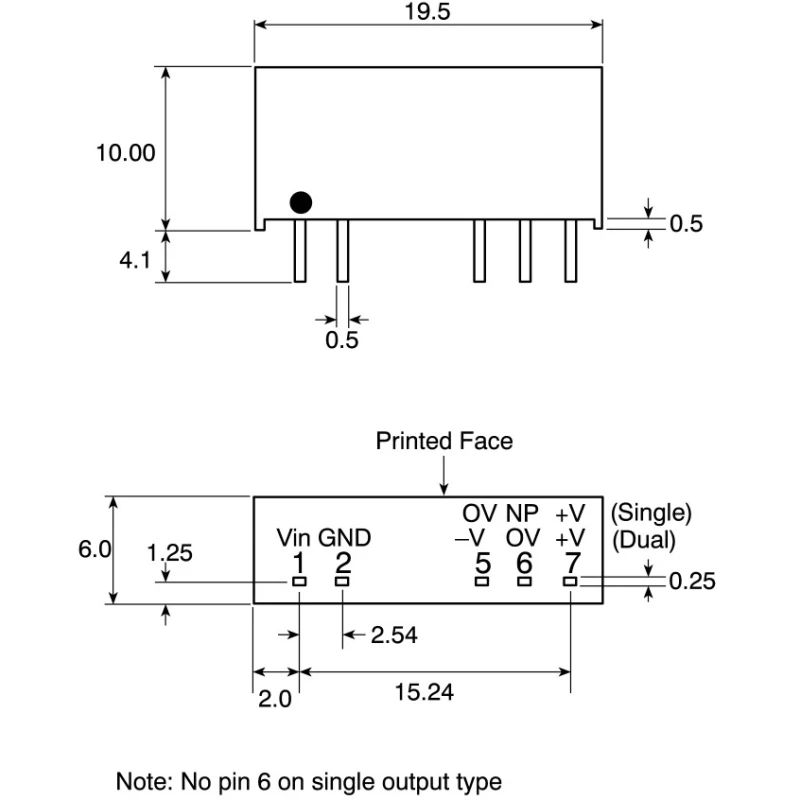

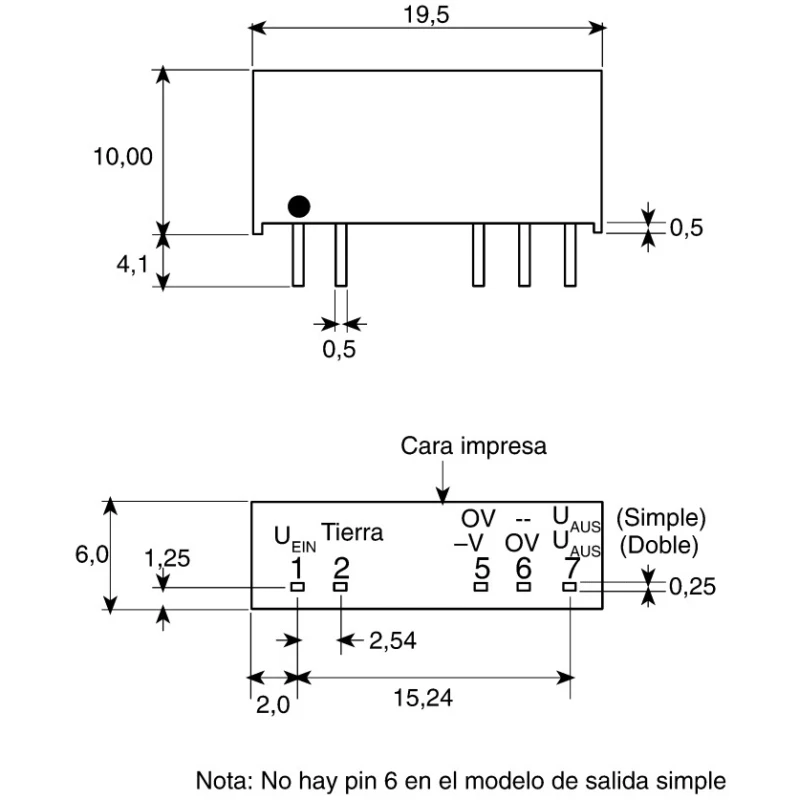

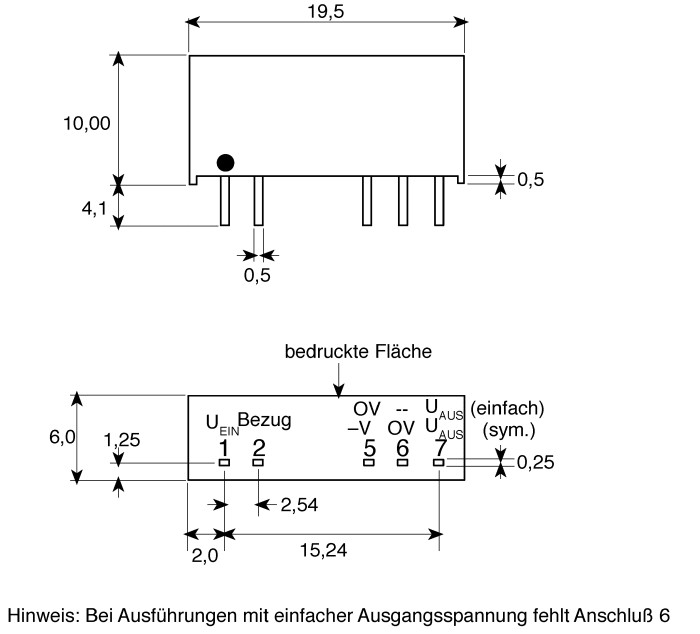

- Compact SIP7 plastic package with dimensions 19.5 x 10 x 10 mm and a weight of 2.1 grams.
- High efficiency of 77% ensuring low heat dissipation and energy saving.
- Isolation voltage of 3 kV DC for safety and system protection.
- Operating temperature range from -40°C to 85°C for reliability across harsh environments.
- Built-in internal SMD construction and UL 94V-0 rated packaging material for durability.
- Mean Time Between Failures (MTBF) of 1,462,000 hours based on MIL-HDBK-217F at 25°C.
Product Description
Murata Power Solutions NMV1215SAC is a highly efficient isolated DC-DC converter providing 1 watt of power with a single unregulated output voltage of 15 V DC and supporting input voltages of 10.8 V to 13.2 V DC. Designed as a SIP7 type package with through-hole mounting, this module offers compactness and easy integration into electronic systems.
The device delivers a maximum output current of 67 mA with a ripple and noise of 17 mV peak-to-peak. Its efficient design achieves 77% efficiency, reducing power loss and heat generation in industrial and electronic power supply applications.
The converter provides galvanic isolation up to 3 kV DC between input and output, offering enhanced safety and noise reduction capabilities critical in industrial control, instrumentation, and telecommunications equipment.
Constructed using internal surface mount device (SMD) technology and housed in a UL 94V-0 rated plastic SIP7 package, it meets high reliability standards. It withstands operating temperatures ranging from -40°C to 85°C, making it suitable for demanding environments.
The product boasts an outstanding mean time between failures (MTBF) of 1,462,000 hours per MIL-HDBK-217F at 25°C, confirming high reliability and long service life. No external components are needed, facilitating straightforward system design and reducing assembly complexity.
This DC-DC Converter is ideal for industrial electronics, power supply modules, communication equipment, and other applications requiring isolated voltage conversion with high efficiency and reliability.
Unregulated 15 V DC output at 67 mA maximum current. Input voltage range of 10.8 to 13.2 V DC for versatile power supply compatibility. 3 kV DC isolation enhances safety and noise immunity. Compact SIP7 package with through-hole mount for easy PCB installation.
High efficiency of 77% supports energy-efficient designs. Operating temperature from -40°C to 85°C ensures robust performance. MTBF of over 1.46 million hours signifies exceptional reliability. No external components required simplifying design.
Explore a broad range of DC/DC converters and power supply solutions in EnvMart to find components tailored to industrial, laboratory, manufacturing, and electronic device applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a single unregulated output voltage of 15 V DC.
It operates with an input voltage range from 10.8 V to 13.2 V DC.
The maximum output current is 67 mA.
It has an efficiency of 77%, which helps in reducing power loss and heat generation.
The NMV1215SAC offers galvanic isolation up to 3 kV DC between input and output.
This unit has dimensions of 19.5 mm in length, 10 mm in width, and 10 mm in depth.
It can operate within a temperature range of -40°C to 85°C.
This DC-DC converter is designed for through-hole mounting.
The ripple and noise is specified at 17 mV peak-to-peak.
The MTBF is rated at 1,462,000 hours based on MIL-HDBK-217F at 25°C.
No external components are needed, simplifying the design and assembly process.
This model complies with RoHS standards.
