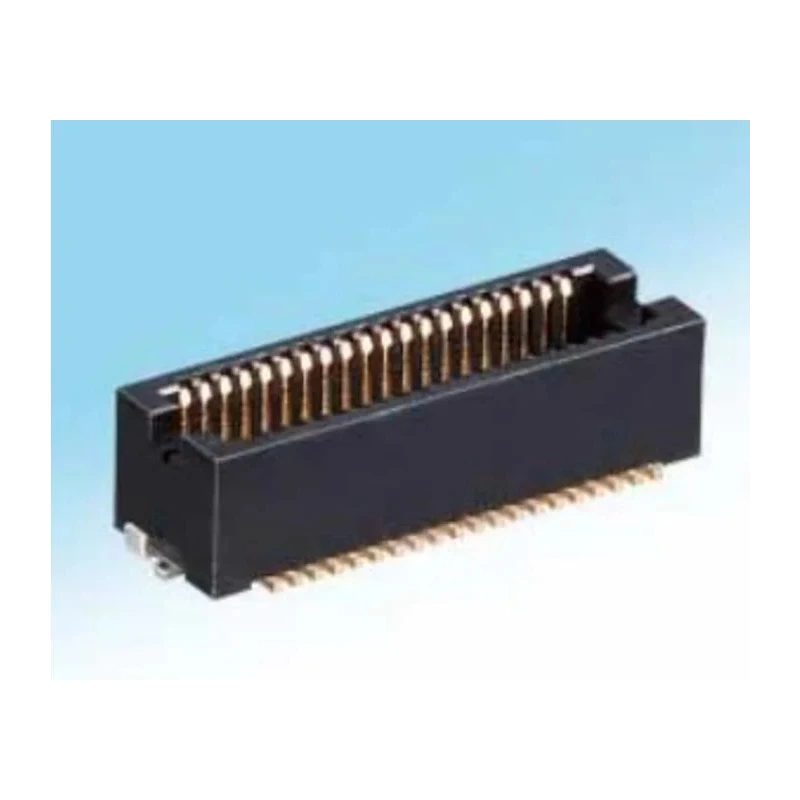

Hirose DF12 Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded DF12

Hirose DF12 is a high-precision Series Straight Surface PCB Header connector with model DF12, featuring 60 contacts arranged in 2 rows with 0.5 mm pitch spacing. This shrouded, board-to-board connector utilizes a polyamide housing with UL94V-0 flame retardant standard and gold-plated copper alloy contacts to ensure durability and optimal electrical performance.

Designed for reliable signal transmission, the DF12 Series connector supports currents up to 300 milliamps and voltages up to 50 volts, suitable for compact electronic assemblies requiring tight pitch and double-row configurations. Its temperature tolerance between -45°C and 125°C allows operation in varied industrial, laboratory, telecom, and manufacturing environments.

The surface mount (SMT) double-row header facilitates automated PCB assembly while ensuring mechanical stability with shrouded contact protection and metal fittings for solder retention. Ideal for dense circuit board interconnects where space efficiency and reliability are critical.

Additional design details include options for stacking heights from 3.5 mm to 5.0 mm accommodating varied assembly needs, board guide bosses for secure mating, and robust connector system engineered for industrial and commercial applications.

The compact 0.5 mm pitch supports high-density PCB layouts. Featuring gold-plated copper alloy contacts providing reliable conductivity and corrosion resistance. Shrouded design ensures secure connections and contact protection.

Constructed with UL94V-0 polyamide housing for flame retardance and durability. Supports operating voltages up to 50 V and currents of 300 mA. Operates reliably within temperature range from -45°C to 125°C. Surface mount termination and solder contact type facilitate efficient PCB assembly.

Double row configuration with 60 male contacts enables high connection density. Ideal for industrial, electronic assembly, telecommunications, and instrumentation applications.

This Hirose DF12 Series connector is engineered to deliver high reliability and electrical integrity for applications across industrial, laboratory, construction, telecommunications, and manufacturing sectors. It meets demanding space constraints without compromising contact quality.
