Amphenol Industrial Plug-In EV Service Disconnect for High Voltage Battery Pack 690V 500A MSDM5002

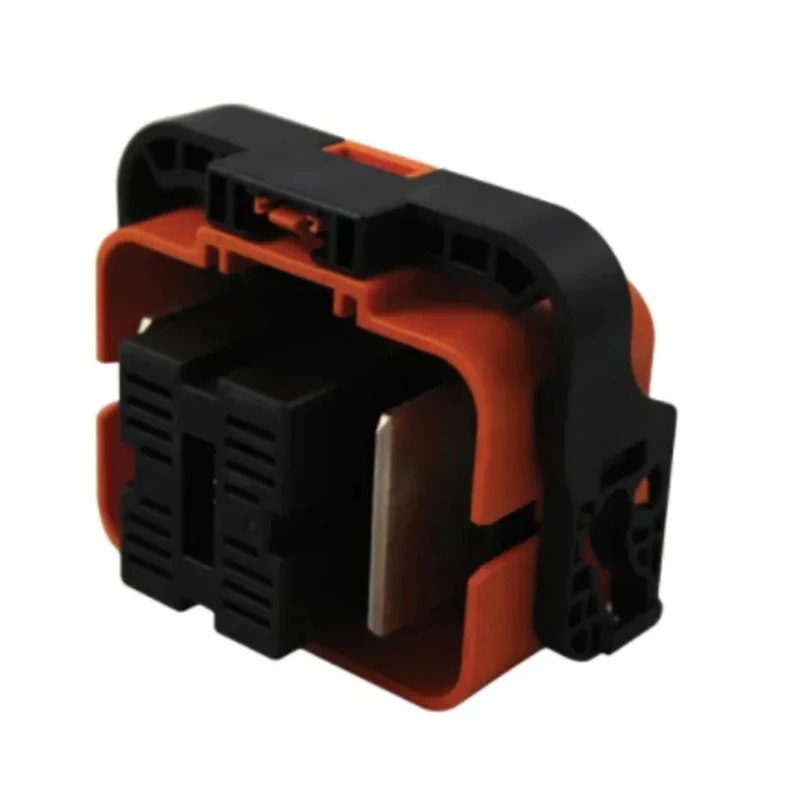

Amphenol Industrial MSDM5002 Plug-In EV Service Disconnect is engineered for safe and reliable use with high voltage battery packs, particularly in plug-in hybrid electric vehicles (PHEV). It features a manual service disconnect mechanism with a two-stage lever that opens the high voltage interlock loop (HVIL) prior to separating high voltage contacts, ensuring enhanced safety during maintenance and servicing.

With a rated voltage of 690V and current capacity of 500A, this disconnect offers high-performance electrical isolation. It has an ingress protection rating of IP67 and IP69K, providing robust environmental sealing against dust and water ingress, suitable for harsh conditions encountered in automotive applications.

The device supports a wide operating temperature range from -40°C to 70°C, allowing for consistent function across varied ambient environments. Its flange mount type ensures secure and straightforward installation in vehicle battery systems.

Compact dimensions (Height 103mm, Width 105.5mm, Depth 62mm) enable integration into constrained spaces without compromising on durability, which supports more than 50 mating cycles.

The EV service disconnect meets relevant safety and quality standards, including USCAR-2, USCAER-37, and LV-215, confirming its suitability for automotive electrical connector applications. The orange color coding aids in visual identification to enhance safety protocols.

Durability of over 50 mating cycles. High degree of ingress protection (IP67, IP69K) ensuring robust sealing. Operating temperature range from -40°C to 70°C for versatile applications. Manual service disconnect with HVIL for enhanced battery safety.

Flange mounting for secure installation in battery pack systems. Compliant with USCAR-2, USCAER-37, and LV-215 standards. Compact dimensions facilitate easy integration into electric vehicle battery systems. Ideal for plug-in hybrid electric vehicle (PHEV) charging and maintenance use.

Orange color for clear visual safety identification. Renewable energy solution supporting better environmental sustainability.

This Amphenol Industrial MSDM5002 EV service disconnect is a reliable component for automotive electrical connectors, contributing to safe and efficient operation of electric vehicle battery systems. It is especially useful in industrial, automotive manufacturing, and electric vehicle service environments. For further related products, please explore EnvMart’s extensive EV Service Disconnect category for comprehensive connector solutions.
