Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack 690V 100A Mini MSD MINIMSDM100

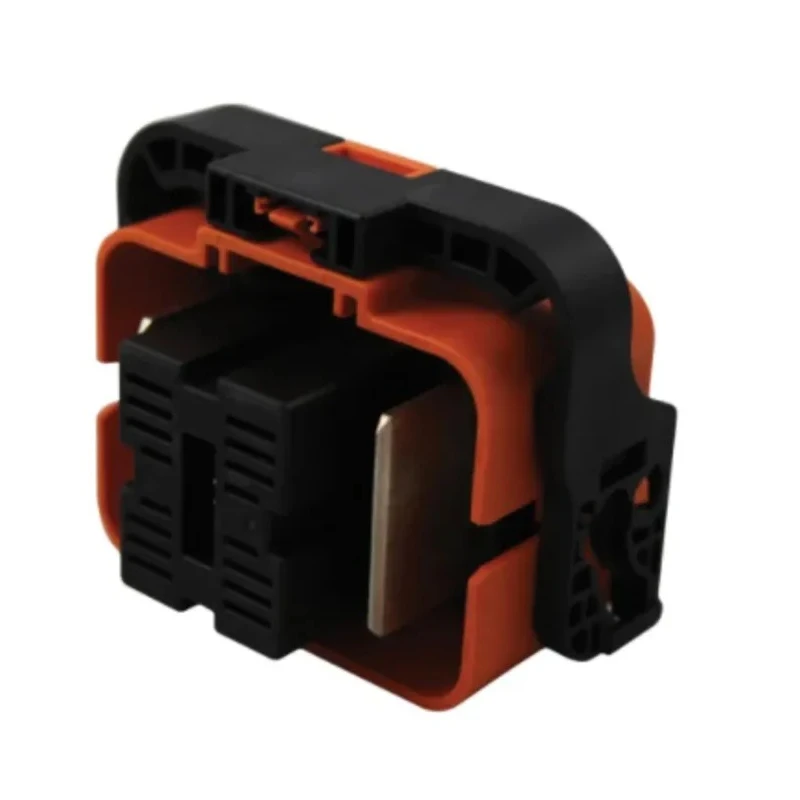

Amphenol Industrial MINIMSDM100 Plug-In EV Service Disconnect Mini MSD is engineered for use with high voltage (690V) battery packs in Plug In Hybrid Electric Vehicles (PHEV). It provides a safe and reliable method for disconnecting internal high voltage circuits without specialized tools, enhancing battery protection against short circuits. The integrated High Voltage Interlock Loop (HVIL) includes a two-stage lever mechanism that ensures the HVIL circuit opens before the high voltage contacts separate, improving operator safety.

This mini manual service disconnect features an IP69K and IP67 rated enclosure, granting excellent protection against dust, water jets, and high pressure washing, making it suitable for demanding automotive and industrial environments.

The product uses a flange mount type and a straight orientation for simplified installation and maintenance. Its compact size (91mm width, 73.5mm height, and 47.9mm depth) offers a cost-effective alternative to standard MSDs, facilitating integration into tighter spaces.

Manufactured in orange color for easy identification, the connector and contact genders are both male, designed for plug-in termination method. Durability is certified for over 50 mating cycles, assuring long service life. Operating temperature spans from -40°C to 70°C to support extreme temperature conditions encountered in automotive applications.

Compliance with industry standards USCAR-2, USCAER-37, and LV-215 underscores the product's reliability and safety. This MSD is part of Amphenol Industrial's commitment to renewable energy solutions within the automotive sector.

Integrated internal HVIL enhances safety during service. Cooling structure and dual-channel design reduce temperature rise. Receptacle supports front or rear mounting for installation flexibility. High ingress protection (IP69K, IP67) against harsh environments.

Compact flange mount simplifies installation in battery systems. Durable connector rated for more than 50 mating cycles. Operating temperature range ensures performance in extreme climates. Meets USCAR-2, USCAER-37, and LV-215 automotive standards.

Suitable for high voltage battery disconnect applications. Supports sustainable automotive energy management solutions.

This product is ideal for industrial, automotive, and renewable energy applications where safe high voltage battery disconnection is essential. It supports maintenance and safety operations in electric and hybrid vehicles, ensuring compliance with stringent safety standards. Browse our offering for more certified electrical connectors used in EV service and power distribution at EnvMart.
