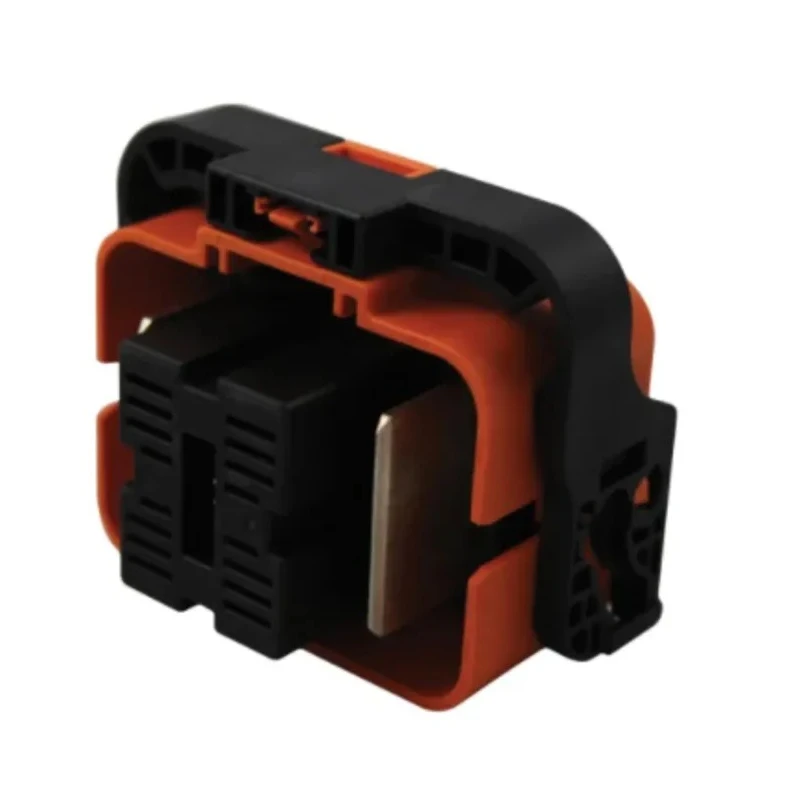

Amphenol Industrial EV Service Disconnect Manual Plug-In Connector 690V 350A Flange Mount MSDM3502

Amphenol Industrial MSDM3502 EV Service Disconnect manual plug-in connector is designed specifically for high voltage battery pack applications in plug-in hybrid electric vehicles (PHEV). This connector supports a current rating of 350 amperes and operates at voltages up to 690 volts, offering a safe and efficient disconnect solution for internal high voltage battery packs without requiring specialized tools.

The device features a flange mount type configuration with precise dimensions: height of 103 mm, depth of 62 mm, and width of 105.5 mm. The orange-colored manual service disconnect connector includes a straight orientation and plug-in termination method to ensure easy, reliable mating and disengagement.

With ingress protection ratings of IP69K and IP67, the connector is highly resistant to water and dust intrusion, making it suitable for demanding industrial and automotive environments. Its durability exceeds 50 mating cycles, providing long-term operational confidence.

The connector is equipped with a high voltage interlock loop (HVIL) featuring a two-stage lever mechanism to open the HVIL circuit before disconnecting high voltage contacts. This design helps protect the battery from short circuits and enhances operator safety during maintenance.

Operational temperature ranges from a minimum of -40°C to a maximum of 70°C, allowing use in various climatic conditions. The product adheres to industry standards including USCAR-2, USCAER-37, and LV-215 ensuring compliance and compatibility with automotive electrical systems.

Manufactured in Germany, the Amphenol Industrial MSDM3502 EV Service Disconnect combines quality craftsmanship with renewable energy solutions and reliable performance. It is an ideal choice for industrial, automotive, and renewable energy systems requiring safe and efficient high voltage service disconnects.

Choose Amphenol Industrial products for dependable electrical connectors designed for the evolving demands of electric vehicle battery management and other high voltage applications. Explore related connectors and components in the Electronics & Electricals category at EnvMart.

Supports a current rating of 350A for high-performance charging. Operates at a maximum voltage of 690V suitable for PHEV battery packs. Flange mount type with a compact design measuring 103mm height, 62mm depth, and 105.5mm width.

Offers IP69K and IP67 ingress protection ratings for robust environmental sealing. Manual service disconnect with a straight orange connector and plug-in termination method. Durable for over 50 mating cycles ensuring long-term reliability.

Operates safely in temperatures ranging from -40°C to 70°C. Incorporates High Voltage Interlock Loop for battery protection and safe disconnection. Complies with industry standards USCAR-2, USCAER-37, and LV-215. Manufactured in Germany to ensure quality and performance.
