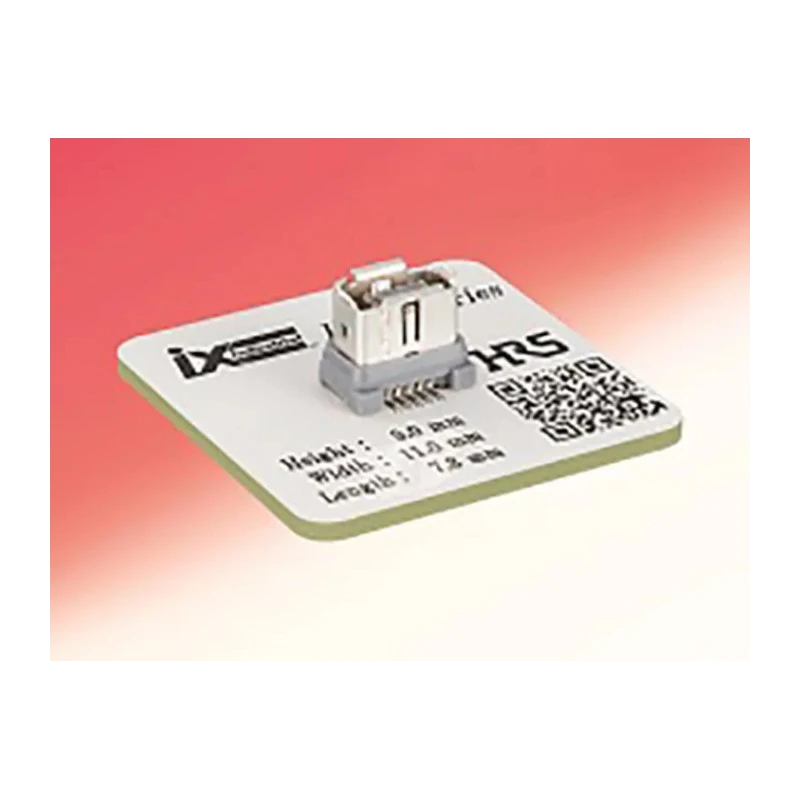

Hirose IX Surface Vertical Mini I/O Connector Female 10 Way Shielded IX80G-A-10P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Colour | Grey |
| Orientation | Vertical |
| Height | 9mm |
| Model | IX80G-A-10P |
| Depth | 7.8mm |
| Connector Type | Jack |
| Number Of Ways | 10 |
| Width | 11mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | IX |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Interfaces | Ethernet performance |
| Shield Type | Shielded |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The connector offers significant size reduction by 75% compared to conventional RJ-45 solutions.
- It features a single action lock with audible click for secure and easy plug insertion and removal.
- The metal parts are made of stainless steel enhancing mechanical strength and resistance to wrenching forces.
- Optimized shielding design ensures high EMC resistance to safeguard data transmission.
- Supports Cat.5e and Cat.6A Ethernet high-speed transmission up to 10Gbps.
- PIP (Pin-In-Paste) mounting technology allows strong PCB shell mounting and efficient board processing.
- Constructed with liquid crystal polymer housing and copper alloy contacts for durability.
- Compact dimensions measuring 11mm width, 9mm height, and 7.8mm depth.
Product Description
Hirose IX80G-A-10P is a high-quality Mini I/O Connector designed for surface mounting with vertical orientation. This 10-way, shielded female jack connector provides compact and reliable interconnection solutions, specifically engineered for demanding industrial and networking environments.
The connector reduces size by 75% versus conventional RJ-45 modules, enabling reduced installation space and allowing parallel mounting at 10mm pitch. Its single action lock design delivers secure locking with an audible click, while a push-button release facilitates smooth disconnection. Constructed with stainless steel metal parts, its assembly enhances resistance against wrenching forces, preserving contact integrity and signal quality.
Equipped with liquid crystal polymer housing and copper alloy female contacts, the IX80G-A-10P assures long-lasting mechanical and electrical performance. The optimized shielding design provides excellent electromagnetic compatibility (EMC) resistance, critical for safe and interference-free data transmission in industrial network applications.
Supporting Cat.5e and Cat.6A Ethernet standards, it can transmit data at speeds up to 1Gbps and 10Gbps respectively, making it suitable for high-speed communications. Pin-In-Paste (PIP) mounting technology strengthens PCB attachment and facilitates efficient surface mount assembly processes.
The connector's compact dimensions are 11mm width, 9mm height, and 7.8mm depth, with a grey color housing suitable for industrial equipment. Compatible with solder termination type and designed for robust use in network & telecom connector categories.
Widely applied in industrial Ethernet, telecommunications, automation, and instrumentation sectors requiring shielded connectivity.
With Hirose’s IX80G-A-10P Mini I/O Connector, engineers and designers benefit from compact form factor, mechanical robustness, and high data rate capabilities in a single reliable component.
Explore more Mini I/O Connectors and Hirose brand products at EnvMart for comprehensive industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports Cat.5e and Cat.6A Ethernet standards, enabling data transmission speeds of up to 1Gbps and 10Gbps, respectively.
The compact dimensions of this connector are 11mm in width, 9mm in height, and 7.8mm in depth.
It features a housing made of liquid crystal polymer and copper alloy contacts, with metal parts constructed from stainless steel for enhanced mechanical strength.
This connector is designed for surface mounting with a vertical orientation, utilizing Pin-In-Paste (PIP) mounting technology for strong PCB attachment.
It is a shielded female jack connector with 10 ways, suitable for various networking applications.
It features a single action lock with an audible click for secure and easy plug insertion and removal, along with a push-button release for smooth disconnection.
The connector is designed for vertical orientation, allowing for efficient use in compact spaces.
Yes, it is widely applied in industrial Ethernet, telecommunications, automation, and instrumentation sectors requiring shielded connectivity.
The IX80G-A-10P uses a solder termination type, ensuring a secure connection to the PCB.
The housing of this connector is grey, suitable for industrial equipment.
This connector is manufactured in India.
The optimized shielding design provides high electromagnetic compatibility (EMC) resistance, safeguarding data transmission from interference in industrial environments.
