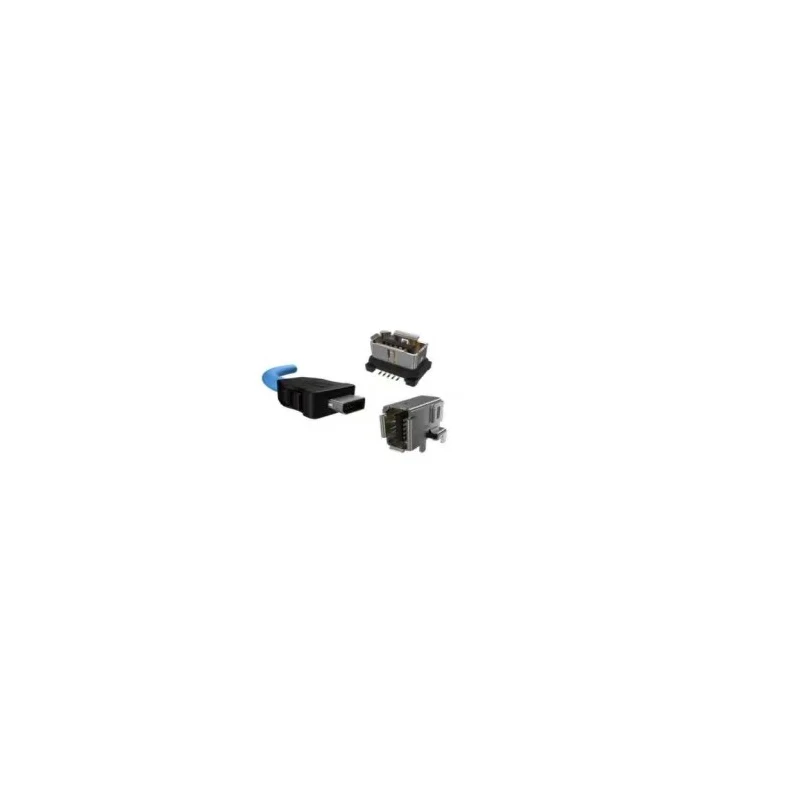

Amphenol Communications Solutions IX Through Hole Surface Flag Mini I/O Connector Female Shielded ND9BS1200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Communications Solutions |
| Orientation | Flag |
| Model | ND9BS1200 |
| IP Rating | IP20 |
| Connector Type | Receptacle |
| Mount Type | Through Hole, Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | IX |
| Number Of Ports | 1 |
| Termination Type | Surface Mount |
| Shield Type | Shielded |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- This connector features a through-hole, surface mount type with flag orientation for secure PCB mounting.
- It is female gender with shielded housing made of thermoplastic material providing EMI protection.
- The contact material is copper alloy plated with gold over nickel for reliable electrical performance.
- The connector supports one port with an IP20 rating suitable for indoor industrial environments.
- It provides superior data performance to Cat6A level (10GBASE-T) and is PoE capable for industrial communication systems.
- External shields are stainless steel, nickel plated for plugs or tin plated for receptacles ensuring durability.
- The compact 10mm pitch design with 2-point metal latches allows high port density on PCBs.
- It is suitable for use in factory automation, networking, and IoT sensor/actuator connections.
Product Description
Amphenol Communications Solutions ND9BS1200 represents an advanced IX Through Hole Surface Flag Mini I/O Connector Female Shielded designed for robust industrial and networking applications. This connector is engineered to facilitate IoT connectivity across Ethernet and other industrial protocols from enterprise cloud infrastructure to factory floor sensors and actuators.
The compact 10mm pitch connector size is approximately 25% of a standard RJ45, enabling significantly increased port density and enhanced mating security. The surface mount through-hole mounting with flag orientation ensures secure PCB attachment, while the shielded housing and contacts provide comprehensive EMI protection with 360° shielding in the mated pair.
Constructed with a thermoplastic housing rated UL94V-0, and high-quality copper alloy contacts plated with gold over nickel in the mating area, the connector guarantees reliable mechanical and electrical performance. It supports data rates meeting Cat6A standards up to 10GBASE-T and is PoE capable, making it ideal for high-speed industrial networks.
The connector incorporates stainless steel external shields which are nickel plated for plugs and tin plated for receptacles for extended durability. Due to its IP20 rating, this connector is best suited for protected indoor industrial environments.
This product is highly suitable for industrial automation, manufacturing facilities, network communication equipment, and IoT device interconnections where compact size and high performance connectivity are critical.
This Mini I/O Connector features shielded housing for EMI protection. Through Hole and Surface Mount compatible with secure flag orientation. Female contact gender made of copper alloy with gold plating. Supports Cat6A 10GBASE-T data rates and PoE power delivery.
High port density design with metal latches for secure mating. Thermoplastic housing material complies with UL94V-0 standard. IP20 rated for industrial indoor use. Manufactured in China adhering to industrial quality standards.
The ND9BS1200 model from Amphenol Communications Solutions enhances connectivity solutions in industrial and commercial network equipment. Browse EnvMart's extensive range of connectors and related components for optimal industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data rates meeting Cat6A standards up to 10GBASE-T, making it suitable for high-speed industrial networks.
It features a through-hole, surface mount type with flag orientation, ensuring secure attachment to PCBs.
The connector has an IP20 rating, indicating it is suitable for protected indoor industrial environments.
The housing is made of thermoplastic material, while the contacts are copper alloy plated with gold over nickel for reliable electrical performance.
This model supports one port, designed for high port density on PCBs.
It features a shielded housing that provides comprehensive EMI protection with 360° shielding in the mated pair.
The connector has a flag orientation, which aids in secure PCB mounting.
This connector uses a surface mount termination type, enhancing its compatibility with various PCB designs.
The external shields are made of stainless steel, with nickel plating for plugs and tin plating for receptacles.
It is suitable for factory automation, networking, and IoT sensor/actuator connections, where compact size and high performance are critical.
The ND9BS1200 is a female connector, designed for secure mating with compatible devices.
This connector is manufactured in China, adhering to industrial quality standards.
